| SKU:
NR3690DCMKIT1
metabo HPT NR3690DCMKIT1 FRAMING KIT
Earn [points_amount] when you buy this item.
metabo HPT NR3690DCMKIT1 FRAMING KIT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
The metabo HPT NR3690DCMKIT1 FRAMING KIT includes all the necessary tools for a professional framing job. The kit features the NR3690, C1807DAQ4M, CR18DBLQ4m, NR3665DAM, 2 380083M batteries, and a UC18YSL3 charger, providing convenience and efficiency on the job.
PRODUCT OVERVIEW

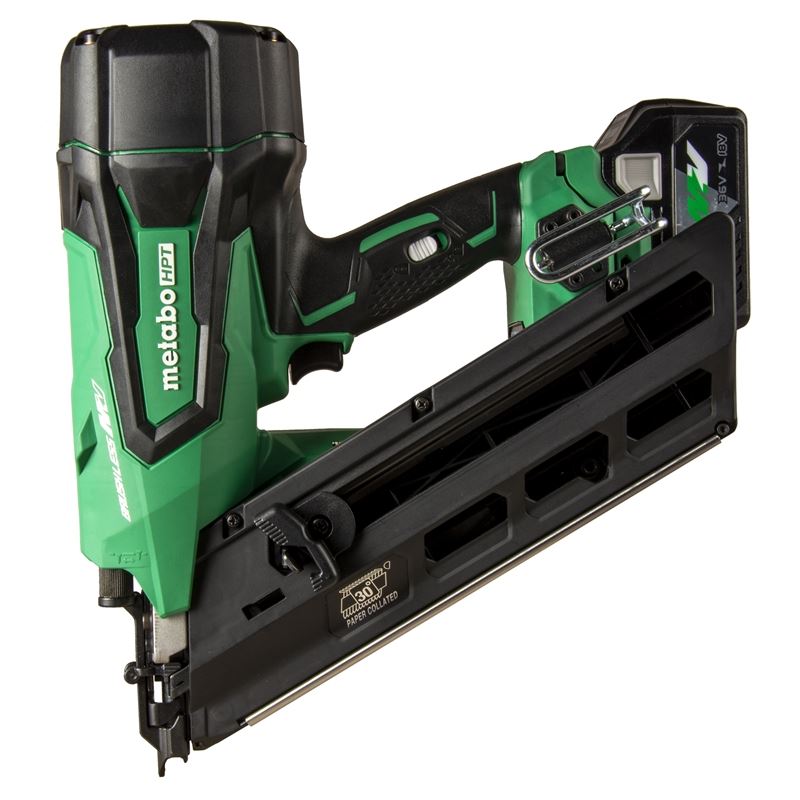

metabo HPT NR3690DCM 30 Degree 36V Cordless Paper Strip Framing Nailer
QTY
1
Thanks to Metabo HPTs unique Air Spring Drive System, this 36V Cordless Clipped Head Framing Nailer delivers a feel and performance similar to that of a pneumatic nailer. The pneumatic-like feel combined with the convenience and power of the MultiVolt battery allows you to work with this cordless nailer all day long, driving clipped or off-set nails from 2in up to 3-1/2in length and 0.113in up to 0.131in in diameter. The included 2.5Ah MultiVolt battery also drives 900 nails per charge.
The Cordless Paper Framing Nailer is part of the expanding MultiVolt system of power tools from Metabo HPT. This nailer accepts any MultiVolt battery for extreme cordless power on the jobsite, and also accepts the unique 36V AC adapter to plug-in and work all day.
- CORDLESS FREEDOM-Pneumatic power with 36V cordless freedom
- DRIVES: Up to 900 nails per charge with the included 2.5Ah MultiVolt battery (UC18YSL3)
- SPEED - Drive 3 nails per second
- PNEUMATIC-LIKE FEEL: Thanks to the unique Air Spring Drive System
- FASTENERS: Accepts 30 degree clipped head or offset round head collated nails from 2 Inch up to 3-1/2 inch in length and 0.113 to 0.131 inch in diameter
- APPLICATIONS: Ideal for all construction framing applications and is particularly useful for punch-out work or remodeling jobs without the need for a tank or hose
- BRUSHLESS MOTOR - More run-time, increased power, and extended durability with essentially no maintenance
- DEPTH ADJUSTMENT - Get a professional finish with varying materials with the tool-less depth of drive adjustment
- ZERO RAMP UP - There is no refilling of the air tank required, so pull the trigger and tool will shoot the nail
| Volts (V) | 36 |
| Battery Type | Li-Ion |
| Motor Type | Brushless |
| Applicable Nails | Diameter (In.).113 -.131 Lengtd (In.) -2in - 3-1/2in |
| Nail Capacity | 47 |
| Nails per Charge(w. 36V 2.5Ah Battery) | 900 |
| Magazine Angle | 30 degrees |
| Nails per second | 3 |
| Magazine Loading | Rear |
| Actuation | Selective |
| Dry Fire Lockout | Yes |
| Deptd Adjustment | Tool-less |
| Jam Clearing | Open Nose |
| Battery Charge Indicator | On-Battery |
| Pivoting Hook | Yes |
| Power Source | Cordless |
| Battery | 36 V |
| Product Type | Framing Nailers |

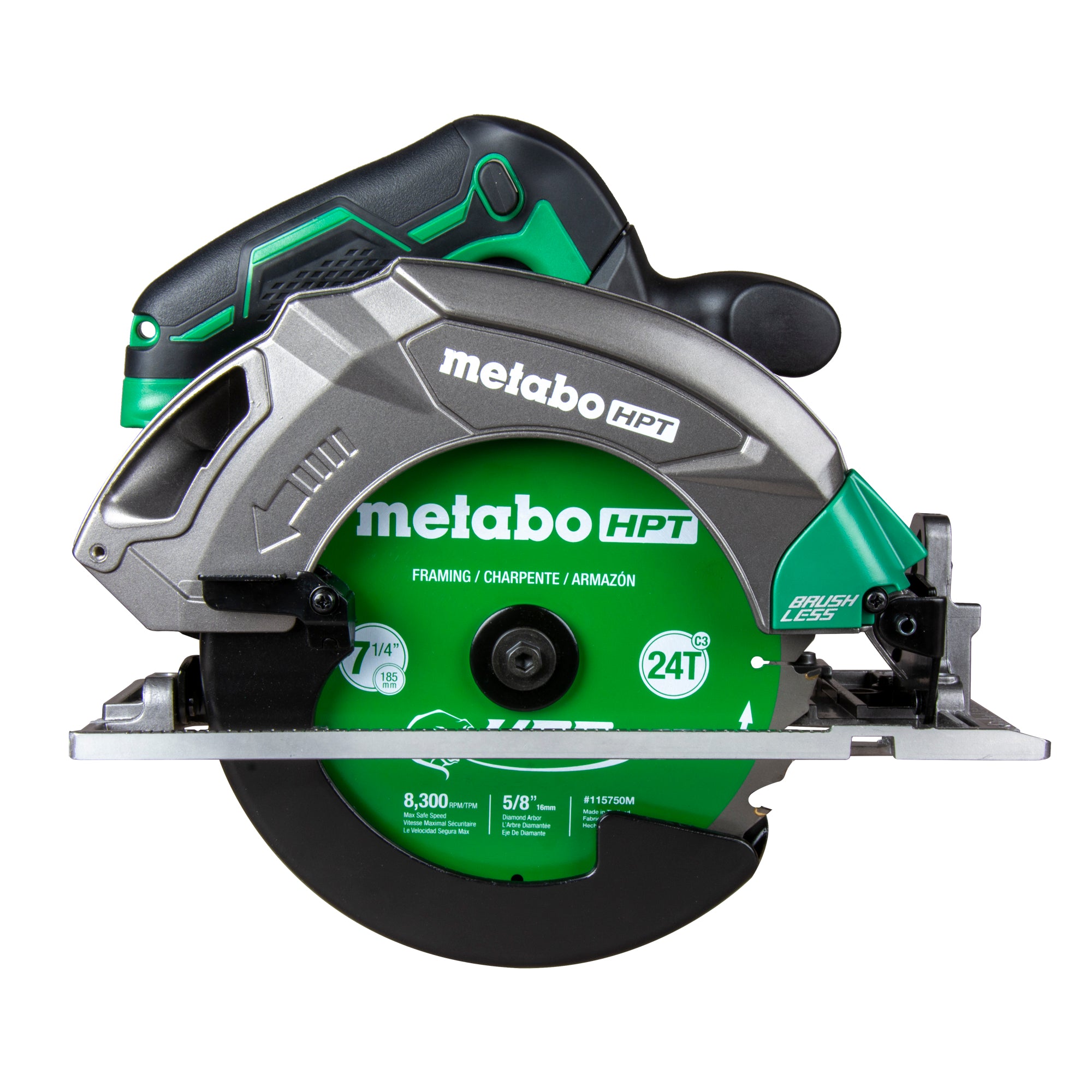

metabo HPT C1807DAQ4M 18V MultiVolt 7-1/4 Inch Cordless Circular Saw (Tool Body Only)
QTY
1
The 18V MultiVolt 7-1/4 Inch Cordless Circular Saw (C1807DAQ4) featuring a new powerful and lightweight design inspired by the needs of the professional. This saw has 40% higher maximum thrust force and a 2-7/16” cutting depth to easily rip through multiple layers of plywood and OSB sheeting. This high torque combined with up to 8% less weight than leading cordless sidewinder circular saws, delivers an astonishing power to weight ratio. This well-balanced saw, combined with Metabo HPT’s signature ergonomics and blade right sight lines, produce an effortless cutting experience and reduced user fatigue.
The efficient brushless motor can be powered by an 18V or 18V/36V MultiVolt battery to provide the torque and RPM needed for jobsite cutting applications. It delivers the power to make up to 200 2x4 cuts per charge. The C1807DAQ4 7-1/4” cordless circular saw features a 55° bevel range, soft start, an electric brake, LED work light, dust blower, on-tool blade wrench, and kickback protection making it an ideal tool for general contractors, carpenters, roofers, framers, siders, concrete form workers, and DIY users. This 18V MultiVolt 7-1/4” cordless circular saw also includes the new VPR 24 tooth framing blade, 5mm hex bar wrench, and a dust collection adapter. This saw is backed by Metabo HPT’s Lifetime Lithium-ion tool body warranty, providing peace of mind for your purchase.
This 18V circular saw is part of the expanding MultiVolt system of power tools from Metabo HPT. GO lighter with 18V batteries or GO longer with the unique MultiVolt battery that works on both 18V and 36V tools for extreme power and runtime.
| Specification | Details |
|---|---|
| Voltage | 18 V |
| Battery Type | Li-Ion |
| Number of Cuts Per Charge | 200* |
| Blade Diameter (in) | 7-1/4" |
| Arbor (in) | 5/8" |
| No-Load Speed Power Mode (RPM) | 3,800 |
| No-Load Speed Silent Mode (RPM) | 2,000 |
| Cutting Capacity 90° (in) | 2-7/16" |
| Cutting Capacity 45° (in) | 1-7/8" |
| Bevel Capacity | 0°-55° |
| Quick Brake | Equipped |
| Kickback Protection | Equipped |
| Dust Blower | Equipped |
| Soft Start | Equipped |
| LED Light | Equipped |
| Dimension Length (in) | 12-1/2" |
| Tool Weight (Tool Only) | 7.3 lbs |
| Warranty | Lifetime Tool Body |

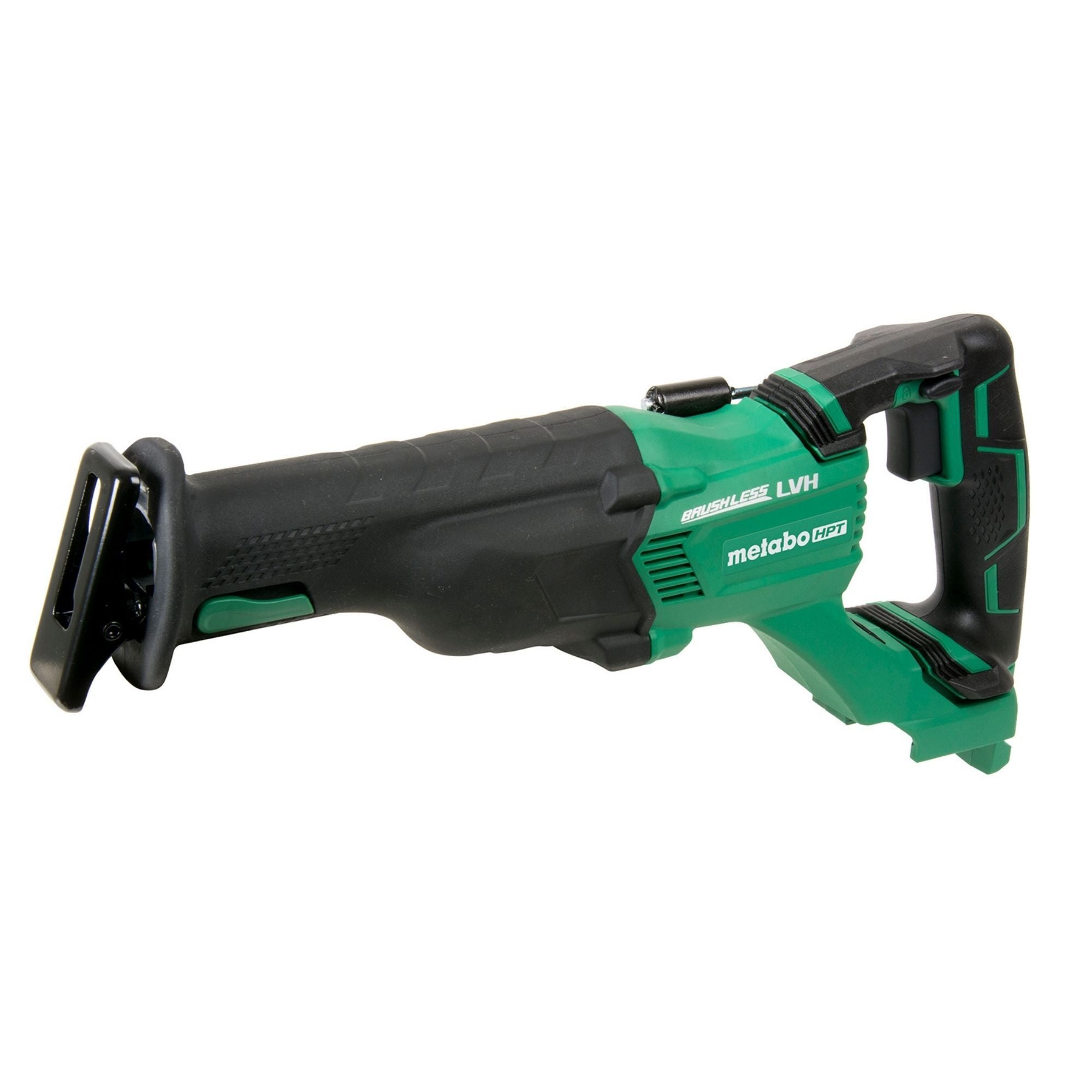

metabo HPT CR18DBLQ4M 18V Brushless Reciprocating Saw (Tool Body Only)
QTY
1
The Metabo HPT 18V Cordless Reciprocating Saw (CR18DBLP4). This reciprocating saw features a brushless motor and constant speed control to deliver remarkable performance and tool life. With an impressive stroke length of 1-17/64-In and up to 2,500 SPM, this light weight tool takes cutting speed to the next level. In addition, it has convenient features such as slim front body, lever-type tool-less blade changing system, lever-type tool-less shoe adjustment system, three speed modes with auto mode, big hook, and Bright LED light. The CR18DBLP4 kit comes with a curved wood blade and the tool is covered by Metabo HPT's lifetime tool warranty!
| Feature | Specification |
|---|---|
| Volts | 18V |
| Motor | Brushless |
| Stroke Length | 1-17/64" |
| Variable Speed | Trigger |
| Stroke Speed- Low | 0-1,600 SPM |
| Stroke Speed- Medium | 0-2,300 SPM |
| Stroke Speed- High | 0-2,500 SPM |
| Stroke Speed- Auto | 0-1,600 to 2,500 SPM |
| Cut Capability- Mild Steel Pipe | 5" |
| Cut Capability- Vinyl Chloride Pipe | 5" |
| Cut Capability- Wood | 4-23/32" |
| Cut Capability- Mild Steel Plate | 3/4" |
| Anti-Vibration | LVH (Low Vibration Handle) |
| Constant Speed Control | Yes |
| Blade Change | Tool-less |
| Shoe Adjustment | Tool-less |
| Tool-less Blade Change | Yes |
| Soft Grip Handle | Yes |
| Battery Power Indicator | On-Tool |
| Battery & Charger Included | No |
| Rafter Hook | Yes |
| LED Light | Yes |
| Weight (w/out battery) | 6.0 lbs |

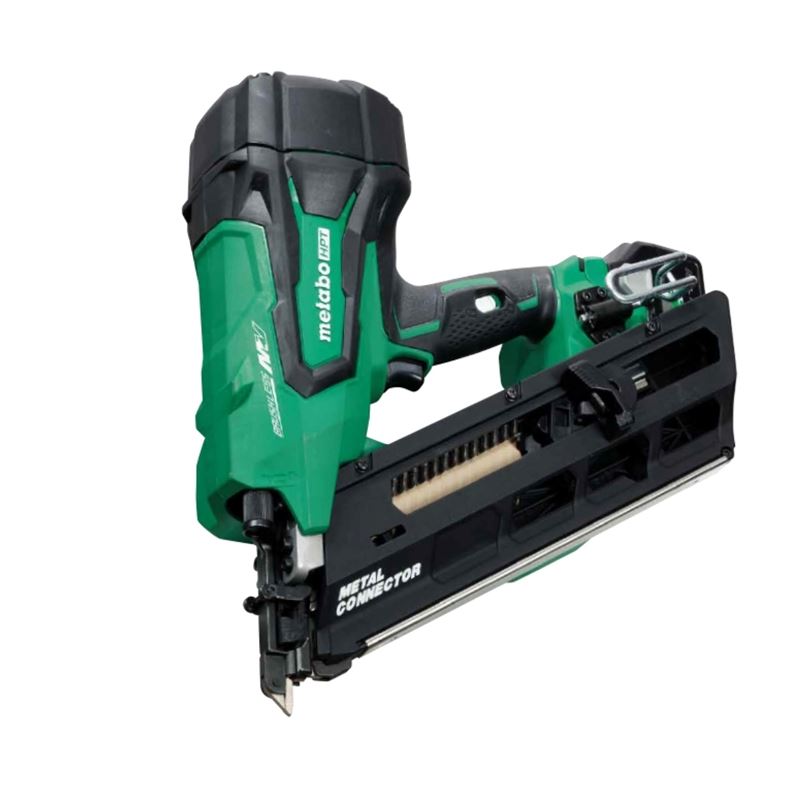

metabo HPT NR3665DA 36V Cordless Metal Connector Nailer
QTY
1
The Strap-Tite Probe Tip allows for precise placement of every nail saving you money and valuable time. Thanks to Metabo HPTs unique Air Spring Drive System that produces a similar feel like using a pneumatic nailer, combined with the power of the MultiVolt 36V battery, this cordless Metal Connector nailer works all day long driving 1-1/2in and 2-1/2in nails up to 0.162in in diameter. Get 900 2-1/2in x 1.162in nails per charge with the included 2.5 Ah MultiVolt 36V battery.
- CORDLESS FREEDOM - Pneumatic power with 36 volt cordless freedom
- POWER - Drives 900 nails per charge using MultiVolt 36V 2.5 Ah Li-ion battery
- FASTENERS - Accepts 35 degree 1-1/2in and 2-1/2in nails up to 0.162in in diameter
- APPLICATIONS - For fastening various types of pre-punched hole metal connectors to wood
- STRAP-TITE PROBE TIP - Easily set tip of nailer at the hole in the metal connector
- INCLUDES - 2.5Ah MV Lithium Ion Battery, Fast Charger, Contractor Bag, and Belt Hook
- BRUSHLESS - Technology for higher efficiency, increased run time and longer tool life
- MULTIVOLT TECHNOLOGY - Easily switch between a MultiVolt 36V battery or the MultiVolt AC adapter (sold separately)
- COMFORT - Ergonomic soft grip handle for comfort
| Voltage | 36V |
| Battery Type | 36V Litdium Ion Slide Type |
| Battery Amp Hour | 2.5 Ah |
| Battery Included | 1 |
| 36V MultiVolt AC Adapter | Compatible (Not Included) |
| Applicable Nails | Metal connector nail 35 degree 1-1/2in and 2-1/2in nails up to 0.162in in diameter |
| Nail Capacity | 31 nails |
| Nails Per Charge (2.5 AhhBattery) | 900 |
| Power Source | Cordless |
| Magazine Angle | 36 degrees |
| Driving Speed | 2 nails per second |
| Actuation | Full sequential |
| Metdod of Positioning | Probe |
| Deptd Adjustment | Not provided |
| Dry-fire lockout | Provided |
| Dimensions L x H x W | 12-25/32in x 13-5/8in x 5in |
| Weight (w/ 2.5Ah Battery) | 10.6 |
| Battery | 36 V |
| Product Type | Metal Connector |

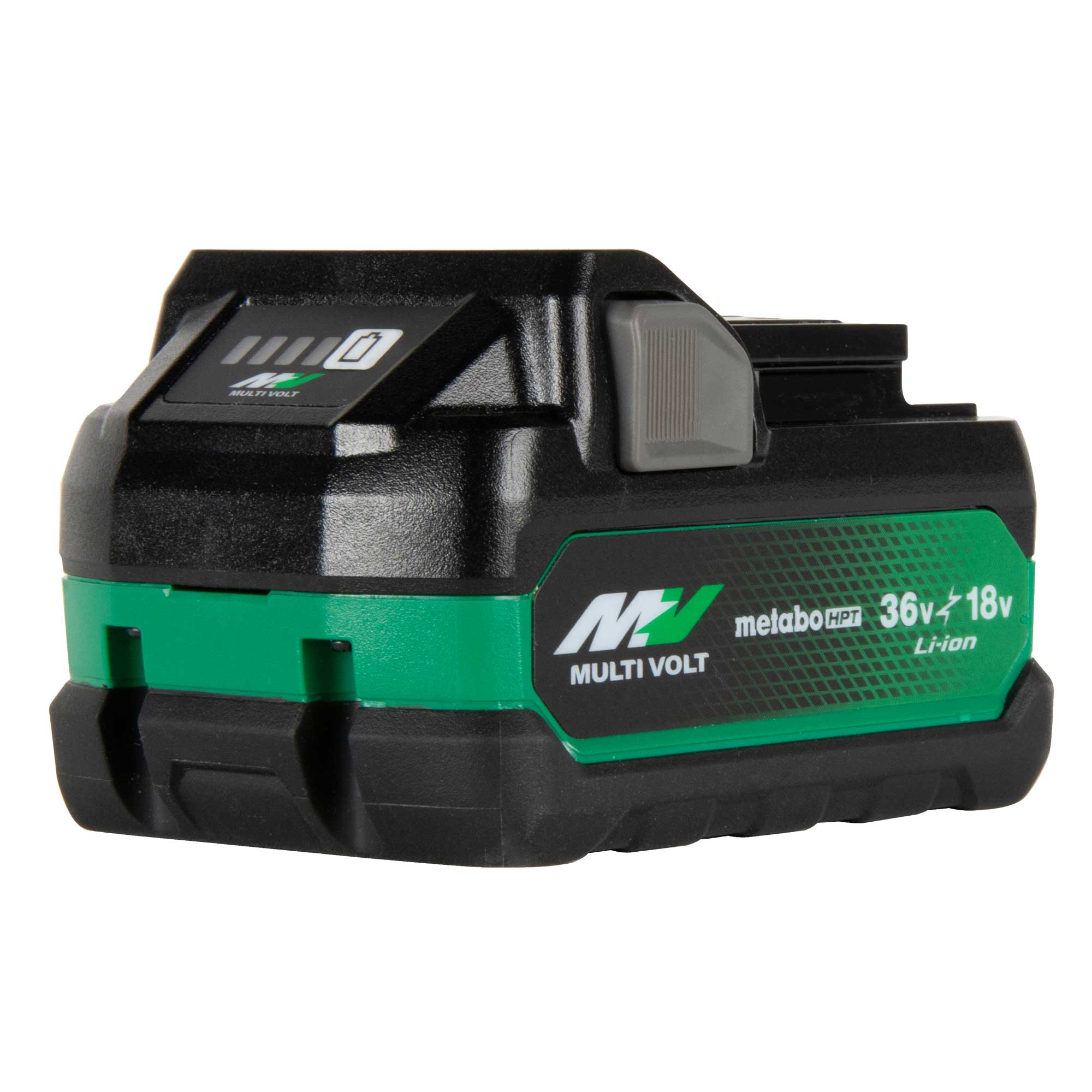

metabo HPT 380083M 18V/36V (5.0AH/2.5AH) MULTIVOLT™ LITHIUM ION WATER & IMPACT RESISTANT BATTERY
QTY
2
The MultiVolt Lithium Ion Water & Impact Resistant Battery (Model BSL36A18X/ part #380083M) is the next generation of high power Metabo HPT MultiVolt batteries to fuel our expanding line of 18V & 36V tools. For better defense against moisture related short circuiting, a waterproof barrier exists for the internal cell terminals and twin exit ports for water that gets inside the battery pack. To lessen damage from drops and rough use on the job site, an impact resistant protective layer provides 15% more shock absorption and a longer battery life than previous models. It has a 5.0Ah capacity when used with 18V tools and 2.5Ah capacity when used with 36V tools and features a battery fuel gauge for user convenience. The innovative design of this MultiVolt battery helps prevent overheating when pushed to the limit, and works at temperatures as low as 14°F (-10°C).
The MultiVolt Lithium Ion Battery platform changes what's possible on the jobsite by offering the power of a corded tool, the freedom of a cordless platform and the choice to operate all Metabo HPT cordless tools.
The 18V/36VMultiVolt Water & Impact Resistant battery comes with a 2 year warranty. Every Metabo HPT battery is designed to the highest standards and is rigorously tested for both performance and durability.
| Voltage | 18V/36V |
| Amp Hour | 5.0Ah/2.5Ah |
| Battery Type | Li-Ion |
| Fuel Gauge | Equipped, 4-Stage |
| Easy Release | Yes |
| MultiVolt | Yes |
| Water Resistant | Yes |
| Impact Resistant | Yes |
| Weight | 1.8lbs |

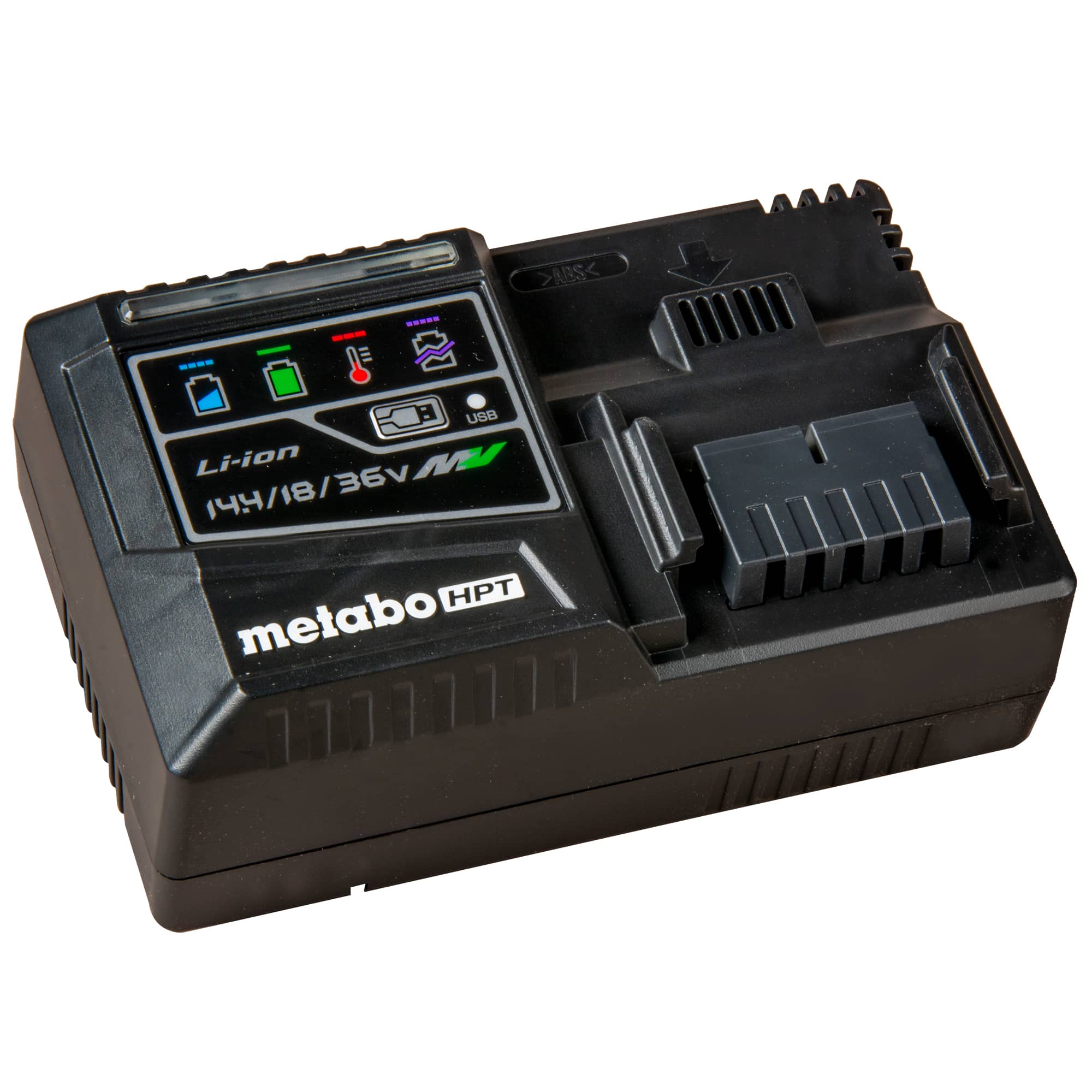

metabo HPT UC18YSL3 18V/36V Volt Lithium Ion Rapid Charger
QTY
1
he 18V/36V Lithium Ion Slide Battery Rapid Charger (UC18YSL3) is a powerful charger for all Metabo HPT 18V/36V slide-type cordless tools. It comes with a color light indicator to clearly indicate the stage of battery charge. The UC18YSL3 charger is warrantied to the original purchaser to be free from defect in materials and workmanship for a period of 1-year from the original purchase date.
| Specification | Details |
|---|---|
| Part Number | Charger UC18YSL3 |
| Item Weight | 1.3 lbs |
| Voltage | 14.4 Volts-18 Volts & MultiVolt (36V) |
| Item Package Quantity | 1 |
| Battery Cell Type | Lithium Ion |
| Charging time BSL1815X | 15 min |
| Charging time BSL1830C | 30 min |
| Charging time BSL1860 | 38 min |
| Charge time BSL36B18 | 52 min |
| Charging Current | 8.0 A |
| Input Power Source | Single phase AC 120V |
| Warranty | 1-Year |
