Freud | 42-204 3/4 (Dia.) Downshear Helix Flush Trim Bit
Earn [points_amount] when you buy this item.
Freud | 42-204 3/4 (Dia.) Downshear Helix Flush Trim Bit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
42-204 3/4 (Dia.) Downshear Helix Flush Trim Bit:
Downshear Cutting Angle Produces a Slicing Action for Chip-Free, Splinter-Ree Cuts on the Top Surface of Laminates and Veneers.
Item Number: 42-204

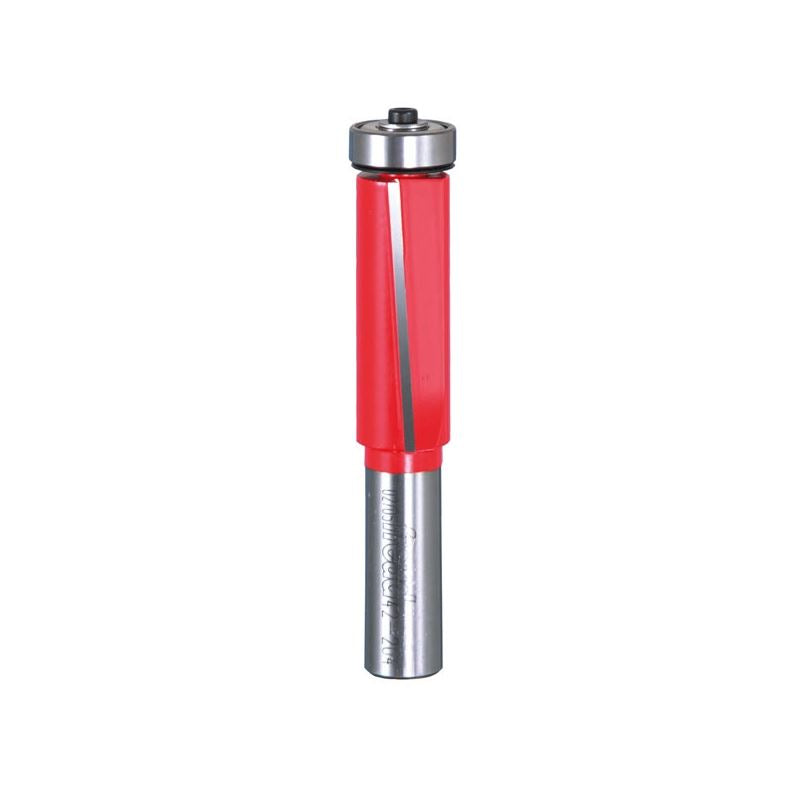

3/4 (Dia.) Downshear Helix Flush Trim Bit with 1/2 Shank
- Ideal For: Heavy Duty Trimming and Pattern Work
- Machine Use: Router
- Materials: Wood

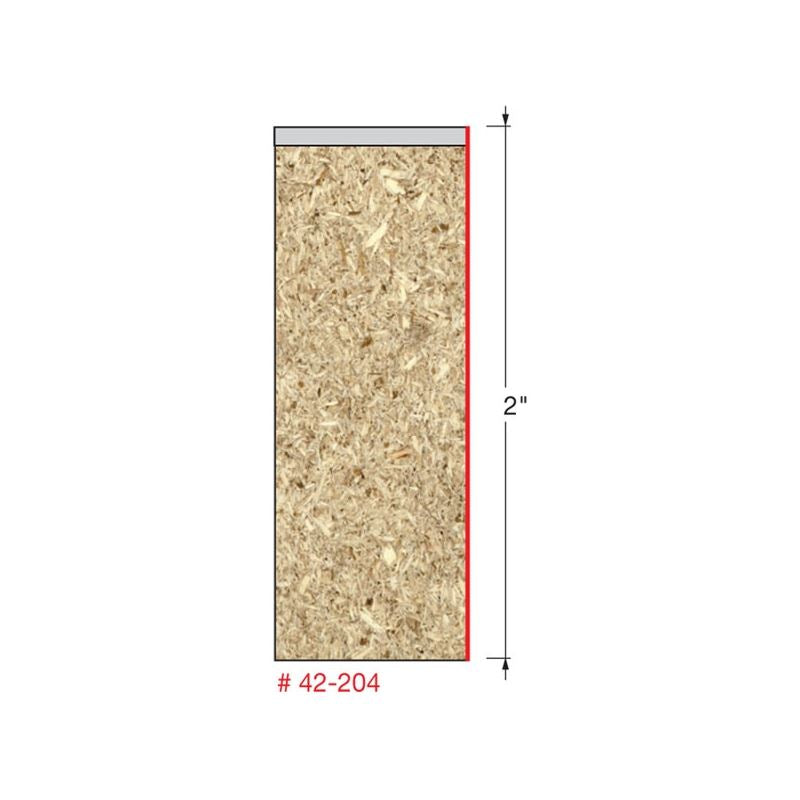

| Overall Diameter | Bearing Diameter | Carbide Height | Angle | Shank Diameter | Overall Length |
| 3/4" | 3ee4" | 2" | - | 1/2" | 4-1ee8" |
features:
The Shear Action Also Delivers Easier, Smooth Cuts in Thick Materials.
The 3/4 Diameter Body and Full 1 or 2 Cutting Length Provide the Stability and Cutting Capacity for Thick Stock or for Routing Multiple Parts with a Template.
Cuts All Composition Materials, Plywoods, Hardwoods, and Softwoods.
Use on Portable or Table-Mounted Routers for Template Work.
Specifications
Freud | 42-204 3/4 (Dia.) Downshear Helix Flush Trim Bit
42-204 3/4 (Dia.) Downshear Helix Flush Trim Bit:
Downshear Cutting Angle Produces a Slicing Action for Chip-Free, Splinter-Ree Cuts on the Top Surface of Laminates and Veneers.
Item Number: 42-204
3/4 (Dia.) Downshear Helix Flush Trim Bit with 1/2 Shank
- Ideal For: Heavy Duty Trimming and Pattern Work
- Machine Use: Router
- Materials: Wood
| Overall Diameter | Bearing Diameter | Carbide Height | Angle | Shank Diameter | Overall Length |
| 3/4" | 3ee4" | 2" | - | 1/2" | 4-1ee8" |
