Hitachi  |  SKU: C10FSHC

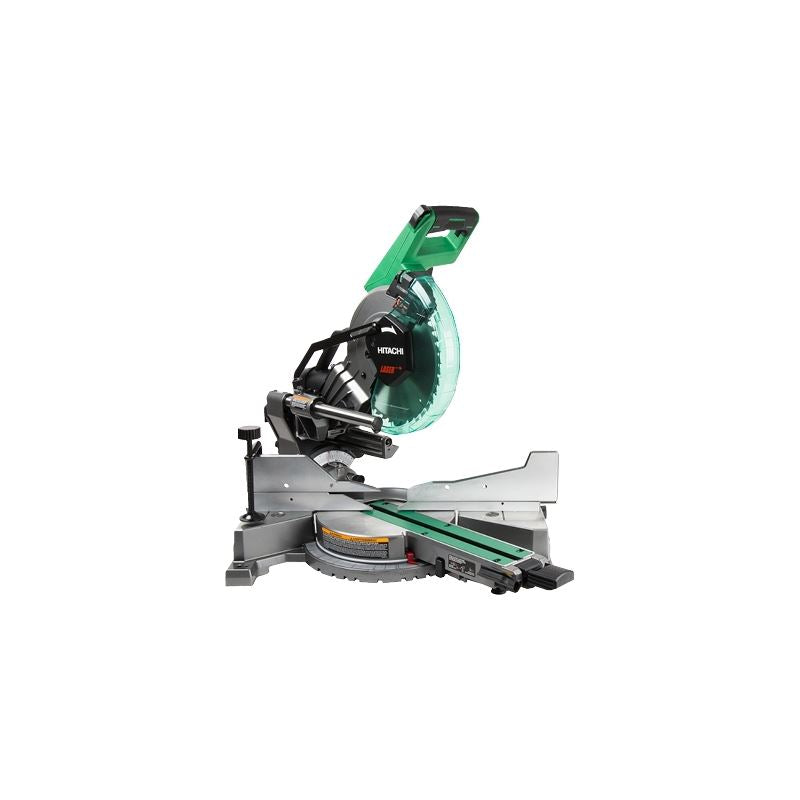

Hitachi C10FSHC 10" Sliding Dual Compound Miter Saw with Laser Marker

$399.00 CAD
Shipping calculated at checkout.

Earn [points_amount] when you buy this item.


Description

he Hitachi C10FSHC 10" Sliding Compound Dual Bevel Miter Saw with Laser Marker is designed to deliver a professional finish. It is equipped with a zero rear clearance slide system that decreases the footprint of the saw by up to a foot, enabling the saw to sit flush against a wall or on a benchtop without compromising the range of movement. The C10FSHC also features Hitachi’s first up-front bevel lock for quick and easy bevel adjustments along with miter detent override for faster transitions between miter angles. The adjustable tool-less laser marker and LED light give the user accurate cuts and visibility right where it’s needed.

Includes:

  • 10" 40T TCT Saw Blade (310878)
  •  Dust Bag (998845)
  • Vise Assembly
  • 13mm Box Wrench (940543


    Specifications
    Blade Size 10"
    Full-Load Current Amps 15
    Slide Type Fixed Rail
    No-Load Speed 3,200/RPM
    Miter Angle Range 0-55 degree L & 0-60 degree R
    Bevel Angle Range 0-48 degree L/R
    Max Cut 0 Degree 11-1/2" x 3-1/2"  12-1/2" x 2-1/2"
    Max Cut Miter Left/Right 45 Degree 8" x 3-1/2"  8-3/4" x 2-1/2"
    Max Cut Bevel Left 45 Degree 11-1/2" x 3-1/4"  12-1/2" x 1-5/8"
    Max Cut Bevel Right 45 Degree 11-1/2" x 1"  12-1/2" x 3/4"
    Laser Marker Equipped
    LED Light Equipped
    Saw Blade Drive System Gear type
    Front Bevel Lock Lever Equipped
    Tool Dimensions ( W x L x H) 23-13/16" x 30-3/16" x 26-1/16"
    Miter Cutting Range L 55 degree R 60 degree
    Bevel Cutting Range L/R 48 degrees
    Weight 45.6 lbs


features:

Zero rear clearance slide system allows the saw head to slide along fixed rails for effortless and smooth movement, while easily fitting on a benchtop without compromising the range of motion
Ergonomic upfront bevel lock for quick and easy adjustments of the bevel angles without having to reach around to the back of the saw
Powerful 15 Amp motor to tackle the toughest cutting jobs with ease
Tool-less laser marker for cutting accuracy that can be easily adjusted to the users preference
Equipped with LED light for added visibility and a safer work environment in low light situations
0-60° miter angle to the right and 0-55°miter angle to the left for ultra-flexibility
0-48 degree bevel angle range to the right & left allows user to quickly and easily flip the saw blade, and leave the material in place
Positive stops with miter detent override can provide faster transitions between miter angles

.

Specifications

Power SourceElectric
