| SKU:
C12RSH2

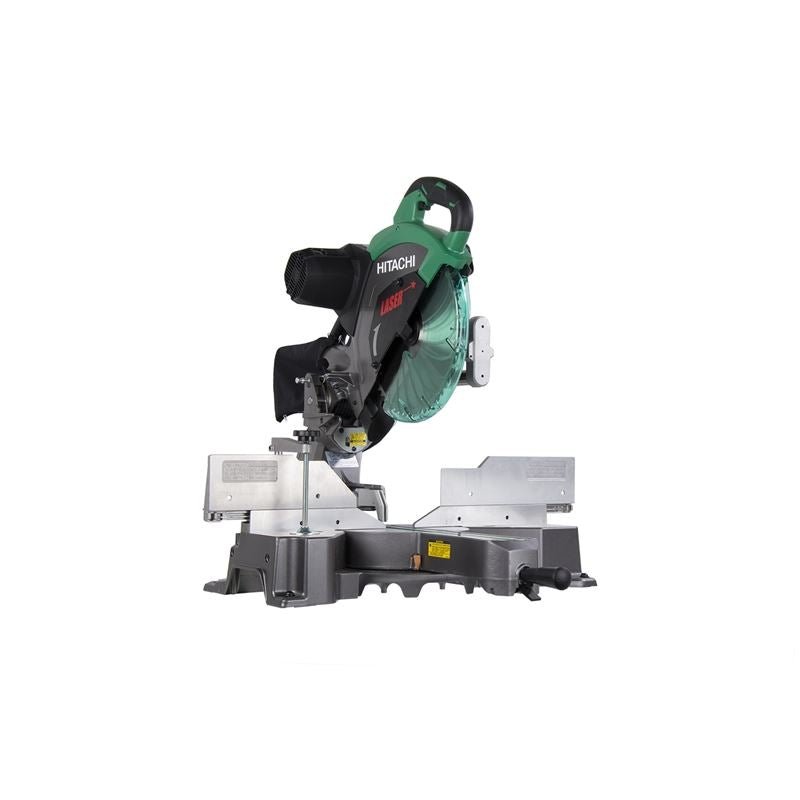

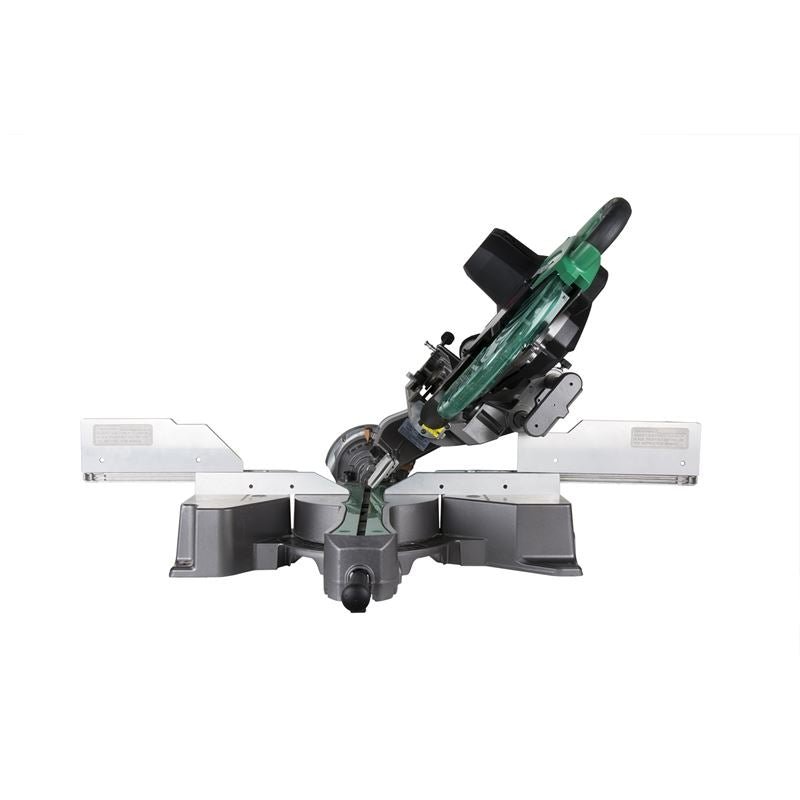

Hitachi C12RSH2 12" Sliding Dual Compound Miter Saw with Laser Marker
Earn [points_amount] when you buy this item.
Hitachi C12RSH2 12" Sliding Dual Compound Miter Saw with Laser Marker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
- Includes:
- 12 inch 60T TCT Saw Blade (726100)
- Dust Bag (322955)
- Vice Assembly (339624)
- 17mm Box Wrench (333732)
Specifications:
Compound Cutting Range
Miter: 0-45 Degree L/ 0-31 Degree R
Bevel: 0-45 Degree L
Miter: 0-31 Degree L/ 0-45 Degree R
Bevel: 0-45 Degree R
Amps 15
No-Load Speed 4,000 RPM
Blade Diameter 12"
Miter Cutting Range 0-45 Degree L; 0-57 Degree R
Bevel Cutting Range Left & Right 0-45 Degree
Positive Miter Stops L/R 0, 15, 22.5, 31.6, 45 Degrees
Laser Marker Yes
Saw Blade Drive System Poly V Belt & Gear
Splinter Guard Provided (Fixed), Tool Dimension WxDxH 25-1/2"x36-5/8"x27-15/16"
Tool Weight 59 lbs
Max Cutting Capacities (HxW):
90 Degree Cross Cut 4-3/16"x12-1/4" or 4-11/16"x10-3/16"
45 Degree Miter (L/R) 4-3/16"x8-5/8" or 4-11/16"x7-1/16"
45 Degree Bevel (L) 2-3/4"x12-1/4" or 2-15/16"x10-3/16"
Compound Cut 45x45 (L/L) 2-3/4"x8-5/8" or 2-15/16"x7-1/16"
features:
Compact slide system allows the saw head to slide along fixed rails, eliminating the need for rear clearance
• Laser marker system from Hitachi increases cutting accuracy
• Powerful 15 Amp motor to tackle tough cutting jobs with ease
• Large sliding fences raise fence height to 5-1/8 inches to cut up to 7-1/2" crown molding vertically
• 0-57 degree miter angle to the right and 0-45 degree to the left for flexibility
• 0-45 degree bevel angle range to the right and left allowing users to quickly and easily flip the saw blade and leave the material in place
• Positive stops and indications on the miter and bevel scale, for easy to read measurements and quick settings
• Carbon brush access, allows the user to replace the brush as needed to greatly prolong tool life
• Vertical handle with soft, vibration reducing elastomer grip adds comfort and control
Specifications
| Power Source | Electric |
|---|
Hitachi C12RSH2 12" Sliding Dual Compound Miter Saw with Laser Marker
- Includes:
- 12 inch 60T TCT Saw Blade (726100)
- Dust Bag (322955)
- Vice Assembly (339624)
- 17mm Box Wrench (333732)
Specifications:
Compound Cutting Range
Miter: 0-45 Degree L/ 0-31 Degree R
Bevel: 0-45 Degree L
Miter: 0-31 Degree L/ 0-45 Degree R
Bevel: 0-45 Degree R
Amps 15
No-Load Speed 4,000 RPM
Blade Diameter 12"
Miter Cutting Range 0-45 Degree L; 0-57 Degree R
Bevel Cutting Range Left & Right 0-45 Degree
Positive Miter Stops L/R 0, 15, 22.5, 31.6, 45 Degrees
Laser Marker Yes
Saw Blade Drive System Poly V Belt & Gear
Splinter Guard Provided (Fixed), Tool Dimension WxDxH 25-1/2"x36-5/8"x27-15/16"
Tool Weight 59 lbs
Max Cutting Capacities (HxW):
90 Degree Cross Cut 4-3/16"x12-1/4" or 4-11/16"x10-3/16"
45 Degree Miter (L/R) 4-3/16"x8-5/8" or 4-11/16"x7-1/16"
45 Degree Bevel (L) 2-3/4"x12-1/4" or 2-15/16"x10-3/16"
Compound Cut 45x45 (L/L) 2-3/4"x8-5/8" or 2-15/16"x7-1/16"
