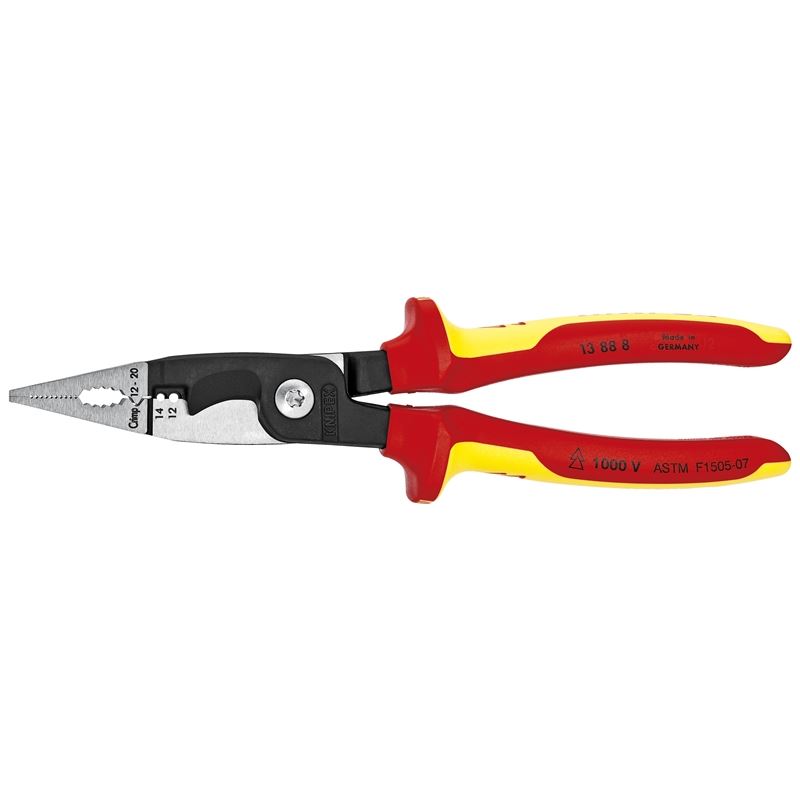

KNIPEX 13 88 8 SBA 8in 6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated
Earn [points_amount] when you buy this item.
KNIPEX 13 88 8 SBA 8in 6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
KNIPEX 13 88 8 SBA 8in 6-in-1 Electrical Installation Pliers 12 and 14 AWG-1000V Insulatedfeatures:
6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs
Smooth surfaces near the tips grip single conductors without damaging them serrated gripping surfaces and pipe grip for gripping flat and round material
Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
Stripping holes for 12 to 14 AWG (0.75 - 1.5 mm and 2.5 mm)
Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 - 2.5 mm)
Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32in dia. (5 x 2.5 mm / dia. 5 mm)
Slim head dimensions for easier access
Bolted joint: precise, zero-backlash operation of pliers
1000V multi-component grips, ASTM F1505-tested
High-grade special tool steel; forged, multi stage oil-hardened
Specifications
| Nominal Length | 8in |
|---|---|
| Tool Width | 2 1/8in |
| Tool Height | 1 1/8in |
| Tool Weight | 0.6 lbs |
| 1000 Volt Insulated | Yes |
| Material Type | High-grade special tool steel, forged, multi stage oil-hardened |
| Gripping Surface | Smooth tip and serrated jaws |
| Surface Finish | Polished |
| Handle Type | 1000V Insulated, multi-component, ASTM |
| Joint Type | Bolted |
| Color | Red/Yellow |
| Cutting Edge Shape | Shear |
| Cutting Capacity - Cu and Al conductor | 9/16in |
| Jaw Type | Flat |
| Stripping Capacity - AWG | 14 and 12 |
| Crimping Positions | 1 |
| Terminal Type | End Ferrules-Long/End Ferrules-Single/End Ferrules-Single (Insulated) |
| Crimping Capacity | 20 to 12 |
