Makita DWD181ZJ 18V LXT Cordless Wall Scanner (Tool Only)
Earn [points_amount] when you buy this item.
Makita DWD181ZJ 18V LXT Cordless Wall Scanner (Tool Only) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

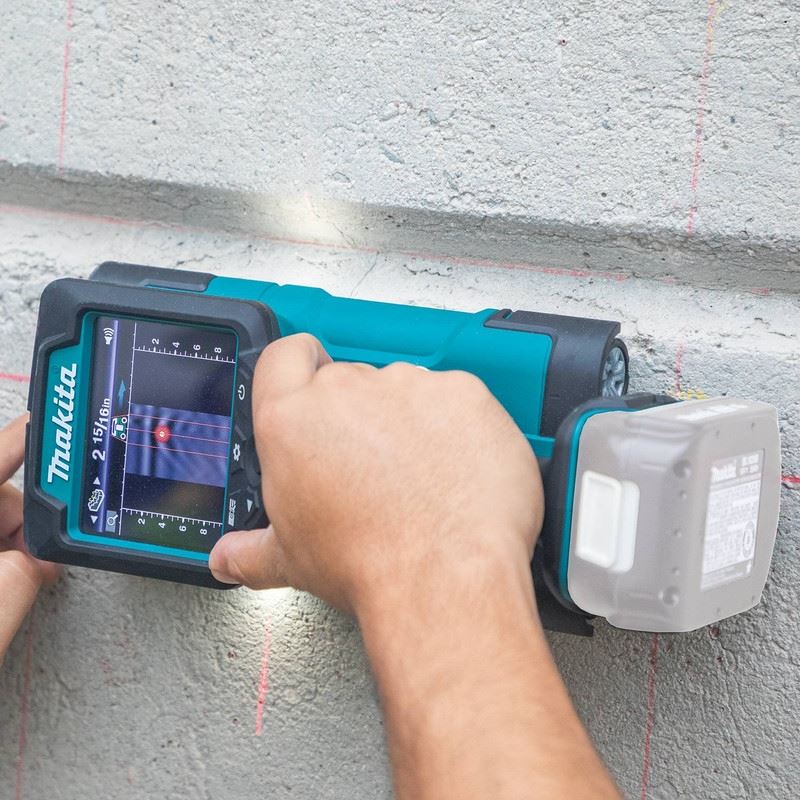

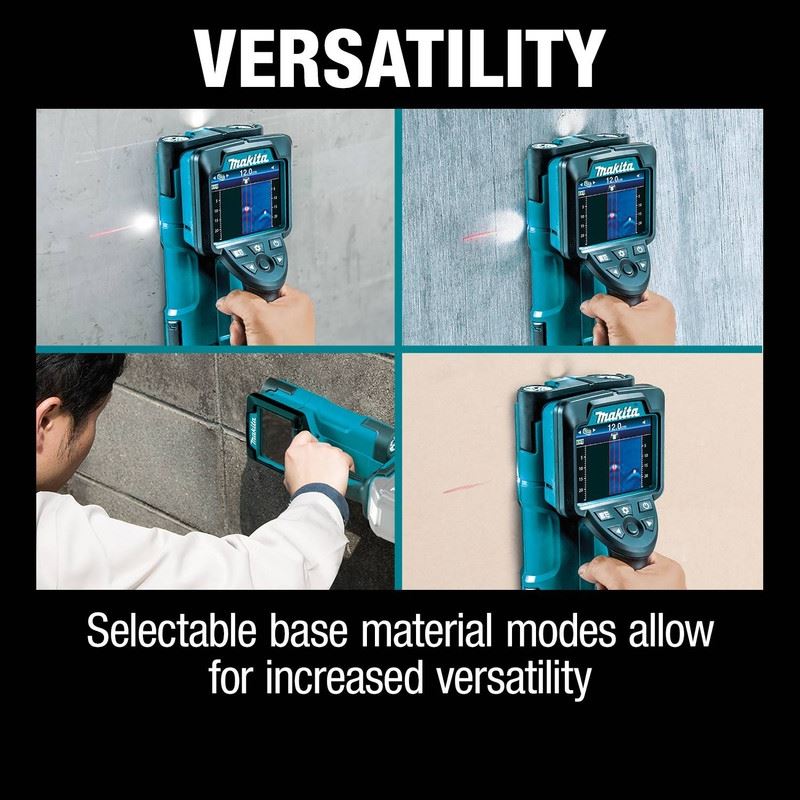

The 18V LXT Cordless Multi-Surface Scanner (tool only) quickly locates objects in multiple types of base materials to allow for immediate cutting, drilling or coring. It is capable of detecting a variety of embedded objects such as metal, wood, plastic, and shielded electrical wire up to 7in deep.Select different modes to scan dry concrete, wet concrete, wood, drywall, and hollow block. The multi-detection mode allows for scanning in up to three parallel surface positions. This helps detects objects running diagonally.

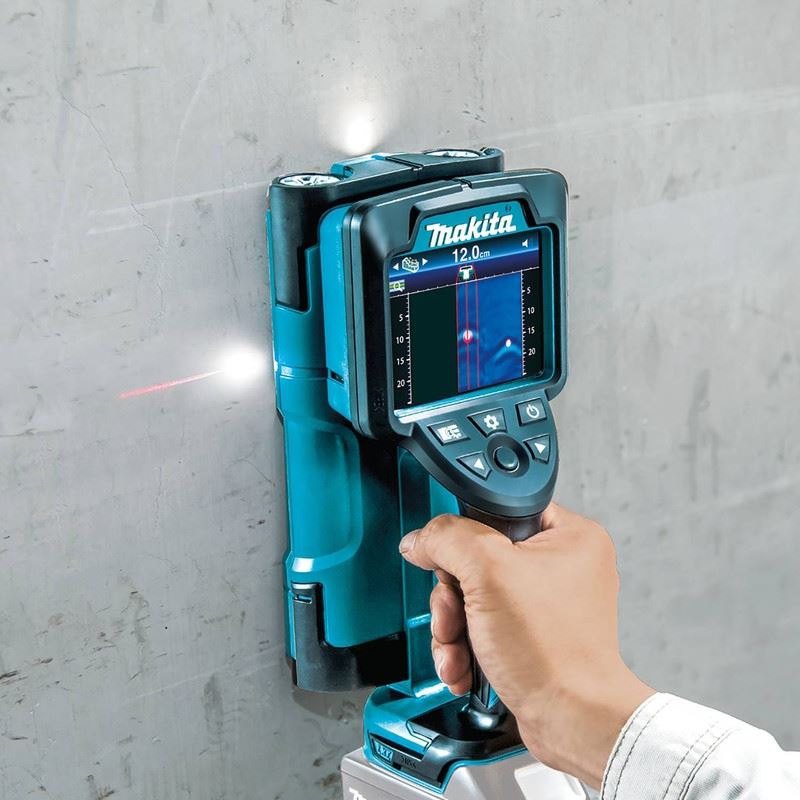

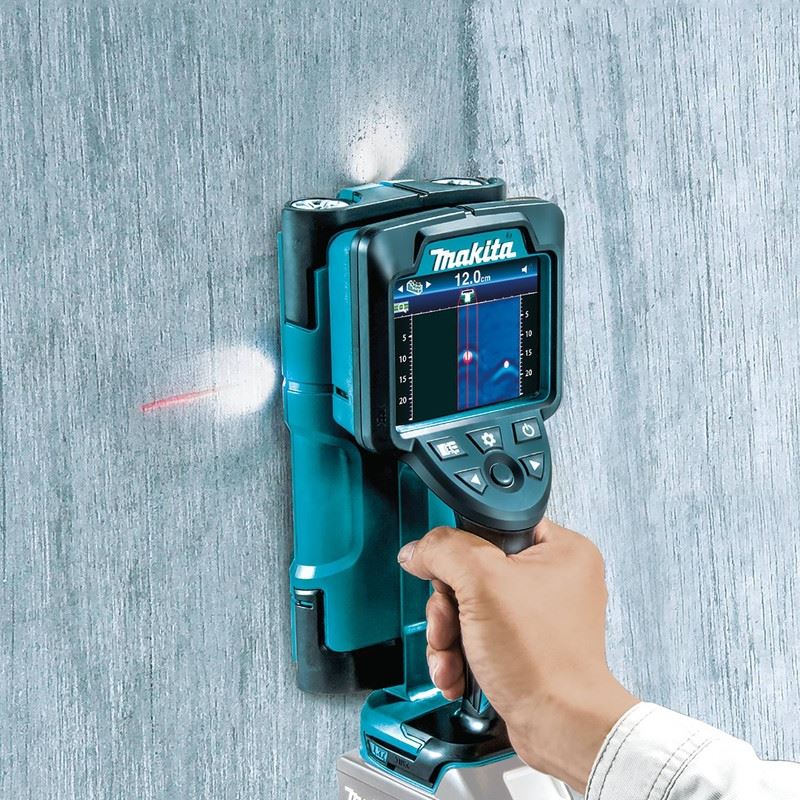

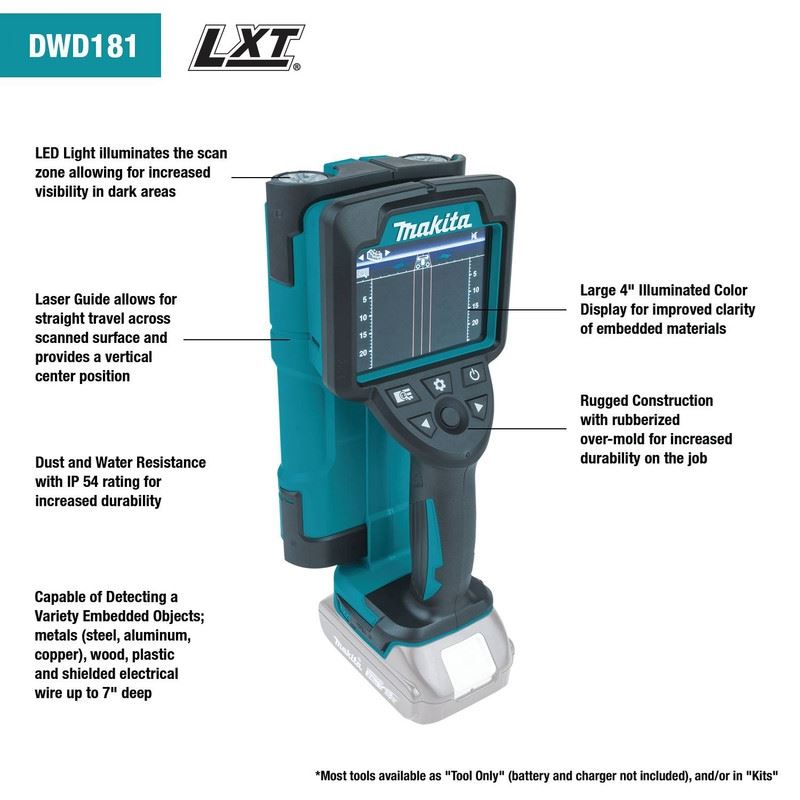

The large 4in illuminated interface displays center, edge position, and relative width and depth of embedded objects. A laser guide assists with straight travel across the surface and provides a center position of the sensor for increased accuracy. An L.E.D. light illuminates the scan zone for increased visibility in dark areas.
The scanner is designed for use in demanding job sites. A rubberized over-mold, IP-54 rating, and Extreme Protection Technology (XPT) all provide increased durability. XPT is a protective seal inside the tool. It is designed to improve a tools operation in harsh conditions by channeling water and dust from key internal components.
Its part of Makitas expanding 18V LXT System, the worlds largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
INCLUDES:

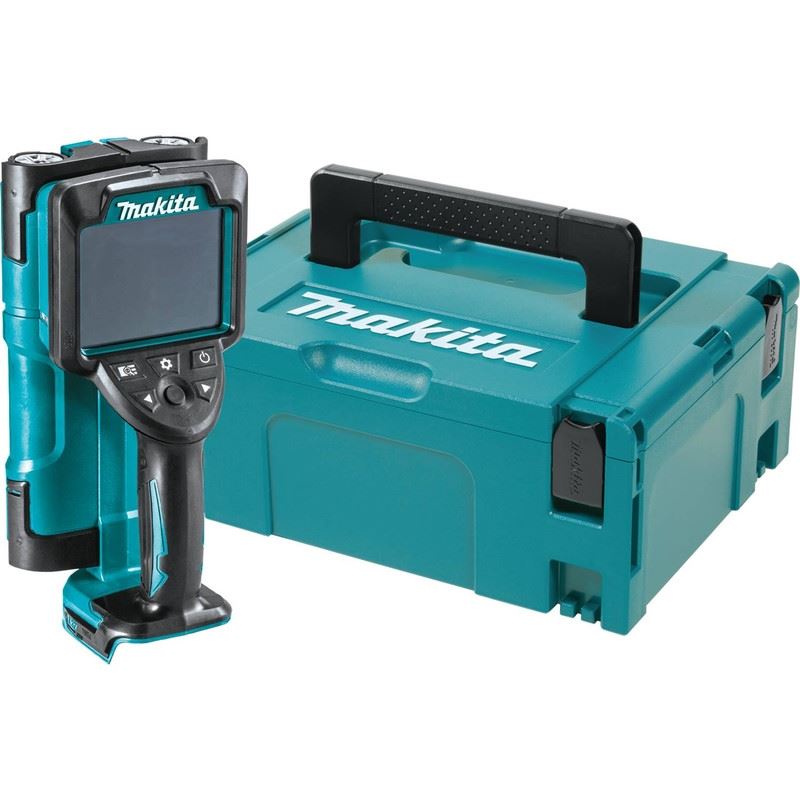

Interlocking Case (197211-7
features:

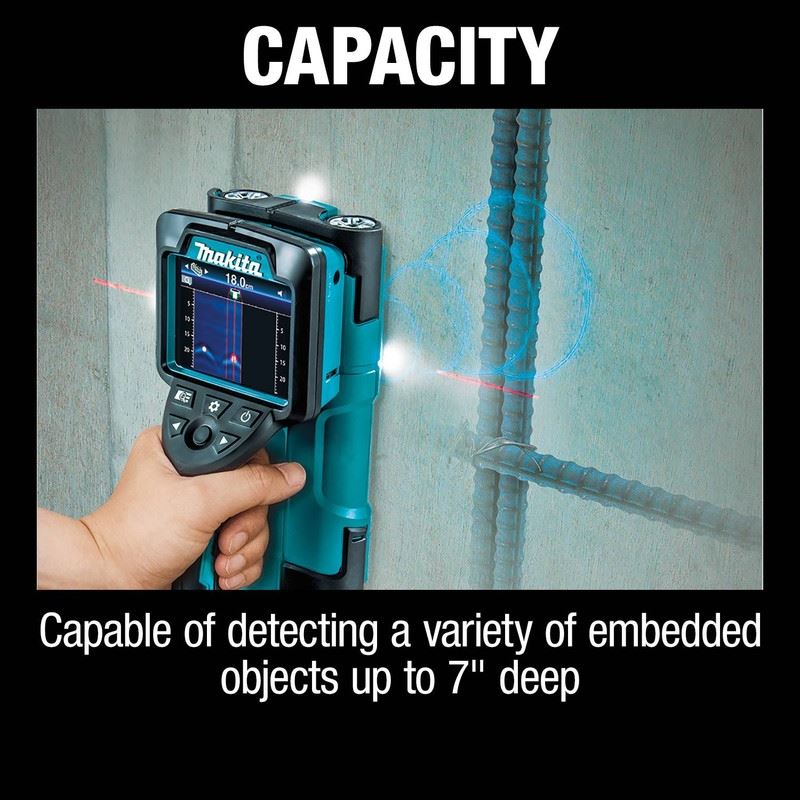

Use to detect objects up to a depth of 7 in (+/- 3/16 in) including rebar, plastic pipe, electrical wiring and more in concrete and partition walls
IP54 rated for maximum weather and water resistance
4-1/8 in full colour display for easy viewing by operator

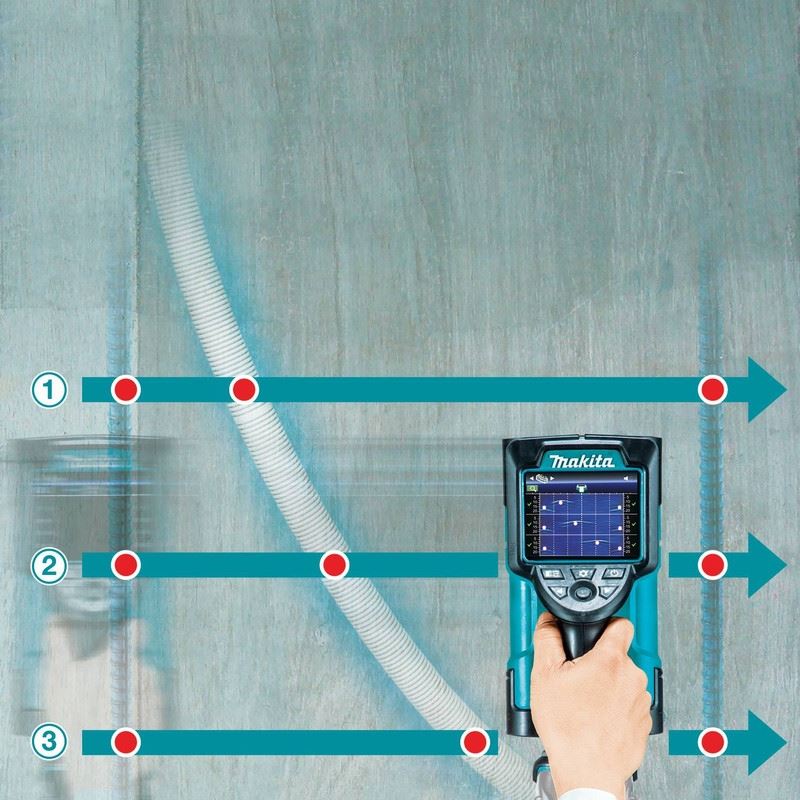

Multi-detection mode displays up to 3 detection lines for accurate detecting of curved or irregular objects, e.g. conduit

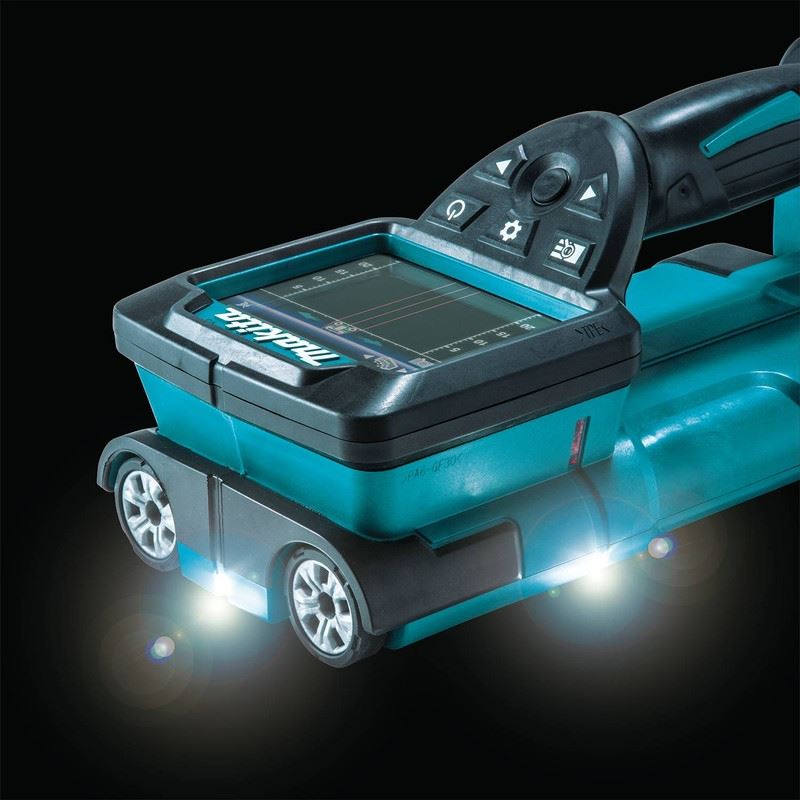

LED job lights illuminate scanning area for easy operation in dark places

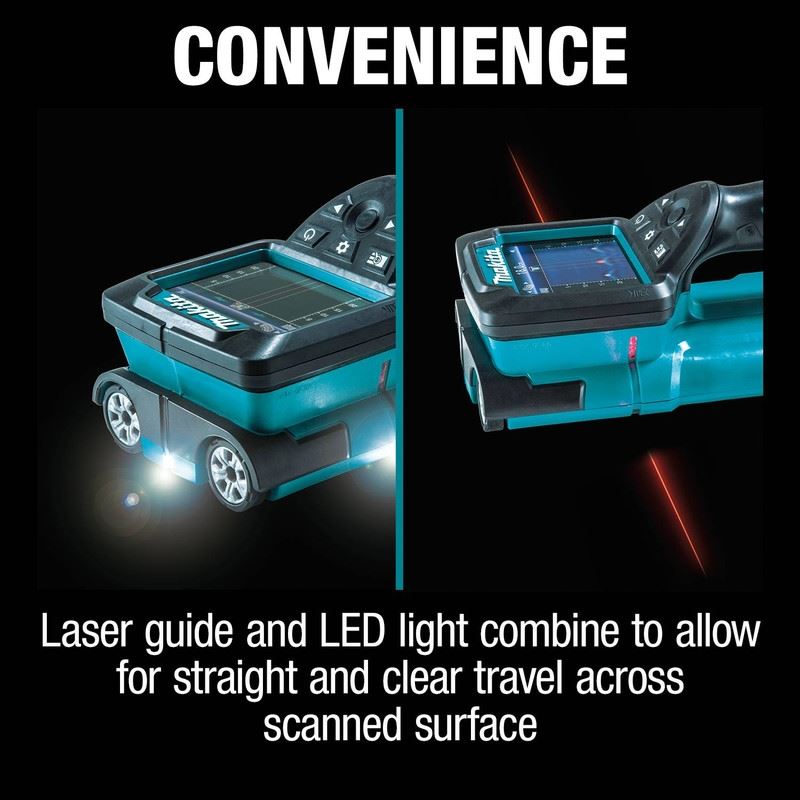

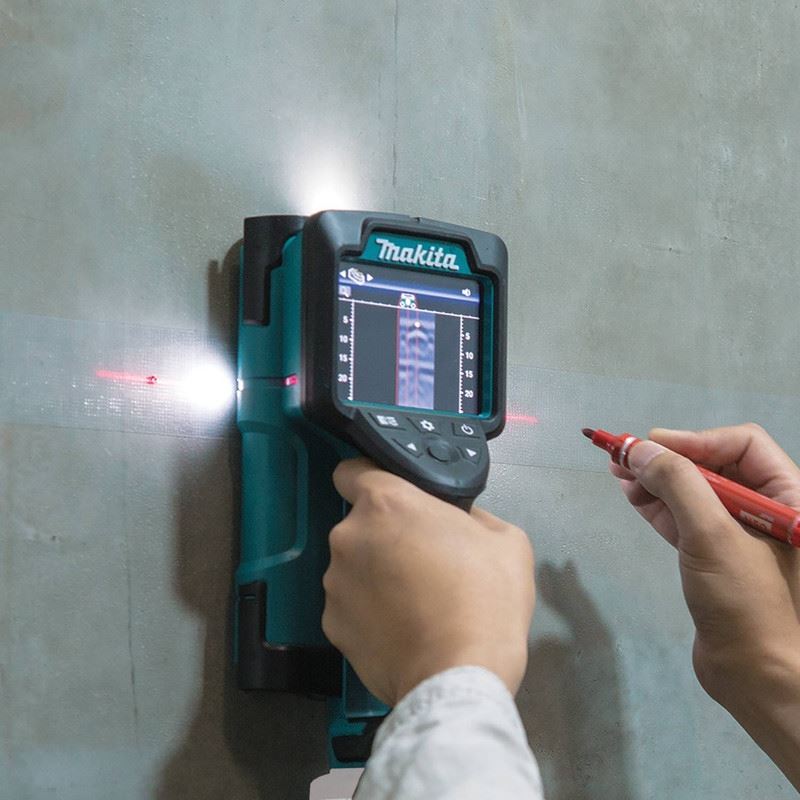

Laser guide indicates vertical centre of sensor for maximum accuracy
Visual and audible indication of detection status
Thumb operated control panel allows operator to quickly adjust required settings

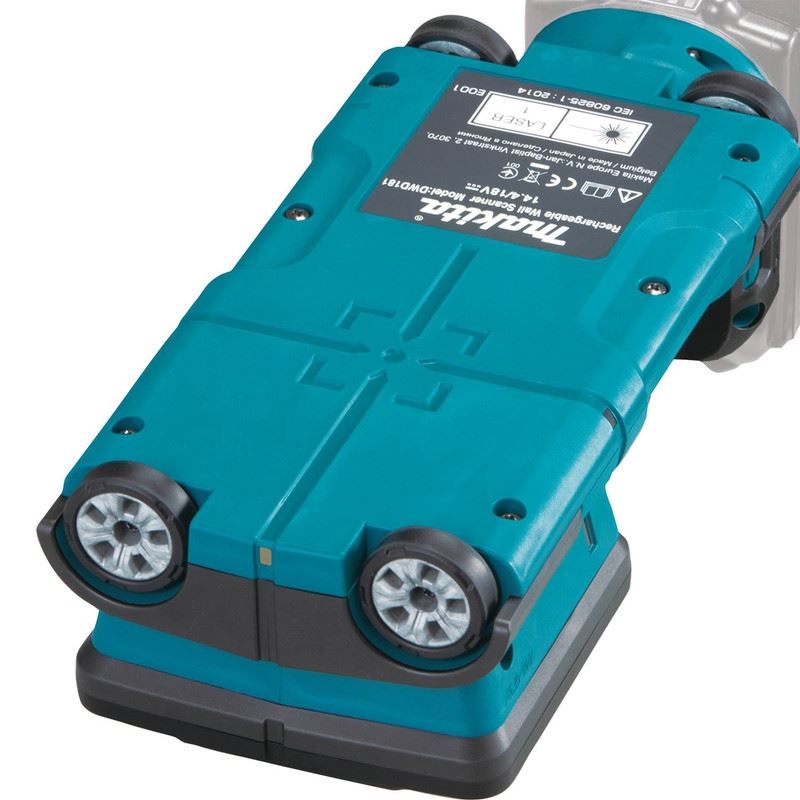

Guide wheels allows scanner to move smoothly across materials
Dry and wet concrete, partition and radar detection modes enable accurate application in a variety of materials and conditions
Sleep and timer modes reduce backlighting and turn power off when not in use to maximize battery life
Specifications
| Battery | 18V Li-ion, 14.4V Li-Ion |
|---|---|
| Max Scan Depth | 7-1/16" (180 mm) |
| Accuracy of Depth to Object | plus/minus 3/16" (5 mm) |
| Minimum Detectable Distance | 1-9/16" (40 mm) |
| Max Run Time | 24 hours (with BL1850B) |
| Dimensions (L x W x H) | 10 3/16" x 4 5/8" x 4 3/16" (259 mm x 118 mm x 107 mm) |
| Net Weight | 2.2 lbs (1.0 kg) |
| Power Source | Cordless |
| Battery | 18 V |
