| SKU:
2236-20

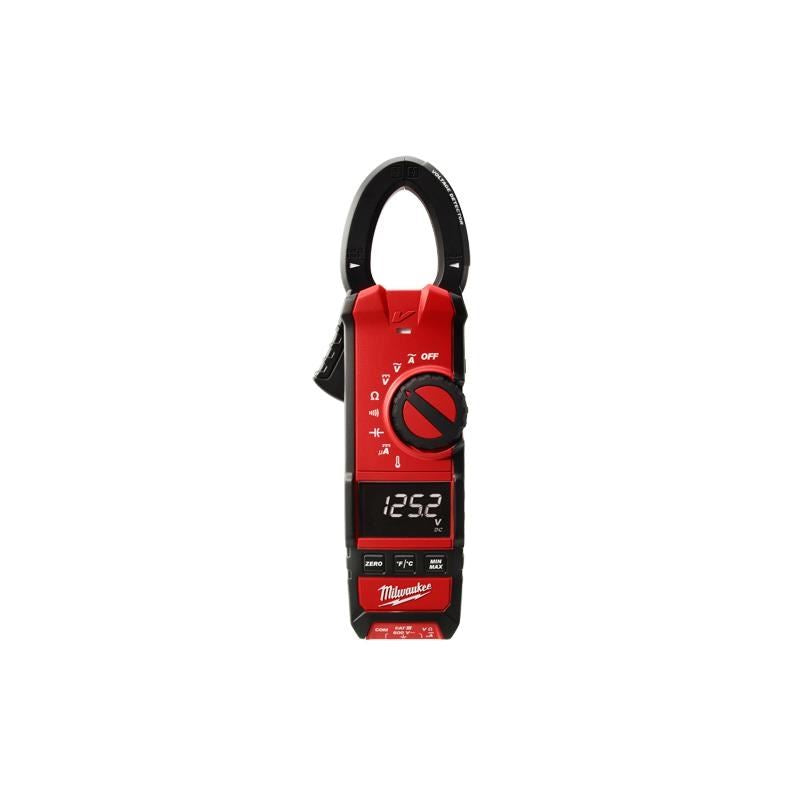

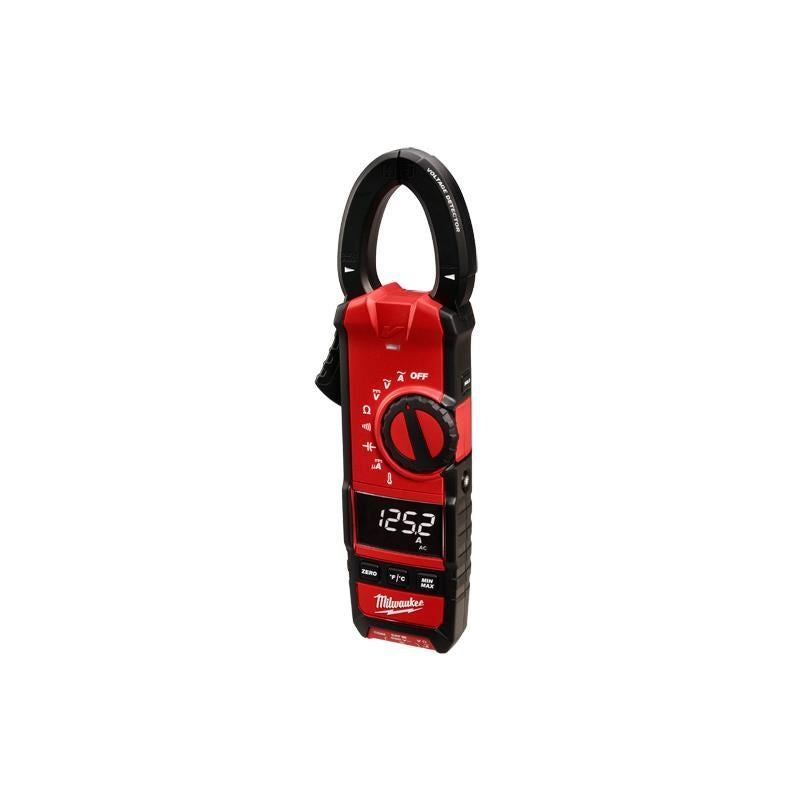

Milwaukee | 2236-20 Clamp Meter for HVAC/R
Earn [points_amount] when you buy this item.
Milwaukee | 2236-20 Clamp Meter for HVAC/R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
2236-20 Clamp Meter for HVAC/R:
Includes:
- (1) - Dual Banana Thermocouple
- (1) - Electrical Test Lead Set
- (2) - AA Batteries
- (1) - Manual
features:
Measures up to 600 amps AC, Large 1.30 jaw opening
Thin Jaw Profile for easier wire measurement in panels or in bundles
Wide Voltage range to 600 AC / DC Volts
True-RMS for accurate measurement in all applications
Built-In Voltage Detector and LED Work Light
Thermocouple (Dual Banana) Input for contact temperature measurement
600 uA DC for Flame Rectification
High Contrast, White on Black Display with Backlight for easy reading
Rugged Over-Molding Increases durability and user grip
Specifications
| General Switch Type | Dial |
|---|---|
| Power Source | Cordless |
| Display Type | High Contrast White on Black |
| Battery. Type | Alkaline (AA) |
| Length | 9-1/2" |
| Product Type | Electrical Testers |
| Tool Warranty | 5 Years |
| Voltage AC / DC | 600 V |
| Current AC | 600A |
| TRMS | Yes |
| Safety Rating | CAT III 600V |
| Resistance | 6 k |
| Continuity | Yes |
| Display Backlight | Yes |
| Non-Contact Voltage | Yes |
| LED Work Light | Yes |
| Rugged Over-Molding | Yes |
| Micro amps DC | 600A |
| Capacitance | Yes |
| Contact Temperature | -40 F to 752 F (-40 C to 400 C) |
| Jaw Size | 1.3" |
| Hold | Yes |
| Indication | Visual (for NCVD) |
| Temp | Yes |
| Dual Banana Thermocouple Input | Yes |
