| SKU:
03165

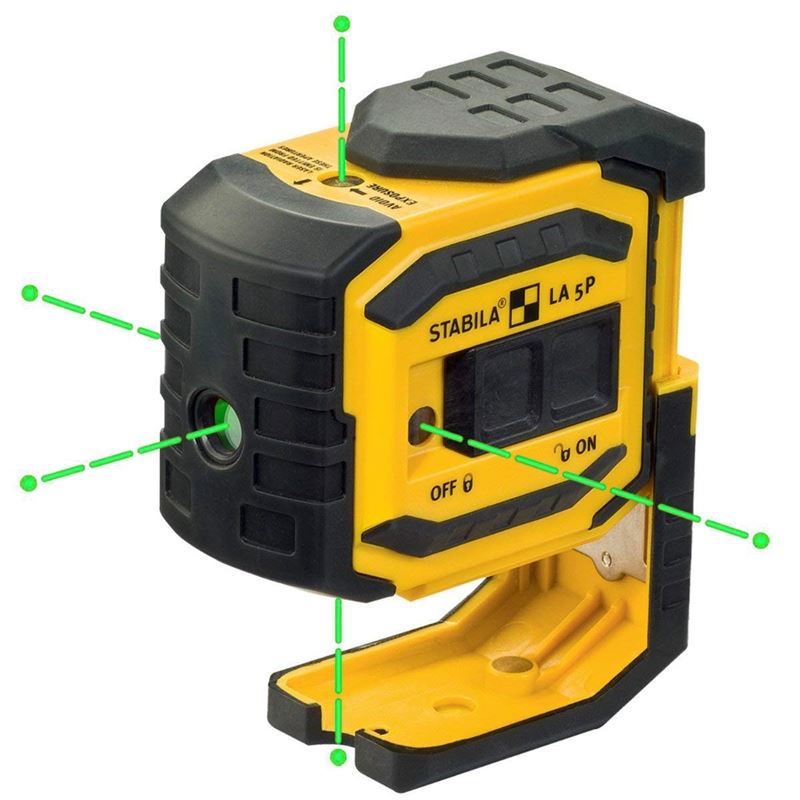

Stabila LA5PG 5 Point Laser
Earn [points_amount] when you buy this item.
Stabila LA5PG 5 Point Laser is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
| SPECIFICATIONS | 2 |
| Output | < 1 mW |
| Laser wavelength | 635 nm |
| Self-levelling range +/- | 4.50° |
| Levelling accuracy +/- | 3/16 in @ 30 ft |
| Laser beam accuracy (up) +/- | 3/16 in @ 30 ft |
| Laser beam accuracy (down) +/- | 1/8 in @ 30 ft |
| Measuring range of visible point | 60 ft |
| Operating life | 20 h |
| Protection class | IP 54 |
| Tripod connection | 1/4"-20 |
features:
STABILA Type LA-5P, Self leveling 5 point/dot laser with pouch, framing base, target plate, metal wall mount plate and batteries.
Transfer plumb points from floor to ceiling and layout right angles/square.
5 Bright tight dots visible over 50ft.
Up dot accuracy tolerance: Will not exceed 3/32in @ 30ft.
Down dot accuracy tolerance: Will not exceed 1/8 @ 30ft.
Level dot accuracy tolerance: Will not exceed 3/32in @ 30ft
Square dot accuracy tolerance: Will not exceed 1/16in @ 30ft
Warranty: Up to 2 years from the date of purchase.
Mechanical off/on switch with automatic pendulum lock.
V Groove rare earth magnetic mount is built into the housing.
Self -leveling range: 4.5 degrees
Up to 20 hours of run time on 3-AA batteries.
Specifications
| Power Source | Cordless |
|---|---|
| Product Type | Point Lasers |
| Laser Color | Green |
Stabila LA5PG 5 Point Laser
| SPECIFICATIONS | 2 |
| Output | < 1 mW |
| Laser wavelength | 635 nm |
| Self-levelling range +/- | 4.50° |
| Levelling accuracy +/- | 3/16 in @ 30 ft |
| Laser beam accuracy (up) +/- | 3/16 in @ 30 ft |
| Laser beam accuracy (down) +/- | 1/8 in @ 30 ft |
| Measuring range of visible point | 60 ft |
| Operating life | 20 h |
| Protection class | IP 54 |
| Tripod connection | 1/4"-20 |
