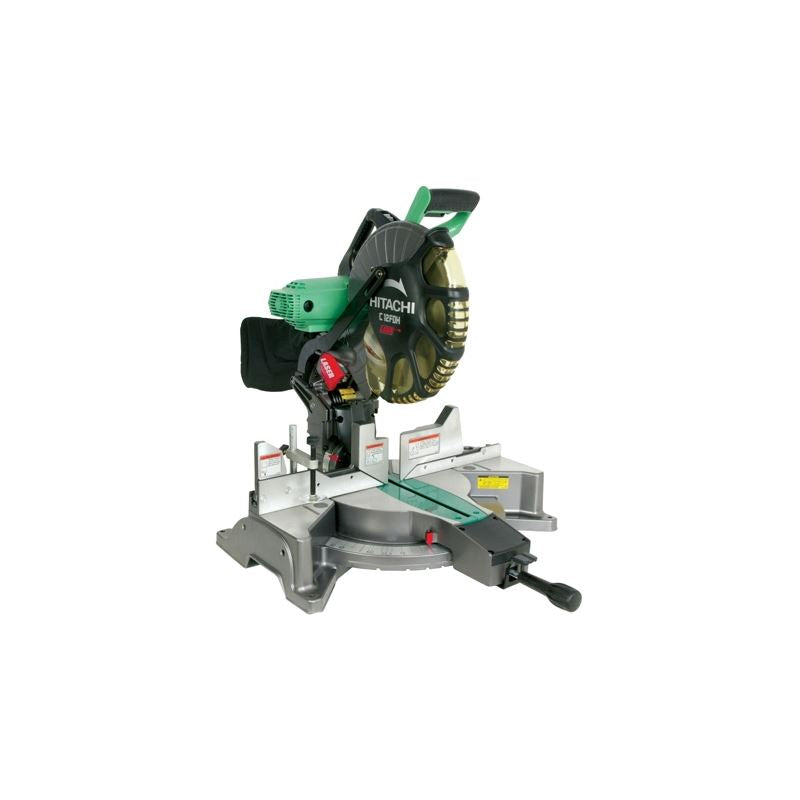

Metabo C12FDHM 12" Dual Compound Miter Saw with Laser Marker
Metabo C12FDHM 12" Dual Compound Miter Saw with Laser Marker is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
The C12FDH 12" Dual Compound miter saw features Hitachi's laser marker system for cutting accuracy. The saw head bevels to the right or left- allowing the material to stay securely in place for ultimate cutting efficiency. It cuts various types of wood, crown molding, plywood, decorative panels, soft fiberboard, hardboard and aluminum sashes.
Specifications
Blade Size 12"
Cross Cut (90 degrees) 2-3/4"x8" or 3-1/2"x7-1/2"
45 Degree Miter 2-3/4" x 5-1/2"
45 Degree Bevel L 1-31/32" x 8"
45 Bevel R 1-7/32" x 8"
Miter R/L 45 & Bevel L 45 1-31/32" x 8"
Miter R/L 45 & Bevel R 45 1-7/32" x 5-1/2"
Miter Cut Range R&L 0-52 Degrees
Bevel Cut Range R&L 0-48 Degrees
Compound Cut Range Miter R&L: 0-45
Compound Cut Range Bevel R&L: 0-45
Positive Miter Stops 0, 15, 22.5, 31.6, 45
LCD Display No
Full-Load Current 15 Amps
No-Load 4,000 RPM
Laser Marker Yes
Splinter Guard Yes
Tool Dimensions (WxDxH) 24-5/8"x 30-23/32"x27"
Weight 46.3 lbs
features:
Laser marker system accurately indicates where the blade will cut on the material and can be easily adjusted to the right or left of the cut mark depending upon the users preference
â– Powerful 15 Amp motor with 1,950 Watts of output power smoothly powers through hardwoods with ease
â– Tall, pivoting aluminum fence that stands at a height of 5-1/8" allows crown molding to be cut vertically for convenience
â– Elastomer compound coats the horizontal handle, reducing vibration, while adding comfort and preventing slippage
â– Large base provides better support and balance to prevent material from warping
â– Externally accessible carbon brushes allow for quick and easy maintenance to prolong too life
â– Miter scale ranges from 0-52 degrees, both to the right and left, for a broader range of cuts
â– Miter angles can be quickly adjusted using Hitachi's thumb actuated positive stops
â– Bevel scale ranges from 0-48 degrees to the right and left allowing the material to stay in place while the s
