MILESCRAFT-1226
MILESCRAFT 1226 HingeJig Self-Clamping Door Hinge And Latch Jig
Earn [points_amount] when you buy this item.
MILESCRAFT 1226 HingeJig Self-Clamping Door Hinge And Latch Jig is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

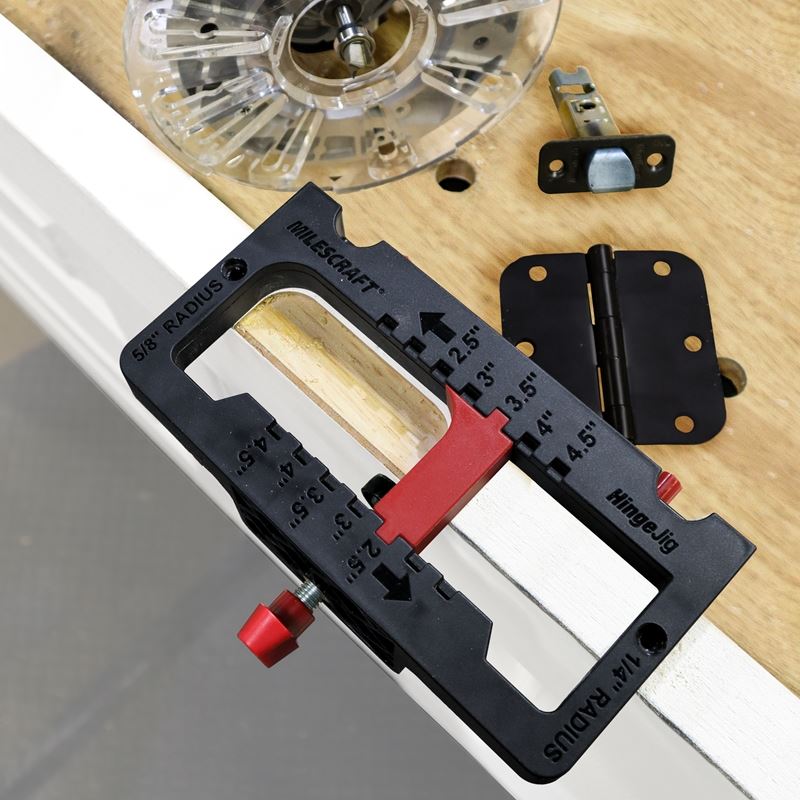

Save time and remove the guess work when installing new doors into existing frames with the Milescraft HingeJig. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the HingeJig in place while routing without the use of screws or nails that can leave holes in a finished door.
INCLUDES:

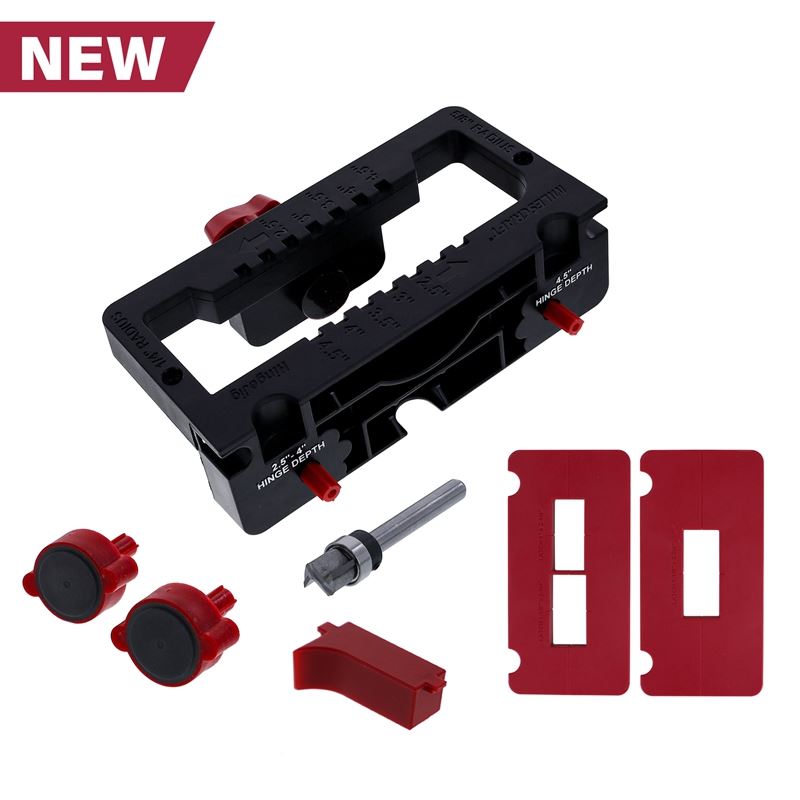

Jig Main Body, Built-in Clamp, Adjustable Hinge Spacer, 12mm Router bit with Bearing, 2x Adjustable Backset Plugs, 2x Latch Templates
features:

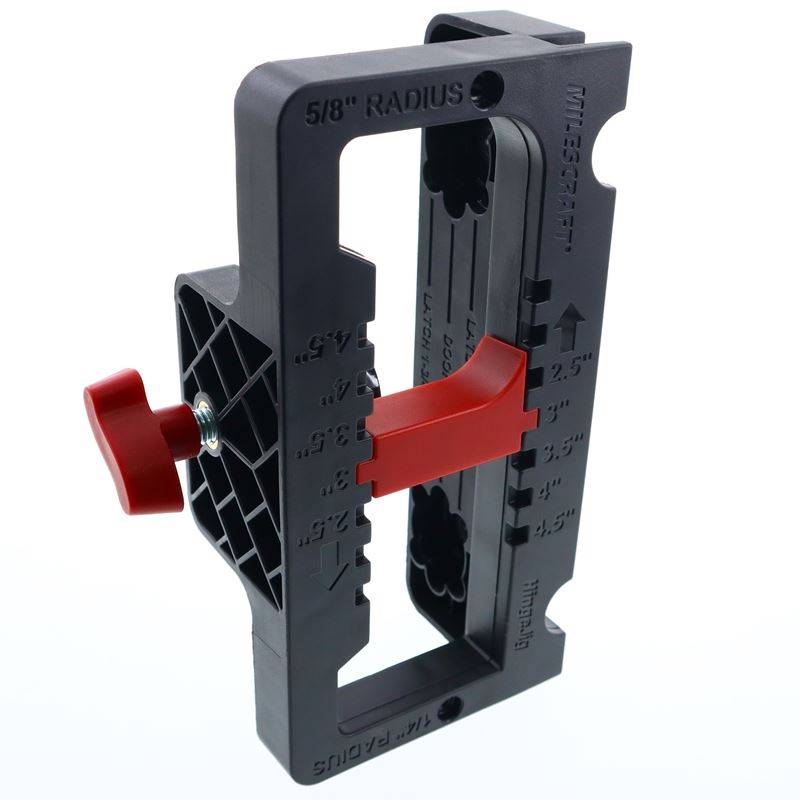

Self-Clamping - Padded clamp design sets up quickly and prevents damage to doors caused by mounting screws or nails
Fits All Doors - Adjustable settings allow door hinge jig to be used on all standard size 1-3/8 in and 1-3/4 in thick doors
Works with Multiple Hinge Sizes - Routs hinge mortises for 2-1/2 in to 4-1/2 in hinges
Rout Different Radiuses - Cut professional hinge mortises with 1/4in, 5/8 in, or square corners. (Chisel Required)

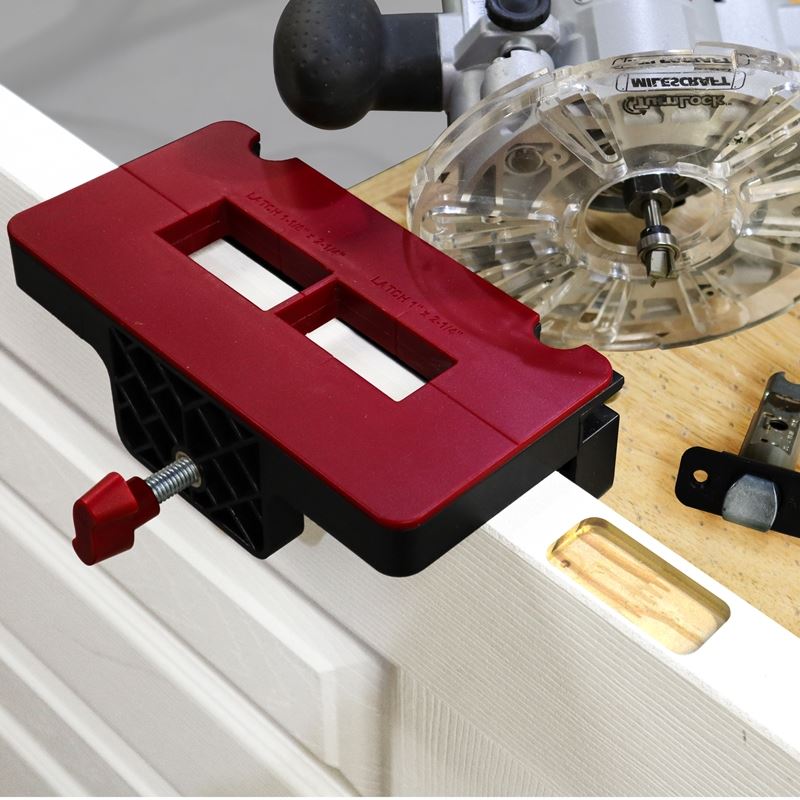

Create Latch Plate Mortises - Kit includes templates to rout common door latch mortises sized 1 in x 2-1/4 in , 1-1/8 in x 2-1/4 in , and 1-1/8 in x 2-3/4 in
Built in Depth Setting - Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges
Self-Guided Router Bit - Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises
For Doors Only - Not for use when routing door hinges on jamb / frame
Specifications
| Compatible Door Thickness | 1-3/8 in and 1-3/4 in Doors |
|---|---|
| Latch Sizes | 1 in x 2-1/4 in, 1-1/8 in x 2-1/4 in , and 1-1/8 in x 2-3/4 in |
| Door Hinge Sizes | 2-1/2 in, 3 in , 3-1/2 in, 4 in, and 4-1/2 in |
| Hinge Corner Radius Sizes | 1/4 in, 5/8 in, or Square (Chisel Required) |
| Door Mounting | Padded Self-Clamping. No Hardware Required |
| Adjustable Backset Plugs | Adjust for Door Hinge Routing, 1-3/8 in Latch, and 1-3/4 in Latch |

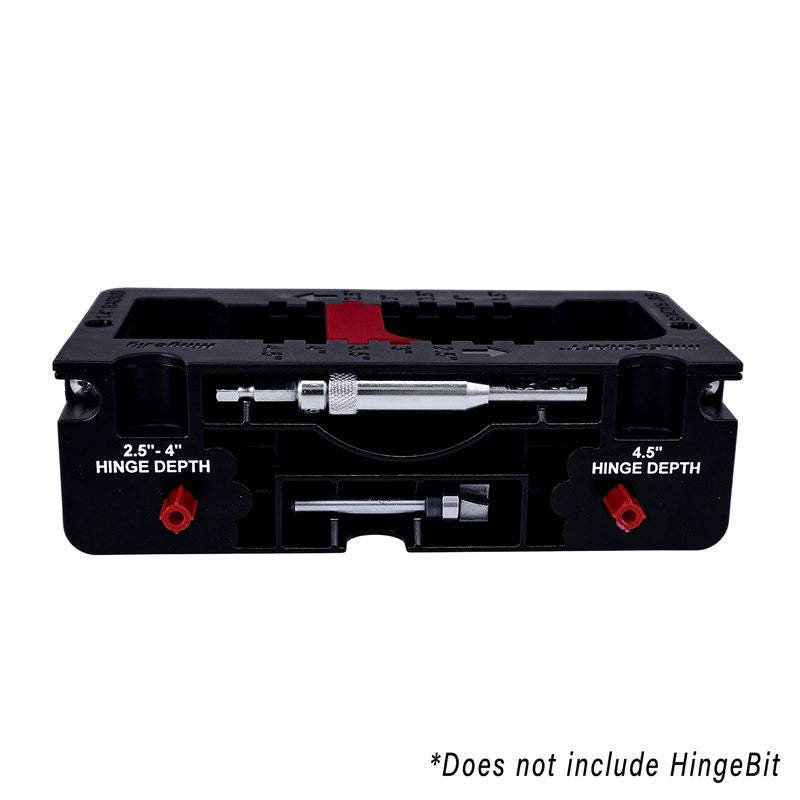

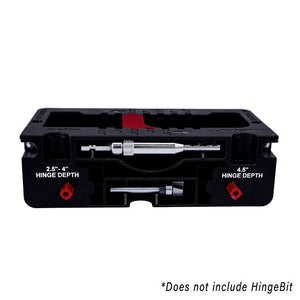

| Storage | Built-in for router bit and available self-centering hinge bit (not included) |
| Guided Router Bit | 12mm Cutting Head with 1/2 in Ball Bearing |
