| SKU:
MILESCRAFT-1333
MILESCRAFT 1333 DowelJigKit
MILESCRAFT 1333 DowelJigKit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

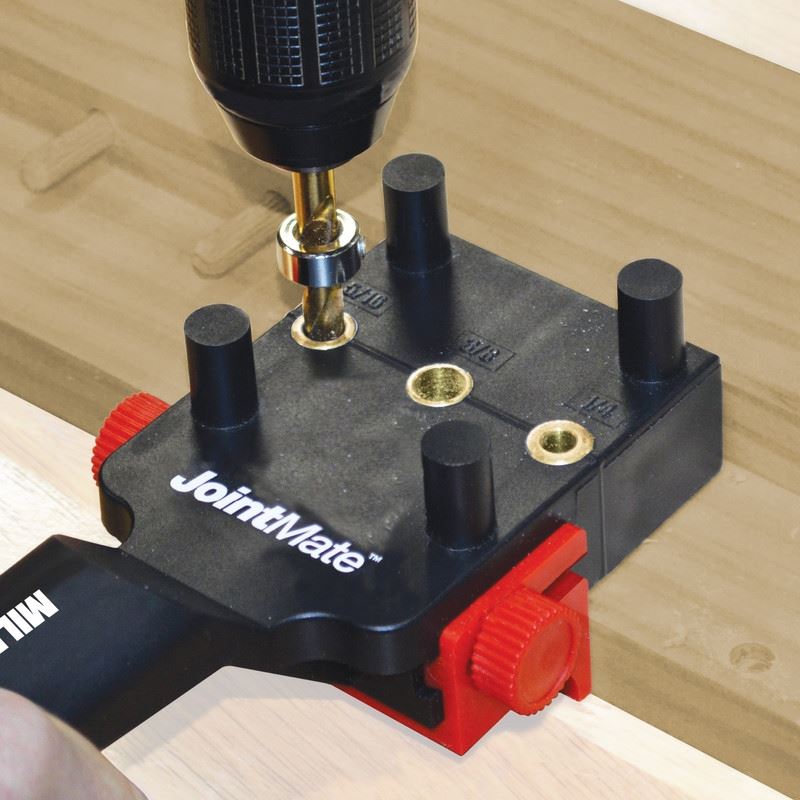

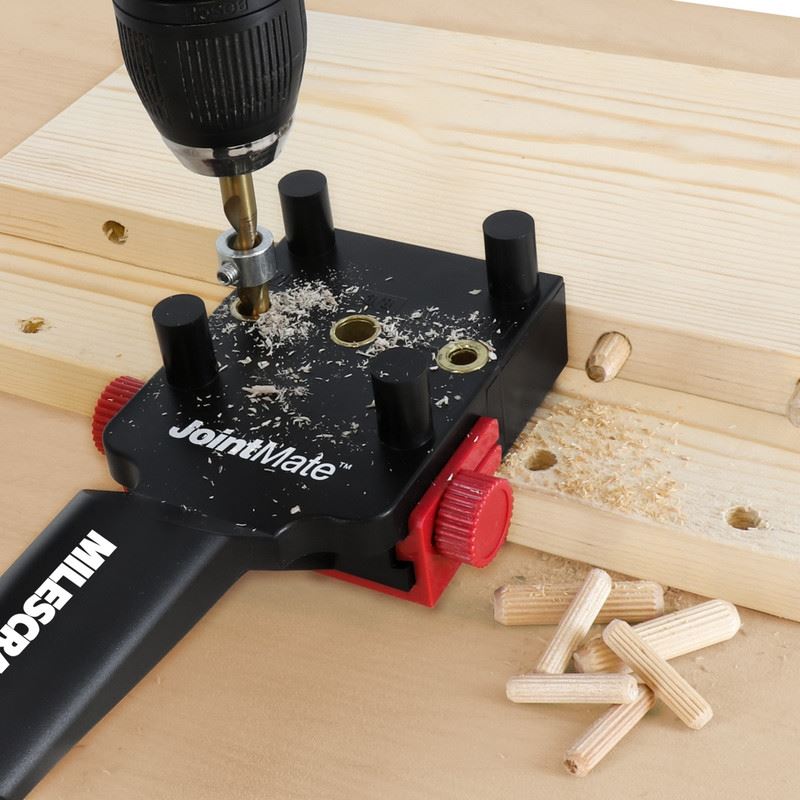

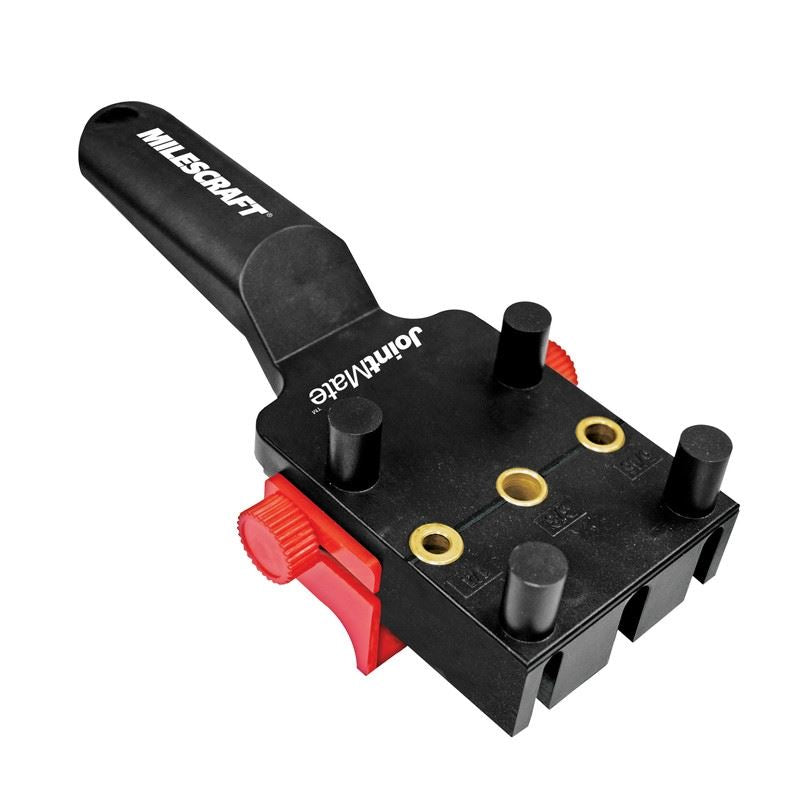

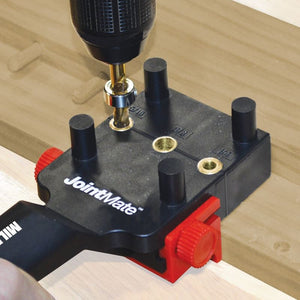

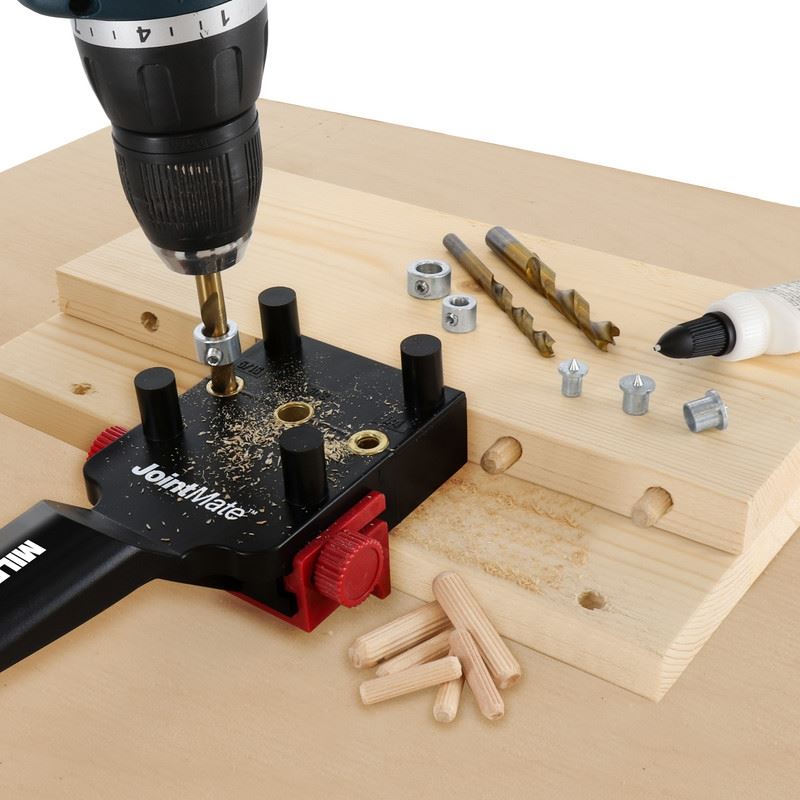

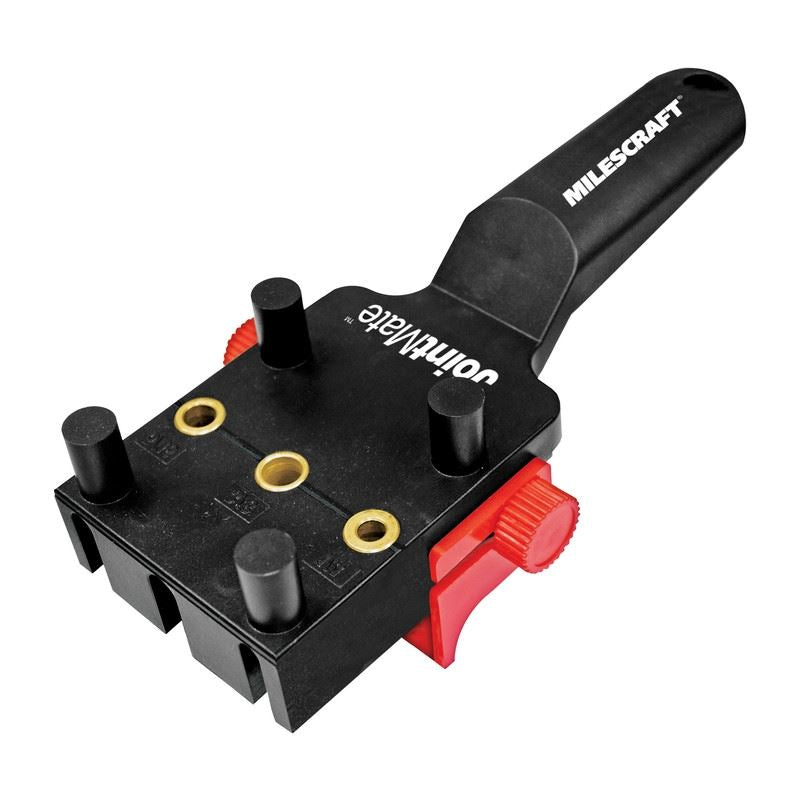

The complete doweling kit contains everything you need to start creating strong and accurate joints. Featuring the JointMate, this self-centering jig with an adjustable fence allows for precision, accuracy, and maximum joint strength.
INCLUDES:

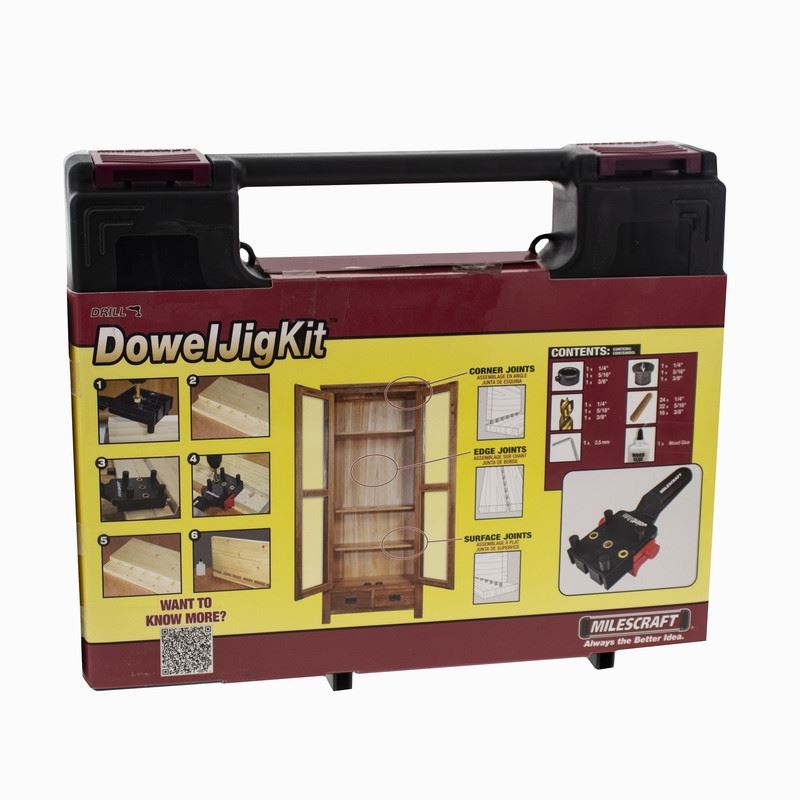

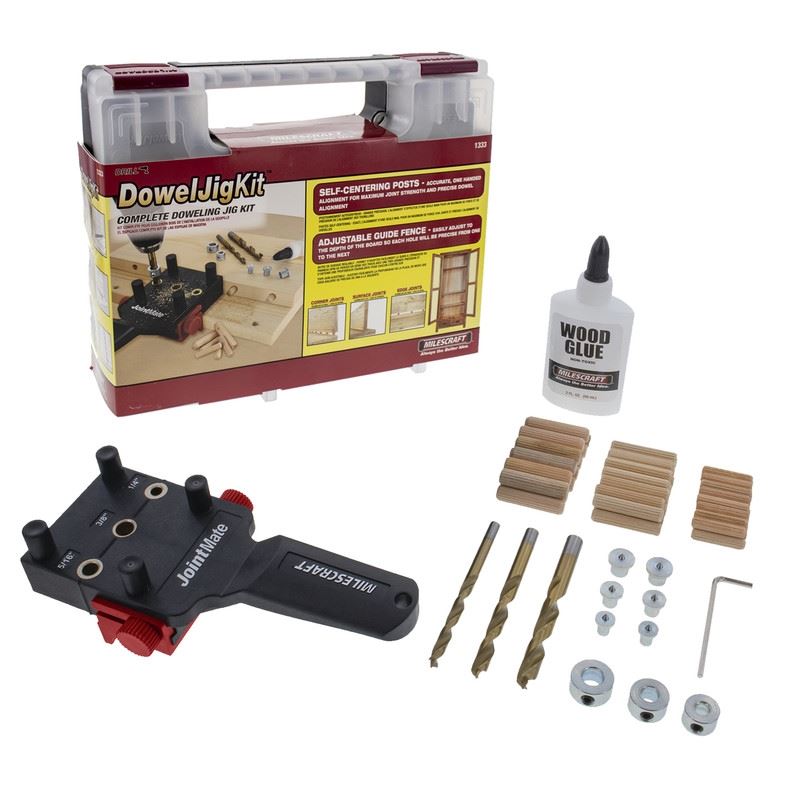

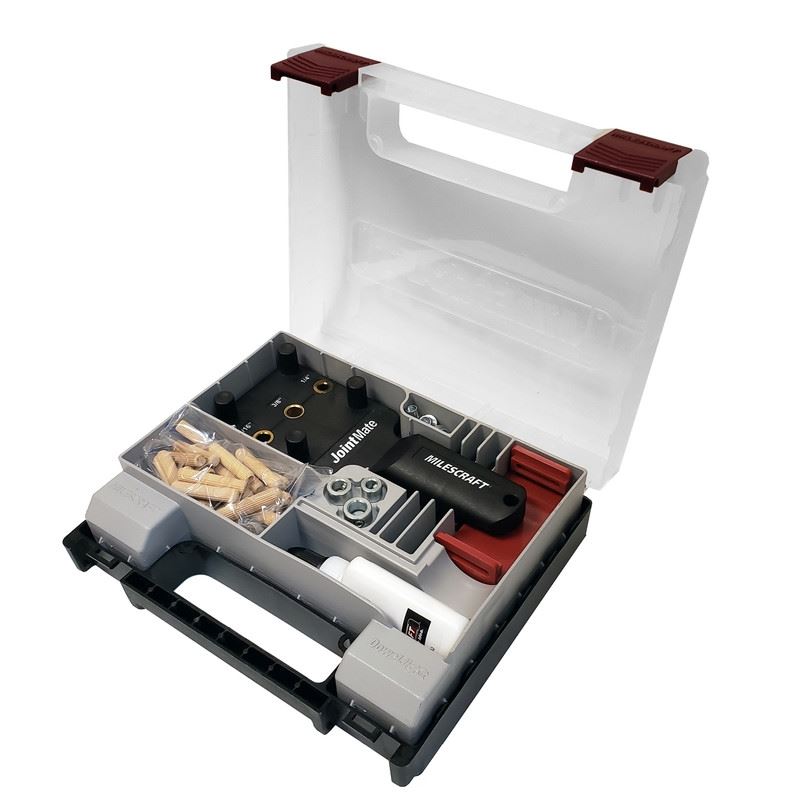

JointMate, (62) Dowel Pins, (6) Dowel Centers, (3) Brad Point Bits, (3) Drill Stops, Allen Wrench, Wood Glue, Heavy-Duty Storage Case
features:

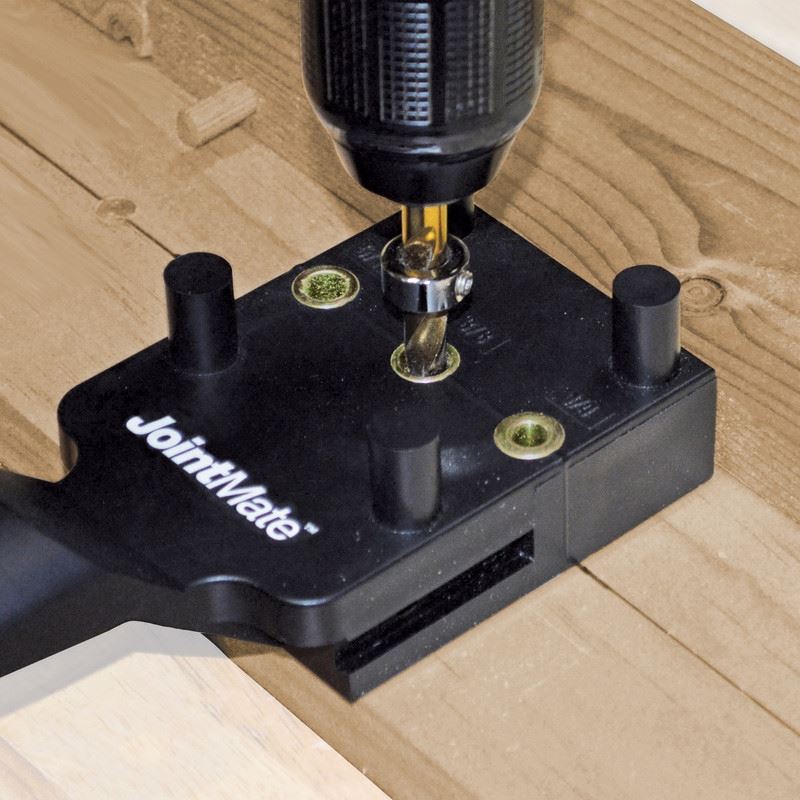

Insert Molded Hardened Steel Bushings - Ensure accurate alignment when drilling for perfectly positioned dowels for longer doweling life

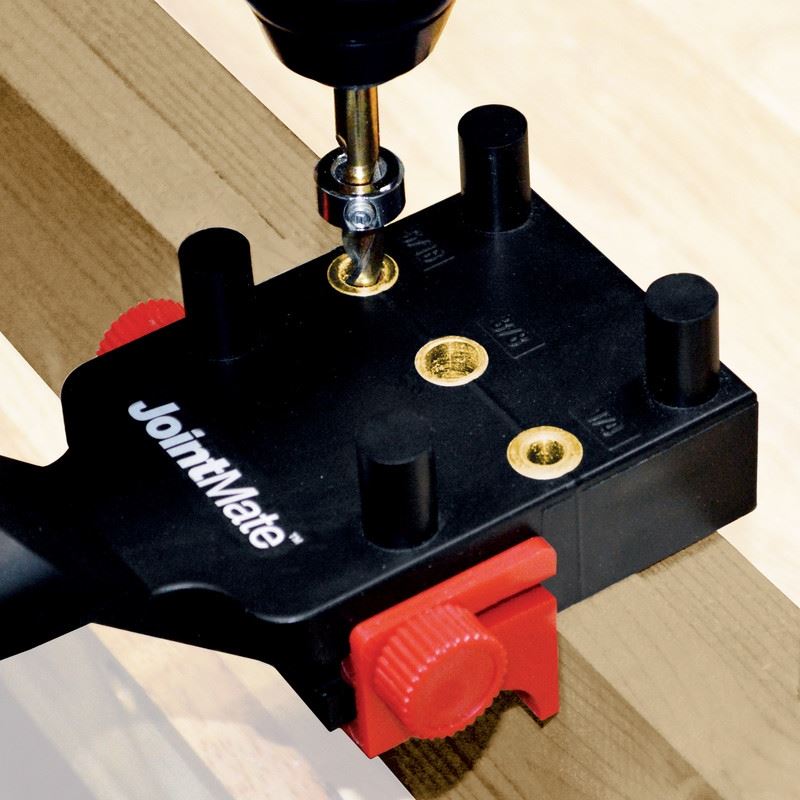

Adjustable Guide Fence - Easily adjust to the depth of the board so that each hole will be precise from one to the next, Can be removed without removing the guide knobs, Compatible with 1/2in to 1-1/2 in thick lumber
Steel Dowel/Tenon Centers - For durable and accurate location marking of dowel holes or in the second board being joined
Fluted Hardwood Dowel Pins - Chamfered ends add strength and endurance to your joined surfaces
Includes 3 sizes - 1/4 in, 5/16 in, 3/8 in
Brad Point Drill Bits - Bits ensure pinpoint accuracy
Includes 3 sizes - 1/4 in, 5/16 in, 3/8 in
Steel Drill Stops - For durable performance
Includes 3 sizes - 1/4 in, 5/16 in, 3/8 in
Specifications
| Drill Bushings, Stops, Bits, and Pin Sizes | 1/4in, 5/16in, 3/8in |
|---|---|
| Minimum Board Width (not thickness) for 1/4in & 5/16in bushing | 2in |
| Minimum Board Width (not thickness) for 3/8in bushing | 3-1/4in |
| Closest distance for dowel from board end (for 1/4in and 5/16in bushing) | 1-1/8in |
| Closest distance for dowel from board end (for 3/8in) | 1-5/8in |
| JointMate Body Material | ABS Plastic |
| Drill guide bushing block material | Hardened Steel |
| For use with | Materials from 1/2 in to 1-1/2 in thick (12-38mm) |
