| SKU:
MILESCRAFT-1338
MILESCRAFT 1338 LockMatePLUS Self Clamping Lock and Knob Instalation Jig
Earn [points_amount] when you buy this item.
MILESCRAFT 1338 LockMatePLUS Self Clamping Lock and Knob Instalation Jig is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

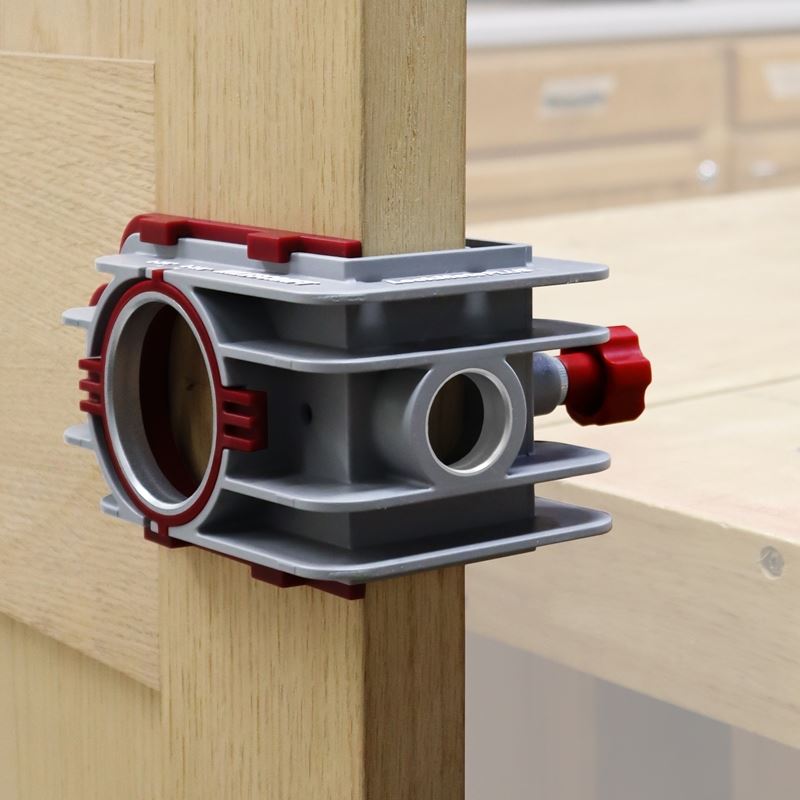

Maximize the speed and ease of door lock and knob installation projects with the LockMatePLUS by Milescraft. Perfect for large jobs where time is money, the self-clamping design sets up in seconds without the need for screws or hardware. The non-marring clamp has a wide rubber surface that sets up or removes instantly, prevents slipping and protects doors.

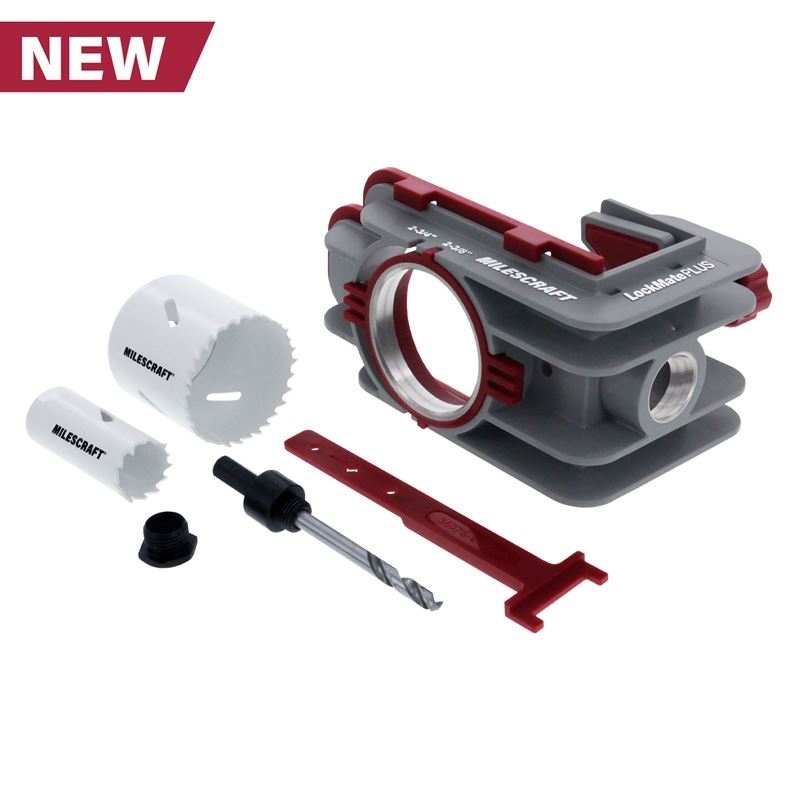

INCLUDES:
Jig Body, 2x Bi-Metal Hole Saws, Door Thickness Spacer, Adjustable Main Drilling Guide, 1/4in Pilot bit with Arbor, Hole Saw Adapter, Adapter Washer, Dead Bolt Locator
features:
Self-Clamping - LockMatePLUS clamps to door eliminating use of screws that can damage door
Advanced Cutting - Includes 2-1/8 in and 1 in Bi-Metal Cobalt alloy hole saws
Multi-Material - Cut both wood and metal solid or hollow core doors
Fits most Doors - Adjusts for 1-3/8 in and 1-3/4 in thick standard doors
Anti-Wear Design - Stepped drill guide has built in metal bushing to prevent damage and extend life of jig
Adjustable Lock Locations - Creates both 2-3/8 in and 2-3/4 in standard backsets for locks and knobs
Universal Compatibility - Creates holes compatible with most common lock, knob, and handle sizes

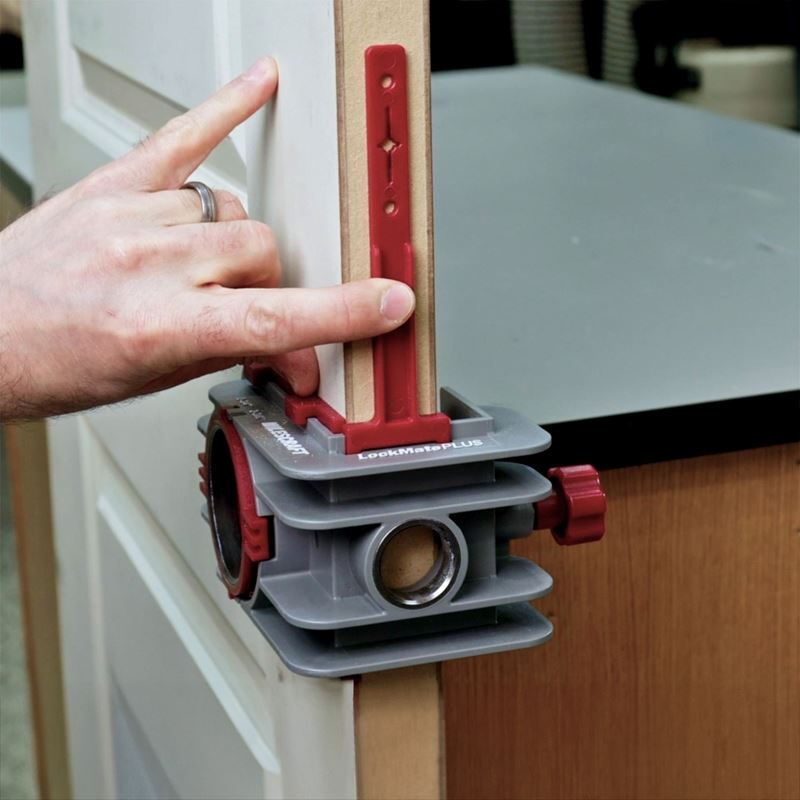

Perfect Spacing - Included Dead Bolt Locator positions dead bolts correct distance from knobs or handles
Reduce Tear Out - Extra-long 1/4in Pilot bit exits door first, creating guide hole for completing hole from the opposite side
Specifications
| Door Mounting | Self- Clamping |
|---|---|
| Hole Saw Diameter | 2-1/8in and 1in |
| Compatible Door Thickness | 1-3/8in and 1-3/4in |
| Adjustable Backset Settings | 2-3/8in and 2-3/4in |
| Pilot Bit with Arbor | 1/4in Drill Bit |
| Main Drill Guide | Metal Step-down guide bushing |
| Cross Bore Guide | Metal guide bushing |
MILESCRAFT 1338 LockMatePLUS Self Clamping Lock and Knob Instalation Jig
Maximize the speed and ease of door lock and knob installation projects with the LockMatePLUS by Milescraft. Perfect for large jobs where time is money, the self-clamping design sets up in seconds without the need for screws or hardware. The non-marring clamp has a wide rubber surface that sets up or removes instantly, prevents slipping and protects doors.
