MILESCRAFT 1342 EuroHingeJig Concealed Hinge Jig
Earn [points_amount] when you buy this item.
MILESCRAFT 1342 EuroHingeJig Concealed Hinge Jig is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

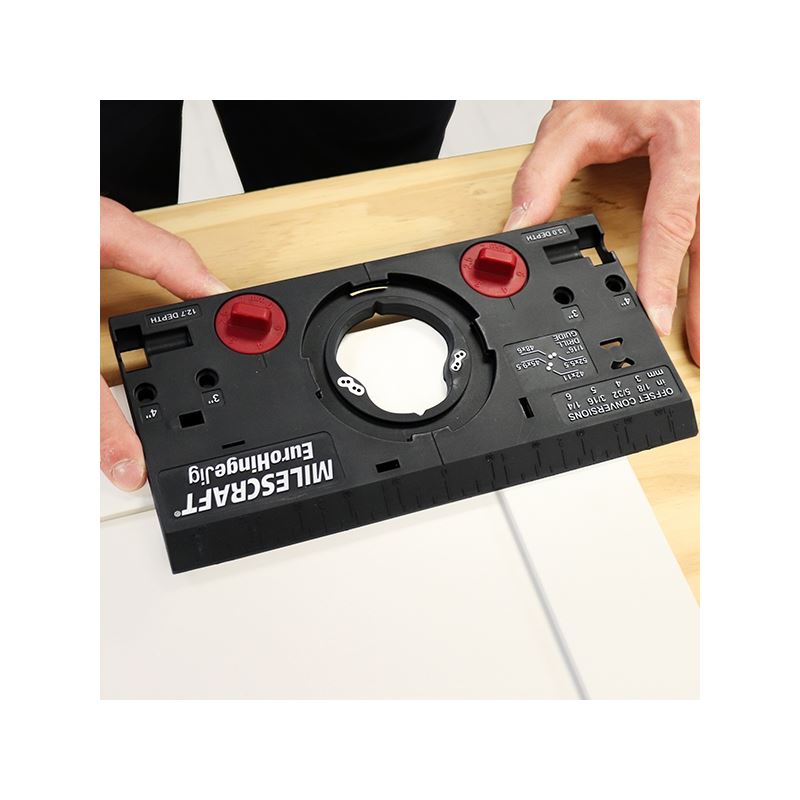

The Milescraft EuroHingeJig takes the guesswork out of installing European style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.
INCLUDES:

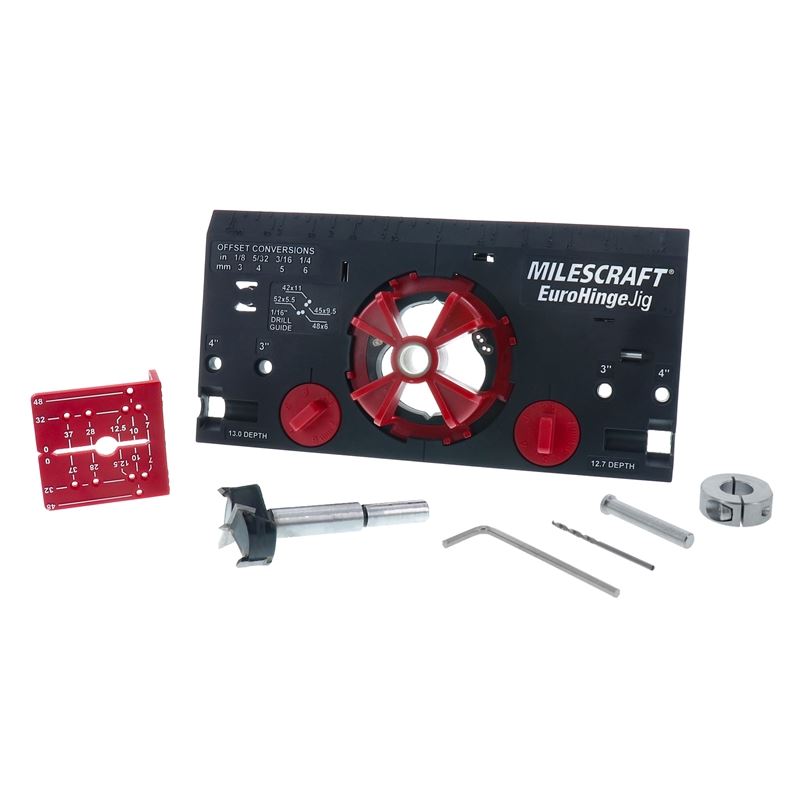

Hinge Marking Guide, 1/16in Pilot bit , 3mm Allen Wrench
features:
Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom

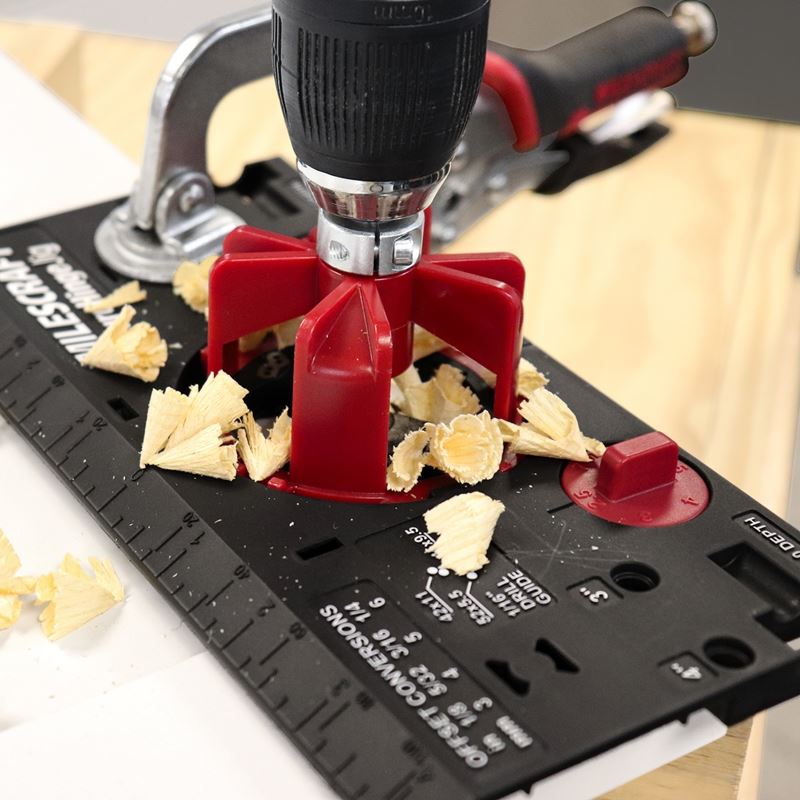

The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures

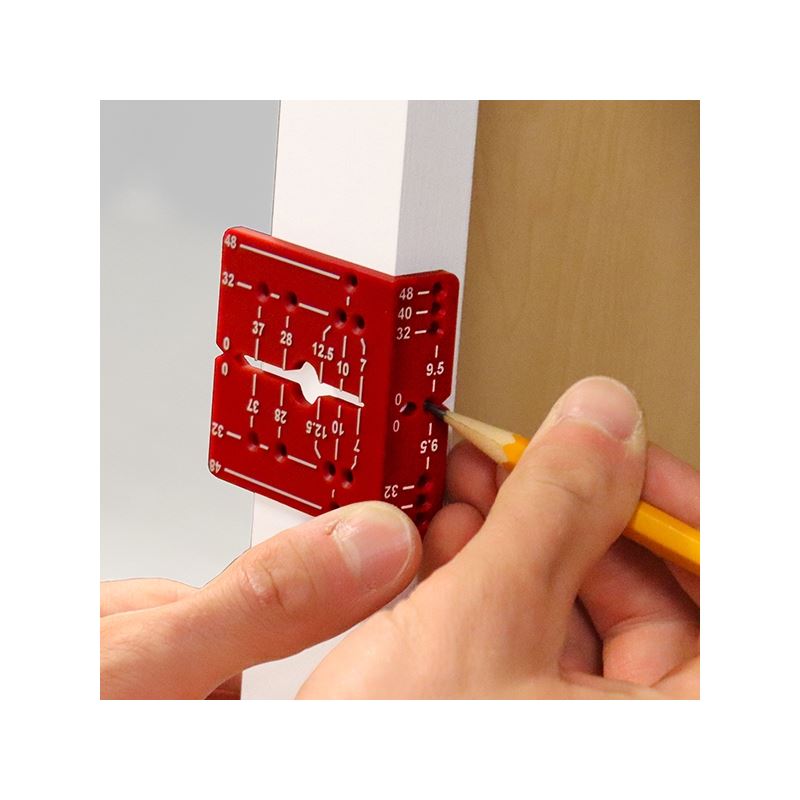

The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame
Specifications
| Edge Offsets | 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm |
|---|---|
| Locator Pin Offsets | 3in, 4in |
| Drill Bit | 35mm EuroHinge Boring Bit |
| Shank | 3/8in Round |
| Depth Stop | 3/8in Split |
| Depth Settings | 12.7mm, 13mm |
MILESCRAFT 1342 EuroHingeJig Concealed Hinge Jig
The Milescraft EuroHingeJig takes the guesswork out of installing European style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.
