| SKU:
MILESCRAFT-1343
MILESCRAFT 1343 SHELFJIG SHELF-PIN HOLE JIG
Earn [points_amount] when you buy this item.
MILESCRAFT 1343 SHELFJIG SHELF-PIN HOLE JIG is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

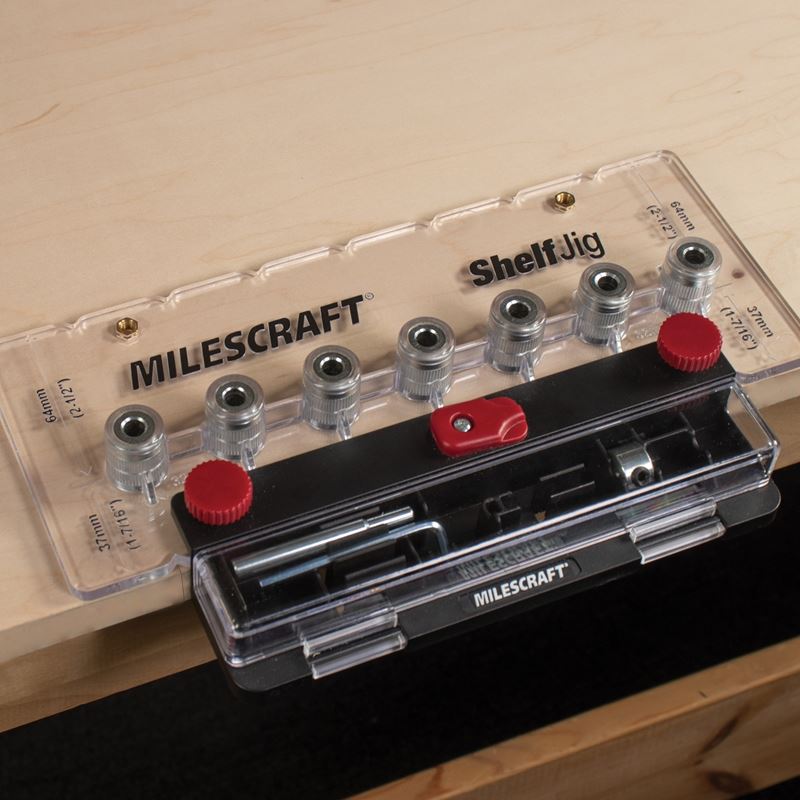

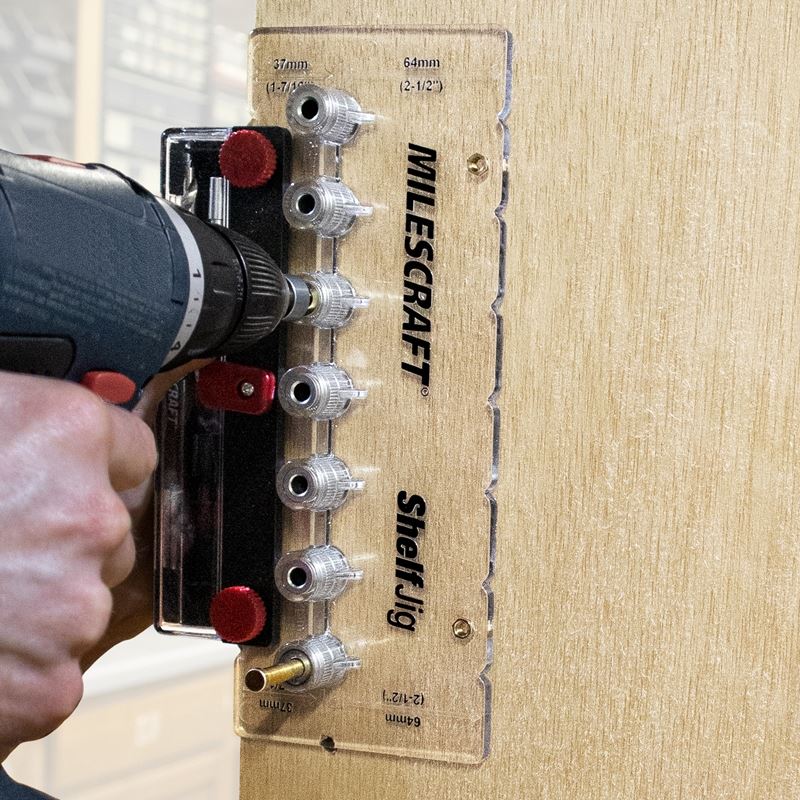

Create custom cabinet shelving like a pro with the Milescraft ShelfJig. You can drill up to 7 holes at once with the error reducing, see-through body, then reposition for the next set using the included indexing pins. The centering notches built into the jig make setting it in place a snap. The ShelfJig features standard 32mm spacing between holes, and the guide fence can be repositioned to give you 37mm or 64mm setbacks. Removing the guide fence allows for easy access to the back of the cabinet box. Included with the jig are two different drill bits to complete holes for all of the most common shelf pins in the market. The quick release, impact ready hex-shaft makes changing bits quick and easy. The detachable guide fence also acts as convenient storage for parts that are not in use.
INCLUDES:

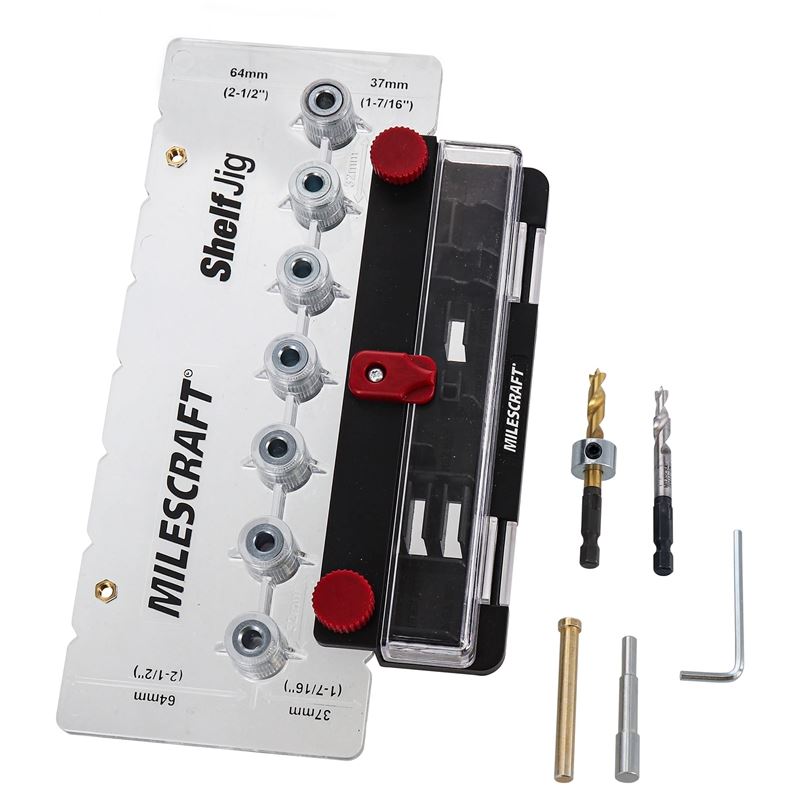

Jig Body, Detachable Fence with Storage, 1/4in Drill Bit, 5mm Step Drill Bit, Depth Stop, 1/4in Indexing Pin, 5mm Indexing Pin, 3mm Hex Key
features:
Strong, clear polycarbonate construction increases visibility and decreases errors
Seven hardened steel drill guides help to create straight, true shelf pin holes
Standard 32mm spacing between bushings
Bushings are offset for common 37mm and 64mm shelf pin locations and marked on the jig
Centering grooves help with aligning the jig to your pencil marks
Convenient removable storage case functions as edge guide
Index pin allows you to reposition the jig to create continuous holes
Specifications
| Hole Diameters | 1/4 in and 5mm |
|---|---|
| Hole Spacing | 32mm |
| Hole Setback | Detachable fence can be changed to provide either 37mm or 64mm setbacks |
| Number of Guide Bushings | 7 |
| Bushing Material | Hardened Steel |
MILESCRAFT 1343 SHELFJIG SHELF-PIN HOLE JIG
Create custom cabinet shelving like a pro with the Milescraft ShelfJig. You can drill up to 7 holes at once with the error reducing, see-through body, then reposition for the next set using the included indexing pins. The centering notches built into the jig make setting it in place a snap. The ShelfJig features standard 32mm spacing between holes, and the guide fence can be repositioned to give you 37mm or 64mm setbacks. Removing the guide fence allows for easy access to the back of the cabinet box. Included with the jig are two different drill bits to complete holes for all of the most common shelf pins in the market. The quick release, impact ready hex-shaft makes changing bits quick and easy. The detachable guide fence also acts as convenient storage for parts that are not in use.
