MILESCRAFT 1403 SawGuide
MILESCRAFT 1403 SawGuide is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

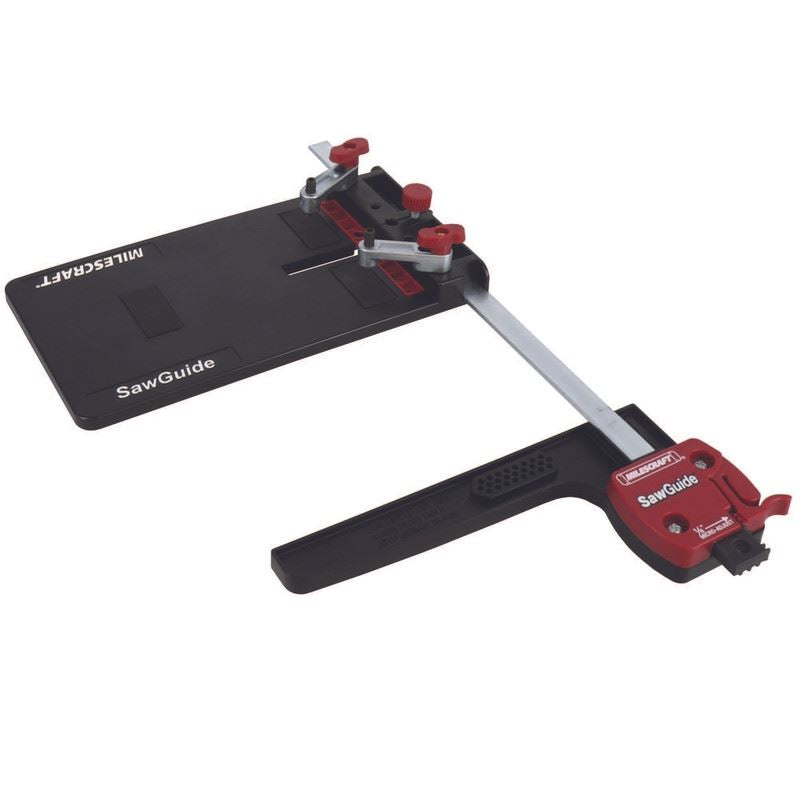

The new and improved Milescraft SawGuide turns hand-held circular and jigsaws into precision cutting tools. Using the SawGuide, you can make long, difficult edge cuts without the use of a table saw. Speed through these tough cuts, at home or in the field, and make sure they come out right every time. Users can quickly set up their saw to make straight, angle, bevel, and rip cuts. When flipped over, the SawGuide becomes a circle cutting guide for your jigsaw and can make circles from 6 in to 24 in in diameter. The SawGuides universal non-slip base holds your saw firm ensuring straight final cuts and works with almost any circular saw or jigsaw. Whether right-handed or left, the versatile and reversible edge guide can be configured on both sides of the SawGuide to ensure comfortable and safe operation. The long edge guides your saw all the way through the cut ensuring clean entry and exit cuts.
features:

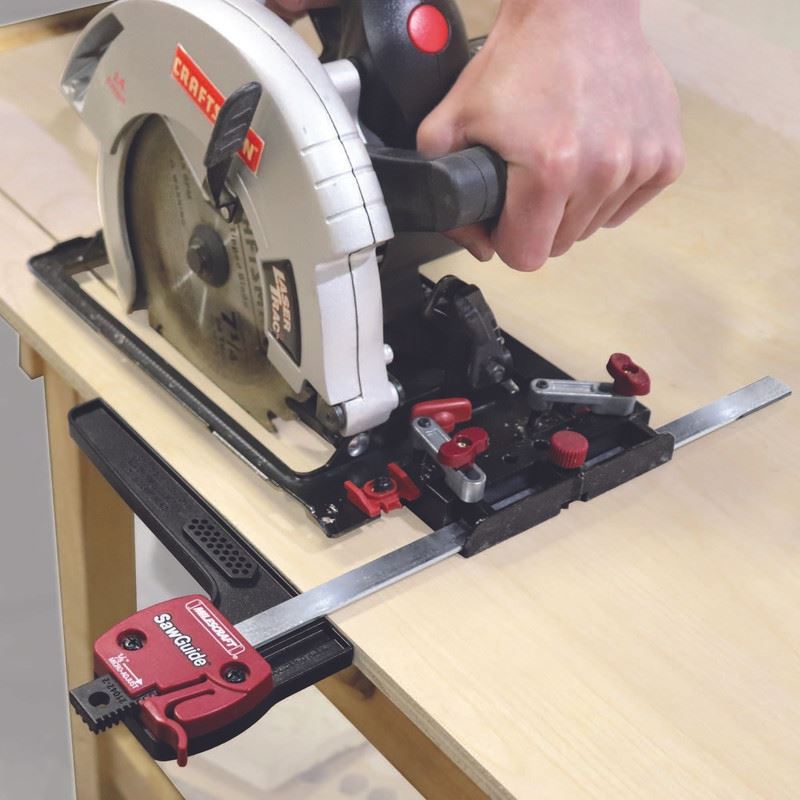

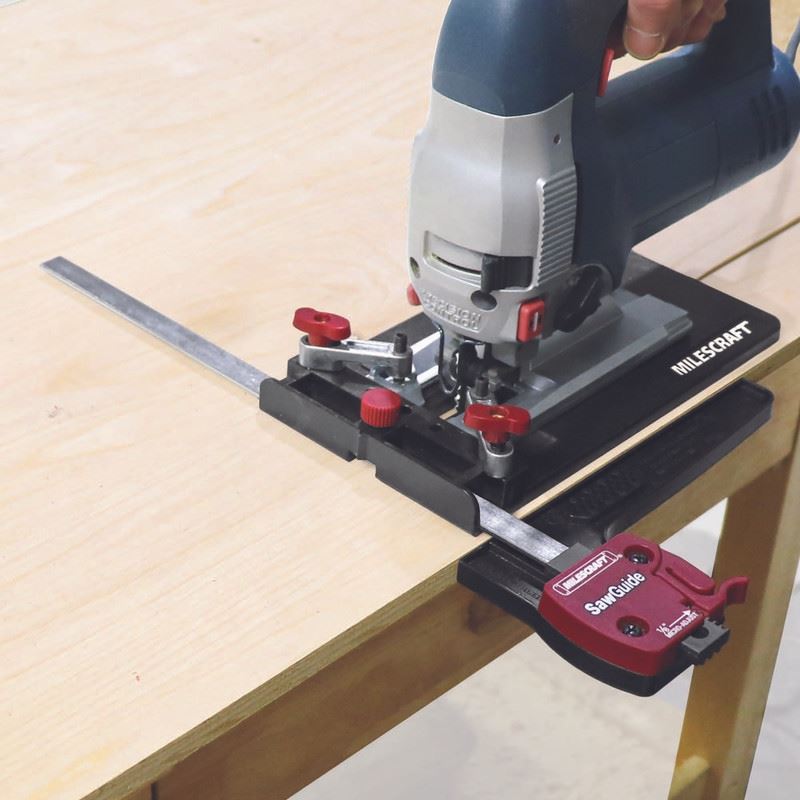

Edge Cutting - With Circular Saws & Jig Saws - Extends cutting range from 1in to 11.5in from the edge of workpiece with jigsaws and Extends cutting range from 1in to 14in from the edge of workpiece with circular saws

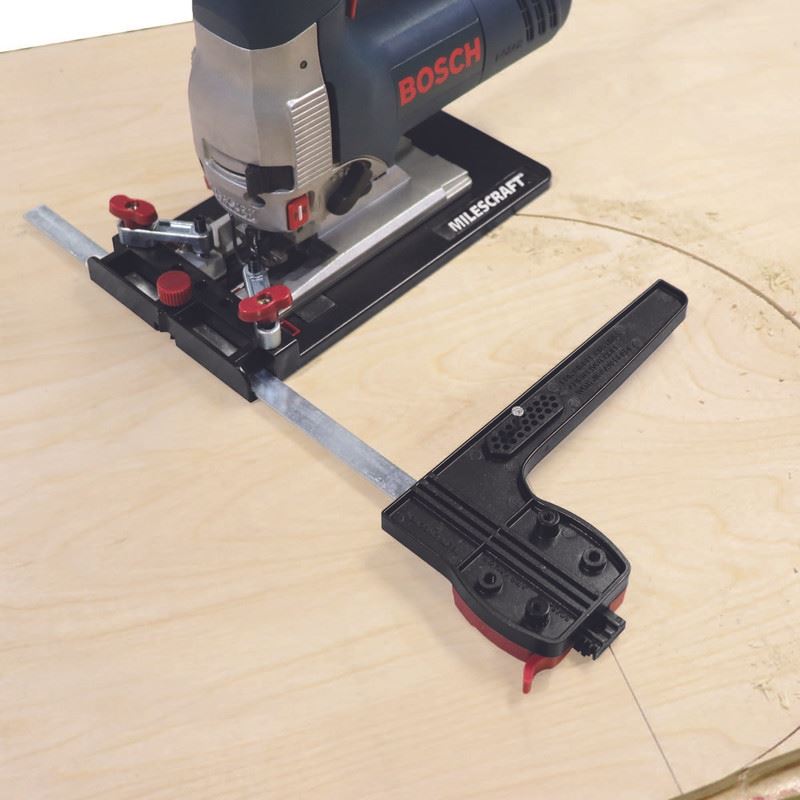

Circular Cutting With Jig Saws - Cuts circles from 6in to 24in in diameter
Universal Saw Base with Non-Slip Pads - Provides maximum stability and hold to keep your saw in place during use
Accepts jigsaws & circular saws with left or right-sided blades
Reversible Edge Guide - Long edge guide for accurate cuts all the way through your stock
Guide Bar - 16in (410mm) long, 1/8in (3mm) thick
Mounting Clamps - Metal clamps secure saws to the saw base
Removable Bevel Foot - For saws that dont have a flat base
Pivot Holes - Pivot holes for cutting a circle with a jigsaw
Thumb Lever Micro-Adjustment - Exclusive trimming feature allows you to adjust the length of cut by 1/8in increments without tools
Specifications
| Circle Cutting | Cuts circles from 6in to 24in (610mm) in diameter (w/jig saw) |
|---|---|
| Edge Cutting (Jigsaw) | 1in (25mm) to 11.5in (292mm) |
| Edge Cutting (Circular Saw) | 1in (25mm) to 14in (355mm) |
| Guide Bar Length | 16in (410mm) |
