Festool  |  SKU: 576863

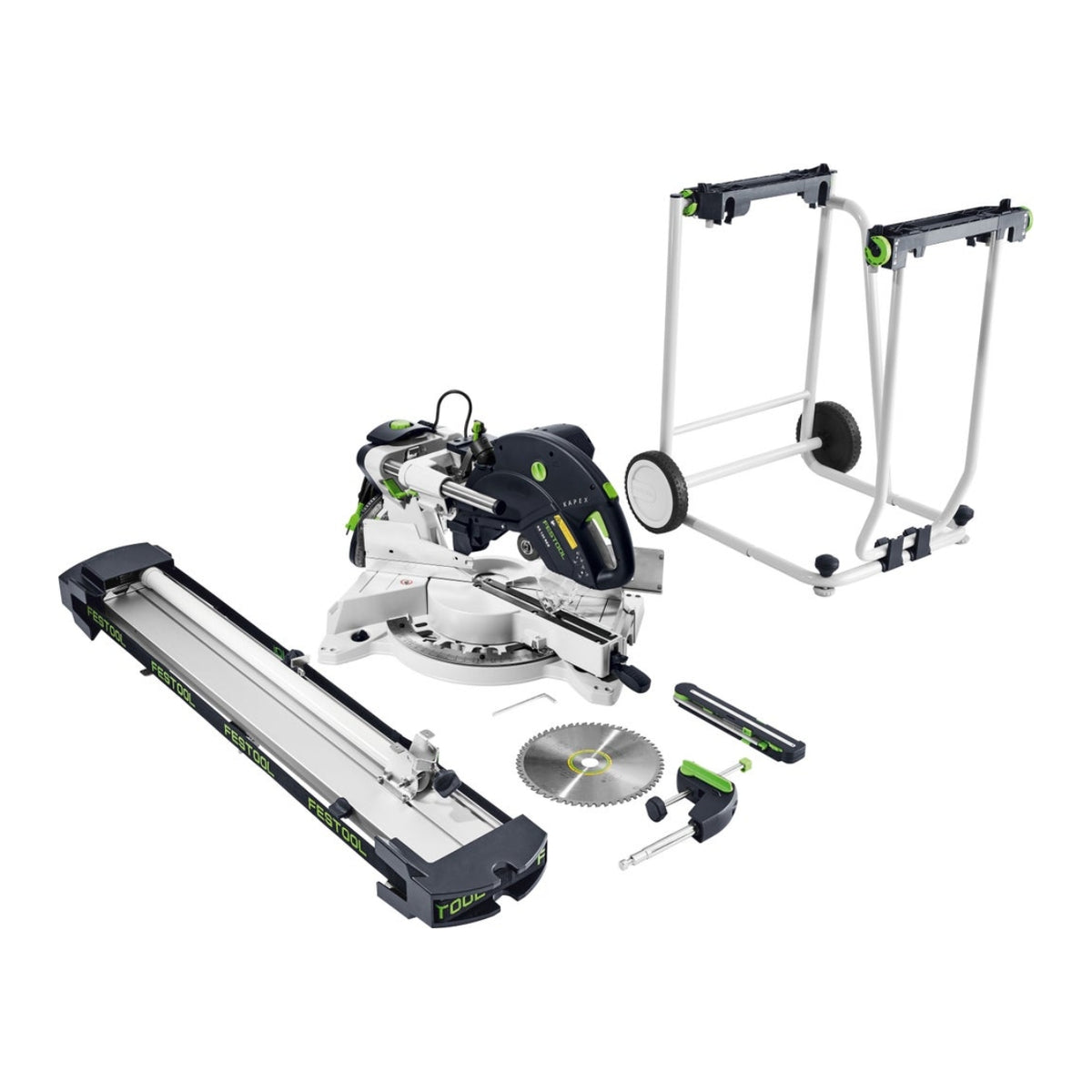

FESTOOL 576863 KS 120 + UG Set Bundle

$3,149.00 CAD
Shipping calculated at checkout.

Earn [points_amount] when you buy this item.

Description

FESTOOL 576863 KS 120 + UG Set Bundle


features:

The KAPEX features a rail forward design which increases precision and creates a compact footprint while preventing head play for accurate cuts.
- Easily align cuts from the left or right side using the dual lasers. The lasers clearly define the material which will be removed during the cut.
- Micro-adjustable bevel angle with up-front rotary knob. Large bevel scale and fine pointers make it easy to set precise bevel angles.
- Dust extraction up to 91% with behind the cut dust hood and pivoting 36 mm hose

.

Specifications

PRODUCT OVERVIEW

FESTOOL KAPEX Sliding Compound Miter Saw

QTY 1
Description
Features
Specification


Includes
- HW universal saw blade W60
- angle transfer device
- Hold Down Clamp
- hex key, WAF 6


Functions

The KAPEX is the most advanced sliding compound miter saw in the market today — making cuts that rival the finest trim work. Light in weight and heavy in features, the KS 120 is the perfect saw for the workshop or the jobsite. Effective dust extraction, precise cuts, easy adjustments, and quality components are some of the features that should make this saw the number one choice of professional tradesmen.

All Festool power tools include a 3-year wear-and-tear warranty, 2-day standard repair time, and 1-month satisfaction guarantee.

Precision

When you need the most precise cut imaginable every time, the KAPEX is second to none.

Compact

Whether you’re carrying the KAPEX to a job site or keeping it in your workshop, you’ll appreciate the lightweight, compact design of this portable saw.

Dust control

Work wherever you need to — in client homes, in small workshop, on outdoor job sites — without worrying about the mess and time-waste of dust.

Product details

KS 120 REB

  • Portability

    The ergonomically designed carrying position combined with its light weight (47 pounds) make the Kapex easy to move around the job site. When being transported, the Kapex's head is locked down making it compact and preventing movement. The two handle locations keep the center of gravity of the Kapex close to your body, minimizing the strain on your back. Now, that's smart! Counter Spring Balanced Bevel

    The bevel adjustment on the Kapex is counter spring balanced meaning that you can position the bevel at any angle and the head will stay in position even when it is not locked in place. This makes angle adjustment much less tedious and more accurate. Bevel gauges are on both sides of the saw for quick, easy reference. Using the micro adjustment knob, the Kapex can be dialed in very accurately to fractions of a degree.

    Compact and lightweight
    With a rail-forward design, the KAPEX can be placed against a wall for all cutting tasks, maximizing the work space.

    Bevel Lock Knob
    Use the Bevel Lock Knob conveniently located on the top of the Kapex to control the bevel positive detents and to lock the bevel angle. The counter spring balanced head on the Kapex allows you to position the bevel and let go of the saw with the head moving. Use the fine adjustment knob to control bevel angles in fractions of a degree. The bevel knob has three settings: positive detents at 0 and -45 degrees, free movement between -45 and +45 degrees and free movement up to 47 degrees. Bevels can be made to the left or right and the bevel gauge appears on both sides of the saw.



  • The KAPEX features a rail forward design which increases precision and creates a compact footprint while preventing head play for accurate cuts.
  • - Easily align cuts from the left or right side using the dual lasers. The lasers clearly define the material which will be removed during the cut.
  • - Micro-adjustable bevel angle with up-front rotary knob. Large bevel scale and fine pointers make it easy to set precise bevel angles.
  • - Dust extraction up to 91% with behind the cut dust hood and pivoting 36 mm hose
Idle Engine Speed 1400 - 3600 RPM
Inclination Angle 47/47 °
Mitre Angle 50/60 °
Drive Type 120 VAC
Crown moulding diagonal cut 45°/90° 6-5/8" (168 mm)
Special cutting depth 45°/90° (right) 3/4" (20 mm) x 4-3/4" (120 mm)
Blade Diameter 10-1/4" (260 mm)
Dust extraction connection dia. 1-1/16"/1-7/16" (27/36 mm)
Special cut. depth 45°/90° (left) 1-1/2" (40 mm) x 4-3/4" (120 mm)
Dimensions (W x D x H) 28" (713 mm) x 19-3/4" (500 mm) x 18-1/2" (470 mm)
Cable Length 11.482 ft (3.5 m)

Underframe UG-KAPEX KS 120

QTY 1
Description
Features
Specification

Rugged, mobile base provides the foundation for precise and efficient material processing on the jobsite or in the shop. Designed for fast and simple setup and breakdown, the UG stand is built for maximum mobility.

  • Convenient, collapsable design for transport of Festool KAPEX miter saw
  • Rugged, mobile base provides the foundation for precise and efficient material processing on the jobsite or in the shop
  • Designed for fast and simple setup and breakdown, the UG stand is built for maximum mobility
  • Simple folding in for transport


  • Convenient, Collapsable Design for Transport of Festool Kapex Miter Saw
  • Rugged, Mobile Base Provides the Foundation for Precise and Efficient Material Processing on the Jobsite or in the Shop
  • Designed for Fast and Simple Setup and Breakdown, the UG Stand is Built for Maximum Mobility
  • Optional Extensions for Supporting Long Material can be Purchased Separately or as a Package Set

Trimming attachment KA-UG-KS 120-R/L

QTY 1
Description
Features
Specification

Includes KA-UG-KS 120-R/L

  • measurement scale
  • adjustable stop
  • telescopic slide-out scale
  • fold-out pedestal and carry case
  • in carton

Two folding extensions (left and right) with tool-free connection to the KAPEX. Provides stock support with integrated flip stop, measurement scale and adjustable leg. Expands from 58-1/4” (1480 mm) to 94-1/2” (2400 mm). Consists of Left Extension 497 353 and Right Extension 497 352. Supplied with Metric scale.

  • Supports material up to 94-1/2 inches in length
  • Includes flag stop for repeat cuts, metric tape measure, right and left extensions
  • Attaches tool-free to KAPEX UG stand, sold separately
  • Consisting of KA-UG-L and KA-UG-R
  • For use in conjunction with the Festool UG-KAPEX KS 120 base frame

  • Supports Material Up to 94-1/2 Inches in Length
  • Includes Flag Stop for Repeat Cuts
  • Integrated Metric Tape Measure
  • Attaches Tool-Free to Kapex UG Stand, Sold Separately
  • Includes Right and Left Extensions
