| SKU:
578307

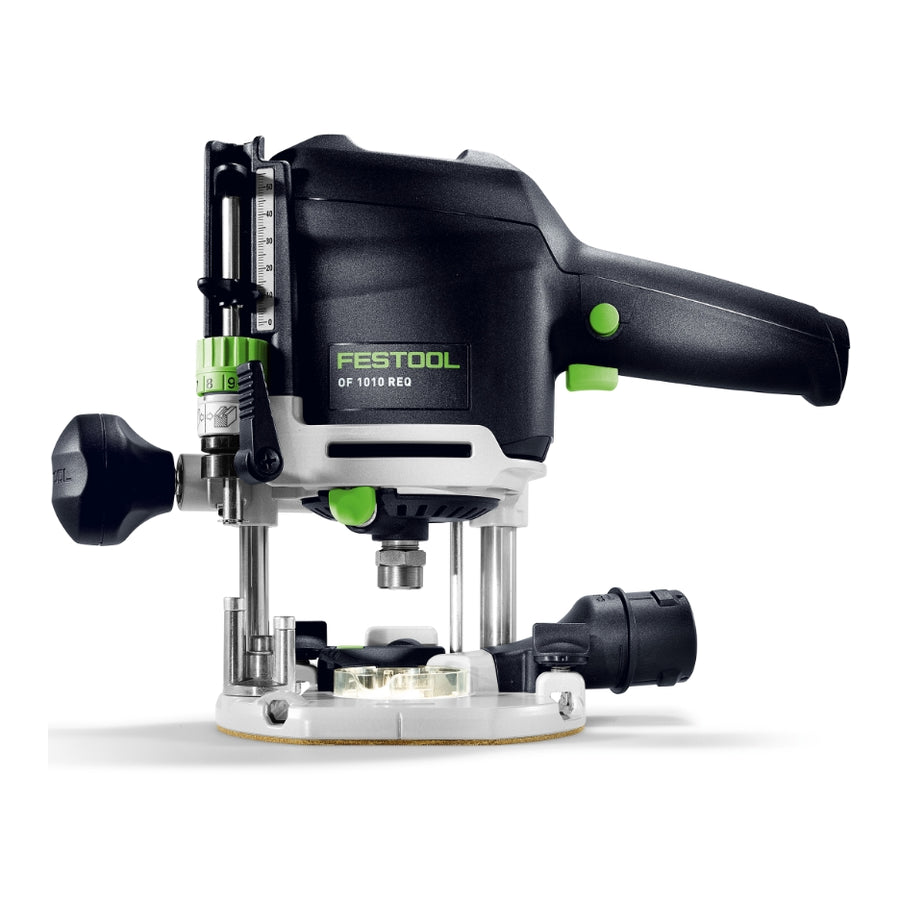

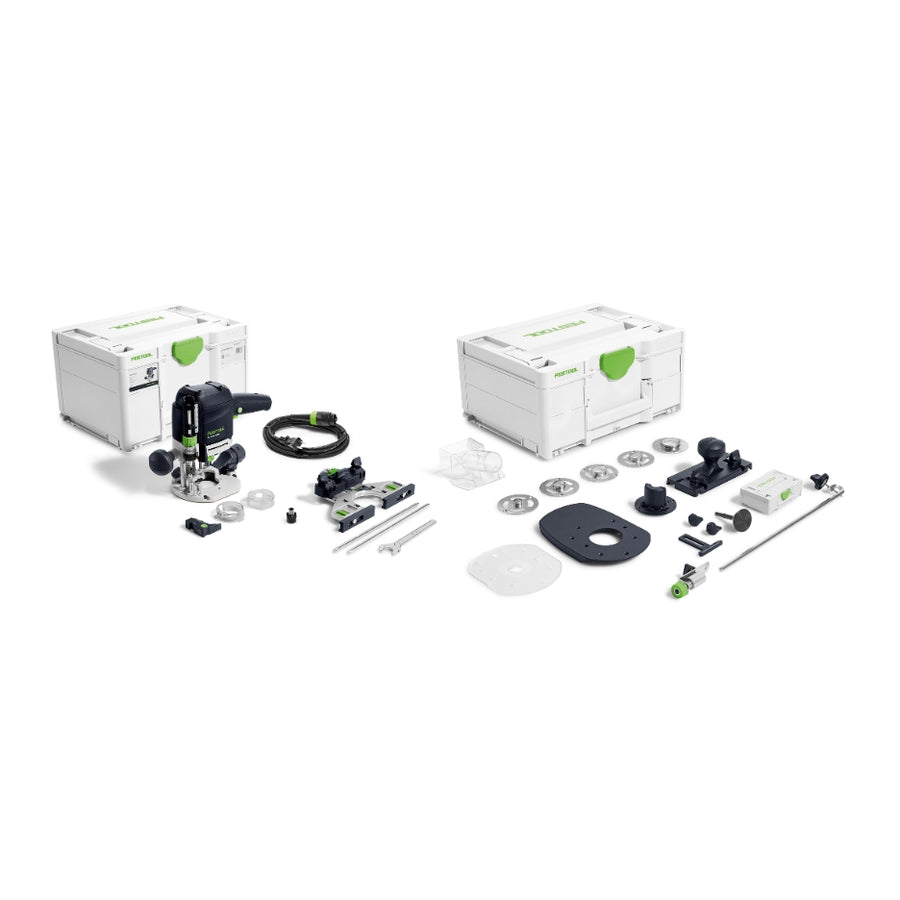

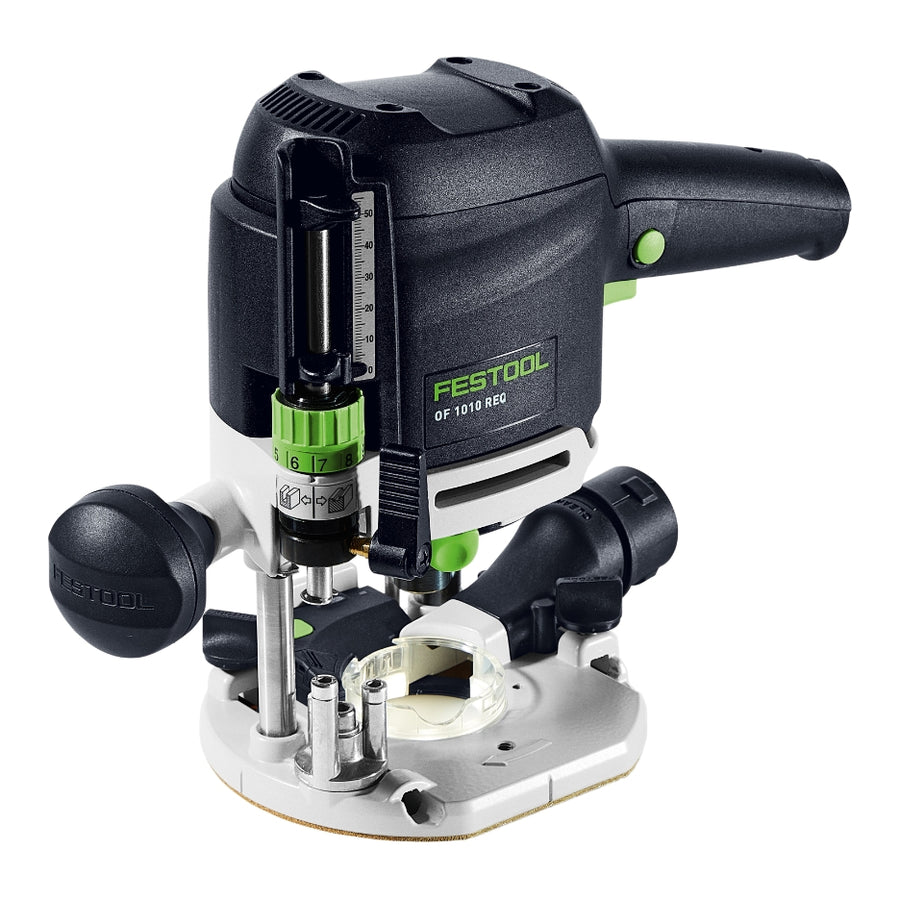

Festool 578307 Router OF 1010 REBQ-Set
Festool 578307 Router OF 1010 REBQ-Set is backordered and will ship as soon as it is back in stock.
Description
The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.
features:
Rounding, chamfering, rabbetting and profiling edges
Recessing metal fittings
Grooving rear panels, recessing dovetail or routing plasterboard with the guide system (edging technology)
Producing rows of holes in cabinets using the hole series system LR 32
Guided Routing
PRODUCT OVERVIEW
Festool 578017 Router OF 1010 REBQ-Plus
QTY
1
The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.
- Ergonomic: Thanks to the compact design and low weight.
- Unobstructed view: Clearly visible routing area.
- Well lit: Thanks to the rechargeable LED work light in the base.
- Quick: Quick and easy bit changes
- Precise: Simple routing depth adjustment, accurate to 1/256" (1/10 mm).
- Steady: Torsionally rigid router base due to guide columns on both sides.
- Parallel edge guide: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool-free adjustable fence pieces.
- Smart: Designed with restart protection.
- Material specific: MMC electronics for optimal work and temperature monitoring.
- Integrated: Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters.
| Power consumption | 1010 watt |
| Idle engine speed | 9500 - 23000 RPM |
| Drive type | 120 VAC |
| Routing depth fine adjustment range | 5/16" (8 mm) |
| Weight | 7.06 lbs (3.2 kg) |
| Collet dia. | 1/4" - 5/16" (6 - 8 mm) |
| Dust extraction connection dia. | 1-1/16" (27 mm) / 1-13/32" (36 mm) |
| Routing stroke | 2-1/8" (55 mm) |
| Cable length | 13.123 ft (4 m) |
| Bench opening | 2" (50 mm) |
Festool 578046 Accessory Kit ZS-OF 1010 M - For OF 1010
QTY
1
The practical Systainer³ holds many accessories for your applications: Guide rail adapters, copy rings, sub-bases and more. Everything is neatly stored and always at hand. It also has extra space for your router bits, so they are well protected.
- Versatile: Equipped for many applications.

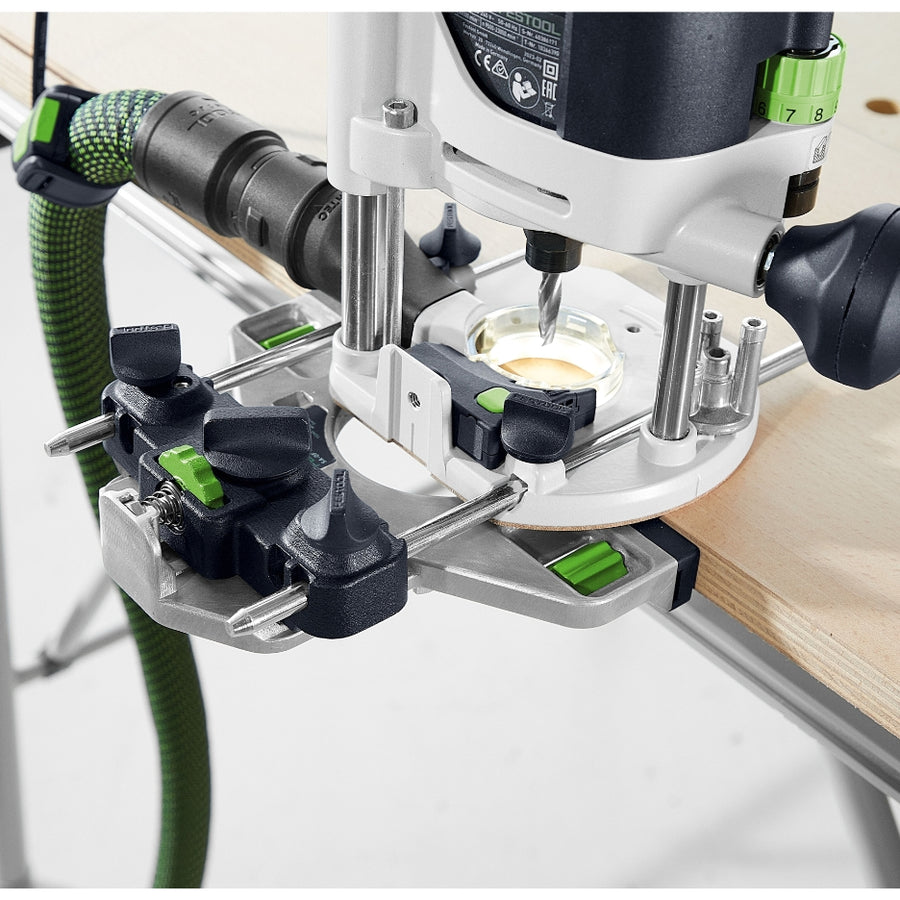

- Straight: With the guide rail adapter and the support foot, the router can be guided with the guide rail so that it's precisely straight.
- Circular: Circles up to a diameter of 29-15/16" (760 mm) can be routed with the trammel unit.
- Precise: The fine adjuster allows the guide rail adapter and the trammel unit to be adjusted very precisely.
- Transparent: Perfect view of the workpiece and no tipping over thanks to the transparent base runner with a small opening.
- Steady: The base runner with a wide support steadily guides the router on edges
- Copy routing: Different copying rings for reliably guiding the router when routing with a template
- Precise: The copying rings are centred in the base plate of the router with the centring mandrel. This produces uniform routing results
- Clean: The unique chip deflector enables optimal dust extraction when routing on the edge.
- Storage for small parts: Micro Systainer³ SYS3 XXS for small materials and screws.
- Practical: Storage options with space for router bits.
- System efficiency – everything neatly packed in the Systainer³.
- The most important accessories of the OF 1010 clearly organised and within reach in a Systainer
Specifications
| Power consumption | 1010 watt |
| Idle engine speed | 9500 - 23000 RPM |
| Drive type | 120 VAC |
| Routing depth fine adjustment range | 5/16" (8 mm) |
| Weight | 7.06 lbs (3.2 kg) |
| Collet dia. | 1/4" - 5/16" (6 - 8 mm) |
| Dust extraction connection dia. | 1-1/16" (27 mm) / 1-13/32" (36 mm) |
| Routing stroke | 2-1/8" (55 mm) |
| Cable length | 13.123 ft (4 m) |
| Bench opening | 2" (50 mm) |
