| SKU:
5263-21

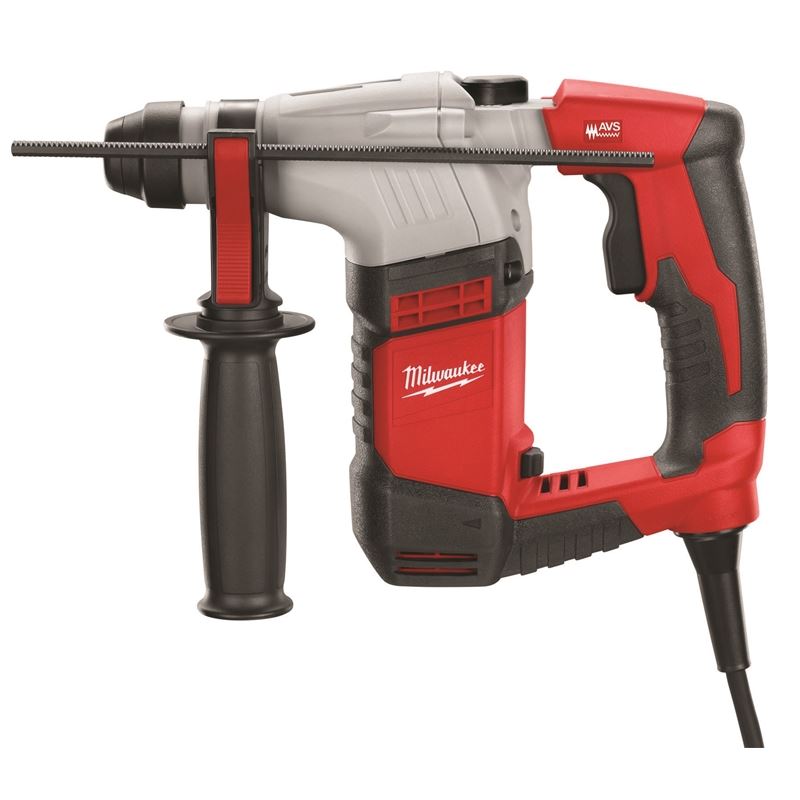

5263-21 5/8 in. SDS PLUS Rotary Hammer Kit
Earn [points_amount] when you buy this item.
5263-21 5/8 in. SDS PLUS Rotary Hammer Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster with plenty of drilling power. At just 10.9 in. long and 4.6 Lbs., Milwaukee Tool 5/8 in. SDS-Plus rotary hammer makes drilling overhead and in tight spaces easier, yet its powerful enough for most professional applications. With a 5.5 amp motor, it delivers 0-3, 700 RPM, 0-4,400 bpm and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee's unique anti-vibration system provides added comfort by minimizing vibration. A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.
(1) Side HandleSide Handle, (1) Carrying CaseCarrying Case
features:
Powerful 5.5 amp Motor: Delivers 0-3, 700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque, providing up to 65% faster drilling speeds
Lightweight 4.6 lb design: reduces fatigue when you drill overhead and in horizontal applications
Compact 10.9 in. profile: lets you work more efficiently in tights spaces
2-Mode operation: choose rotary hammer or rotation only for added versatility
AVS - anti vibration system: delivers maximum comfort by minimizing vibration
Mechanical clutch: protects the motor when the bit binds
Specifications
| General Chuck Type | SDS-Plus |
|---|---|
| Amps | 5.5 |
| No Load Speed | 0-3, 700 |
| Handle Style | Drop Motor |
| Clutch | Yes |
| Voltage | 120 V |
| Weight | 4.6 lbs |
| Power Source | Electric |
| Length | 10-9/10" |
| Cord Length | 10' |
| No Load RPM | 0-3, 700 |
| No Load BPM | 0-4, 400 |
| Tool Warranty | 5 Years |
| Cord Type | Double Insulated |
| Electronic Feedback | No |
| Bit Shank | SDS-PLUS |
| Blow Energy | 1.5 ft-lbs |
| Drilling Mode | Rotary Hammer and Rotation Only |
| Vibration Reduction | Yes |
| Trigger Lock | No |
| Solid Bit Capacity | 5/8" |
| Thin Wall Core Bit Capacity | 2-1/8" |
| Thin Wall Bit Capacity | 2-1/8" |
5263-21 5/8 in. SDS PLUS Rotary Hammer Kit
The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster with plenty of drilling power. At just 10.9 in. long and 4.6 Lbs., Milwaukee Tool 5/8 in. SDS-Plus rotary hammer makes drilling overhead and in tight spaces easier, yet its powerful enough for most professional applications. With a 5.5 amp motor, it delivers 0-3, 700 RPM, 0-4,400 bpm and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee's unique anti-vibration system provides added comfort by minimizing vibration. A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.
(1) Side HandleSide Handle, (1) Carrying CaseCarrying Case
