| SKU:
CTS-120A60
SawStop CTS-120A60 10in Compact Table Saw- 15A 120V 60Hz
Earn [points_amount] when you buy this item.
SawStop CTS-120A60 10in Compact Table Saw- 15A 120V 60Hz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

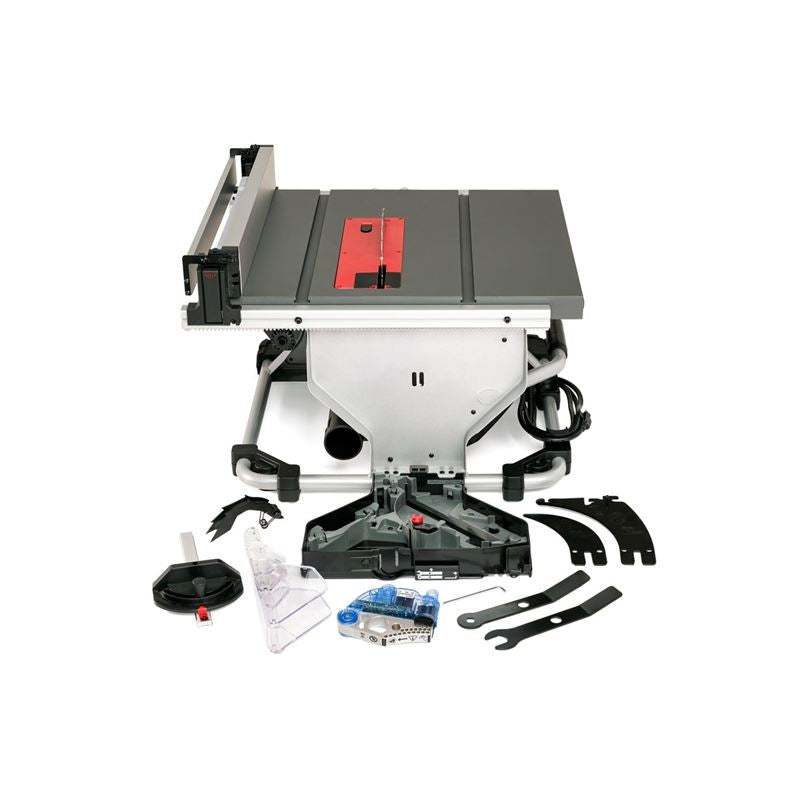

The SawStop Compact Table Saw features SawStop's patented safety system with the mobility you need to work from anywhere - at home or on the job site. With a 10in blade and durable construction, you'll have the power and accuracy you need. Note: The Compact Table Saw does not accommodate Dado bladesINCLUDES:
(1) Miter Gauge
(1) Brake Cartridge (installed)
(1) 4 mm Hex Key
(2) Blade Wrenches
(1) Riving Knife (installed)
(1) Blade Guard with Spreader and Anti-Kickback Pawls
(1) 24-Tooth Ripping Blade (installed)
(1) Push Stick
(1) Standard Lockdown Insert (installed
features:
SawStops patented Safety System stops on contact with skin.

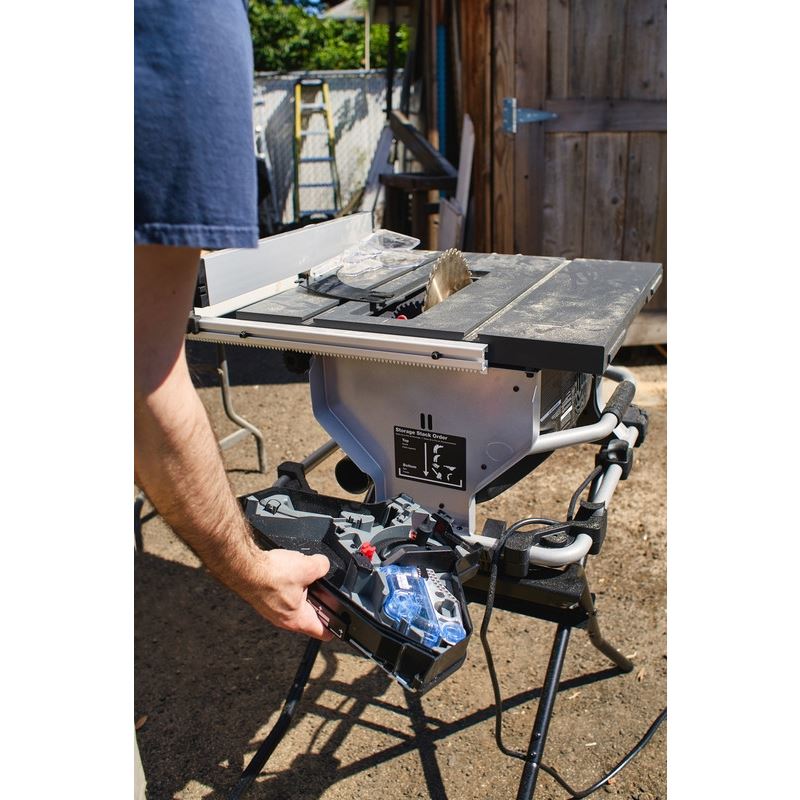

Portable Durability: Heavy duty construction, thats built to last, provides the stability you need for smooth cuts on the job site. The compact size, carry handle and on-board storage mean you have everything you need at hand.

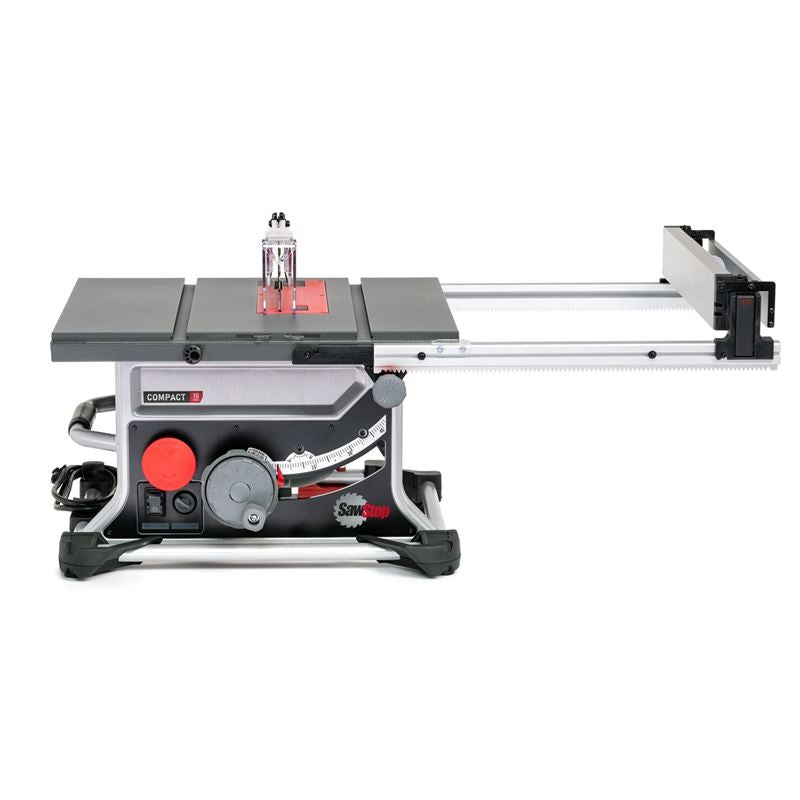

Rack & Pinion Fence: Easy to adjust or remove and always square, the rack & pinion fence has built in high and low shelf to support all types of cuts.

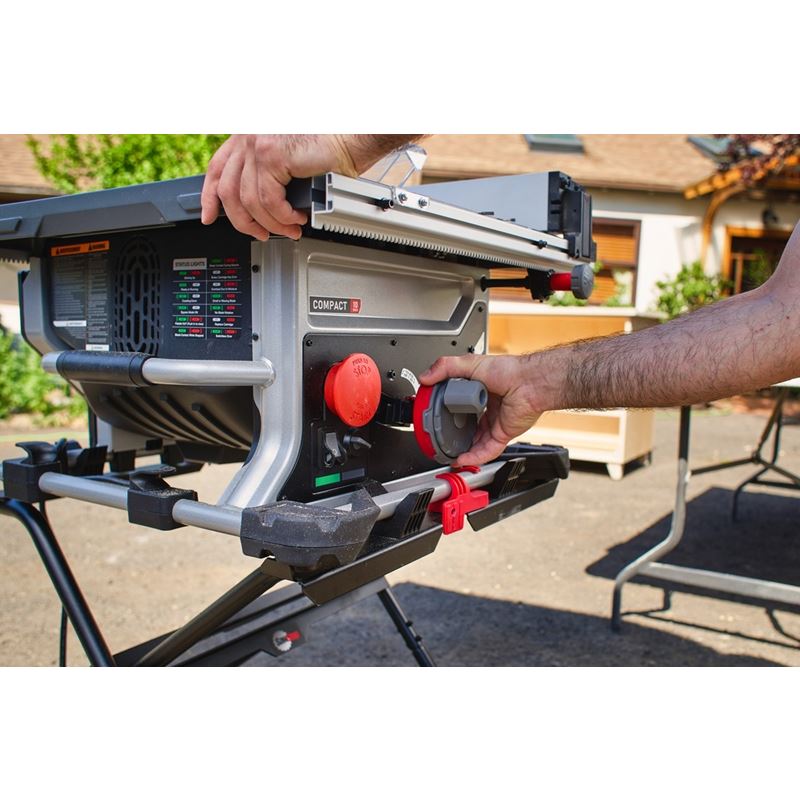

Quick Tilt: Quickly and easily tilt the blade to your ideal angle. Further fine tune with the micro tilt adjust feature.
Cut & Rip Capacity: A 10in blade and 24.5in fence extension provide exceptional depth of cut and cut capacity
Specifications
| Motor Configuration | 120 VAC 60 Hz, Universal |
|---|---|
| Amperage (A) | 15A |
| No-Load RPM | 4,000 |
| Blade | 10in (not compatible with Dado blades) |
| Max. Depth of Cut at 0 degrees | 3 1/8in (79.5 mm) |
| Max. Depth of Cut at 45 degrees | 2 1/8in (54 mm) |
| Max. Rip, Right of Blade | 24 1/2in (648 mm) |
| Max. Rip, Left of Blade | 9 1/2in (241 mm) |
| Weight | 68 lbs |
| Overall Footprint | 14 -1/4in H x 23 1/2in W x 27in D |
| Table Surface | 23in W X 22 5/8in D |
| Shipping Dimensions | 27 W x 31 D x 18 H |
| Shipping Weight | 79 lbs |
| Dust Port | 2 1/2in |
| Power Source | Electric |
