| SKU:
JSS-120A60

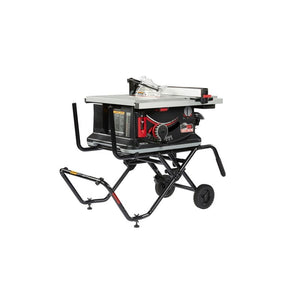

SawStop JSS-120A60 Jobsite Saw PRO with Mobile Cart Assembly - 15A 120V 60Hz
Earn [points_amount] when you buy this item.
SawStop JSS-120A60 Jobsite Saw PRO with Mobile Cart Assembly - 15A 120V 60Hz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
The SawStop Jobsite Saw Pro delivers durability, innovation and precision with a design thats built for the worksite. Take the worlds safest saw wherever the job takes youINCLUDES:
(1) Collapsible Rolling Cart
(1) High/Low T-Style Fence w/Ergolock
(1) Miter Gauge
(1) JSS Active Dust Collection Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1)Push Stick
(1) 10in Blade
(1) Zero Clearance Insert
(1) Standard Brake Cartridge
(1) Users Guide
(1) Assembly Instructions Poster
(1) Hardware Pack
(1) 3mm Hex Key
(1) 4mm Hex Key
(1) 5mm Hex Key
features:

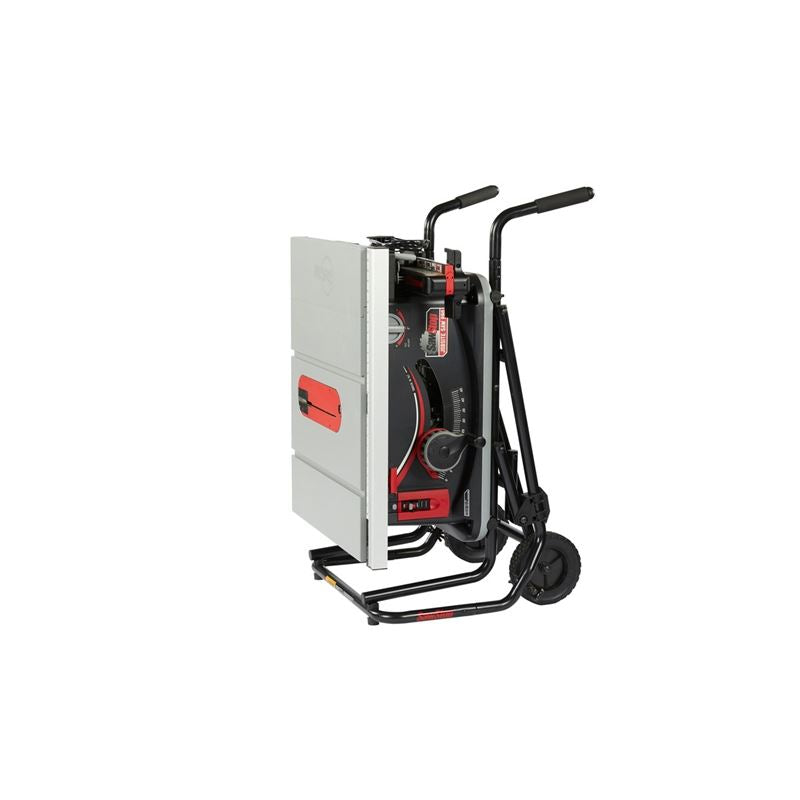

Stowed Dimensions: 26 1/2in L x 29in W x 45in H
Class-Leading Table Depth: 24 5/8in table depth means better accuracy and easier, safer cutting
One Turn Elevation: Raise and lower the blade in just one turn on the handwheel

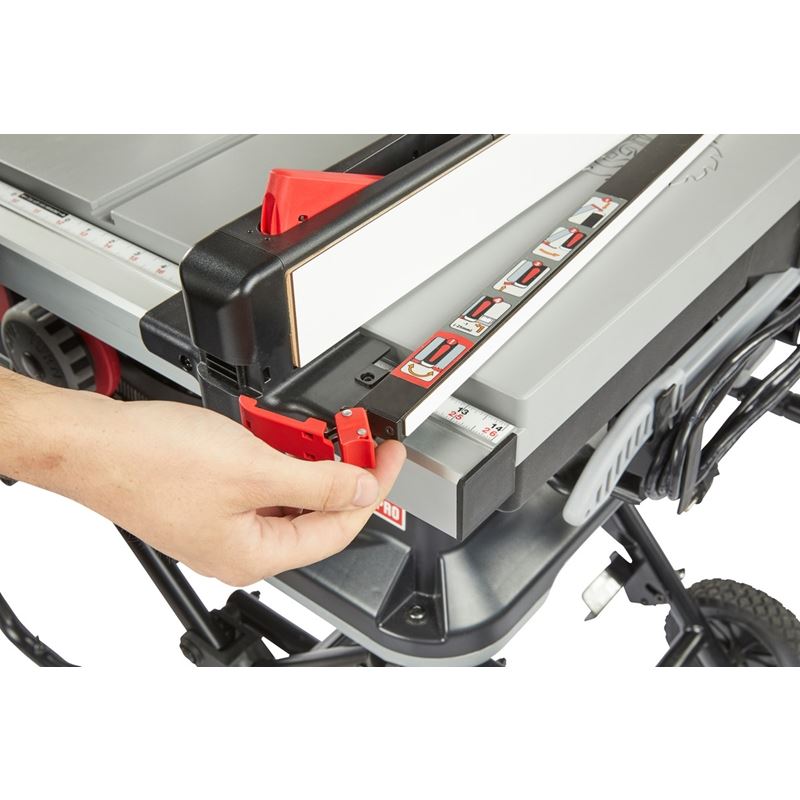

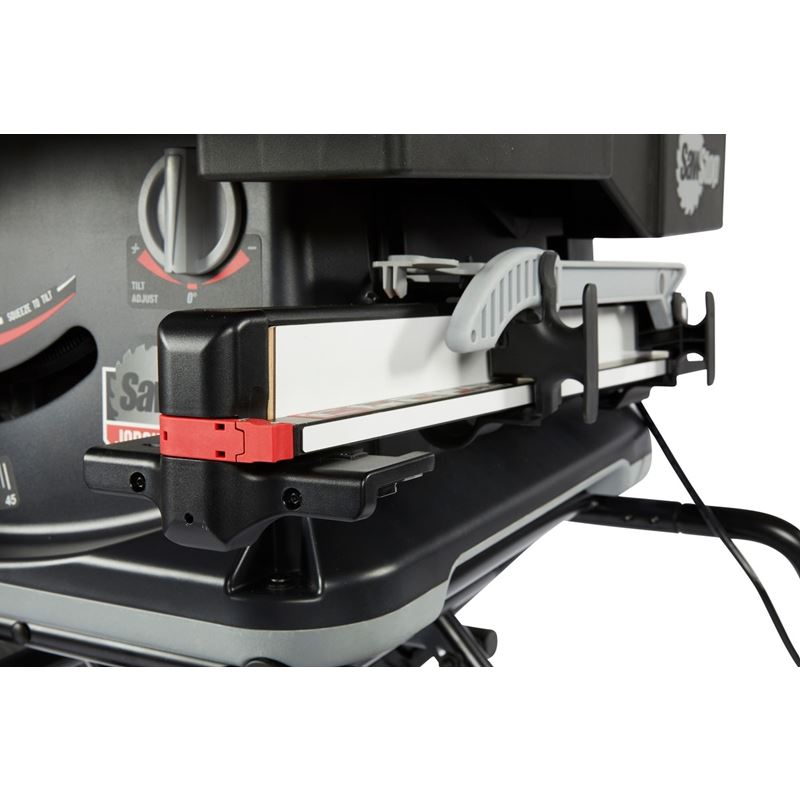

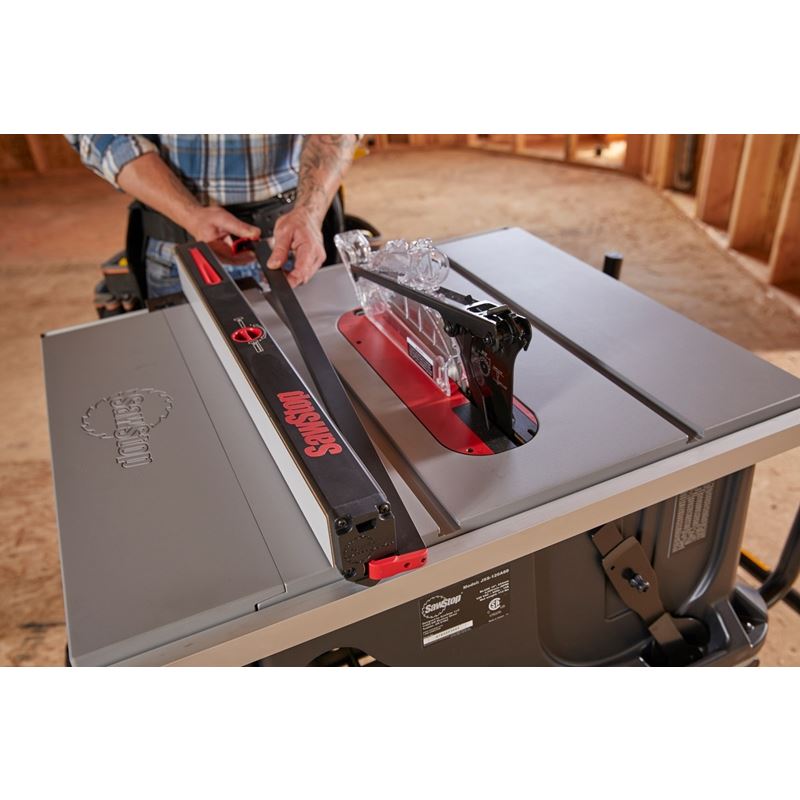

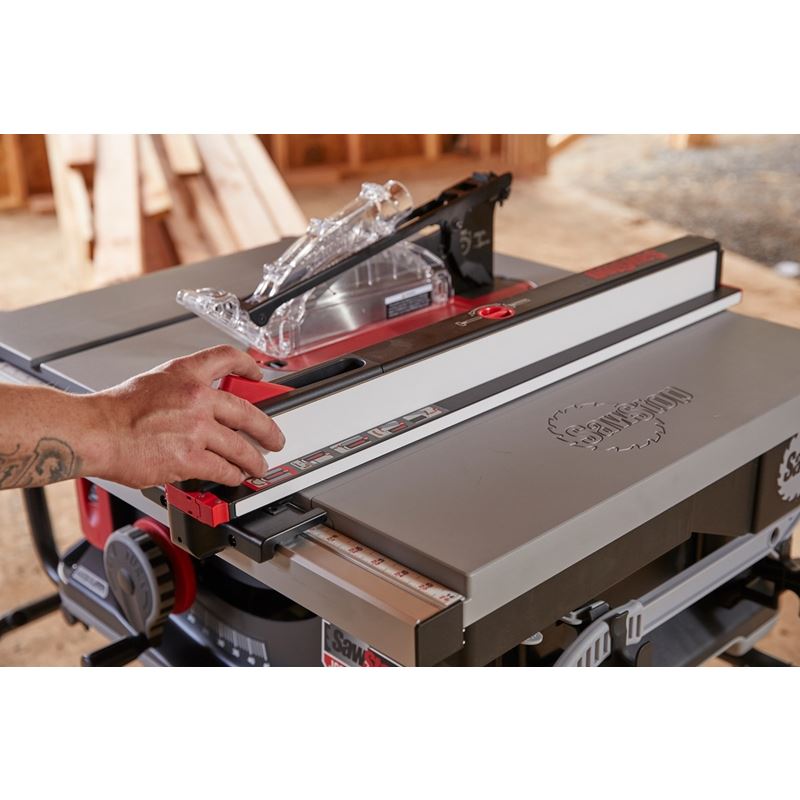

Solid Hi-Low T-Style Fence with Ergolock: Slides easily and locks firm with the push of the innovative Ergolock. 25 1/2in rip capacity

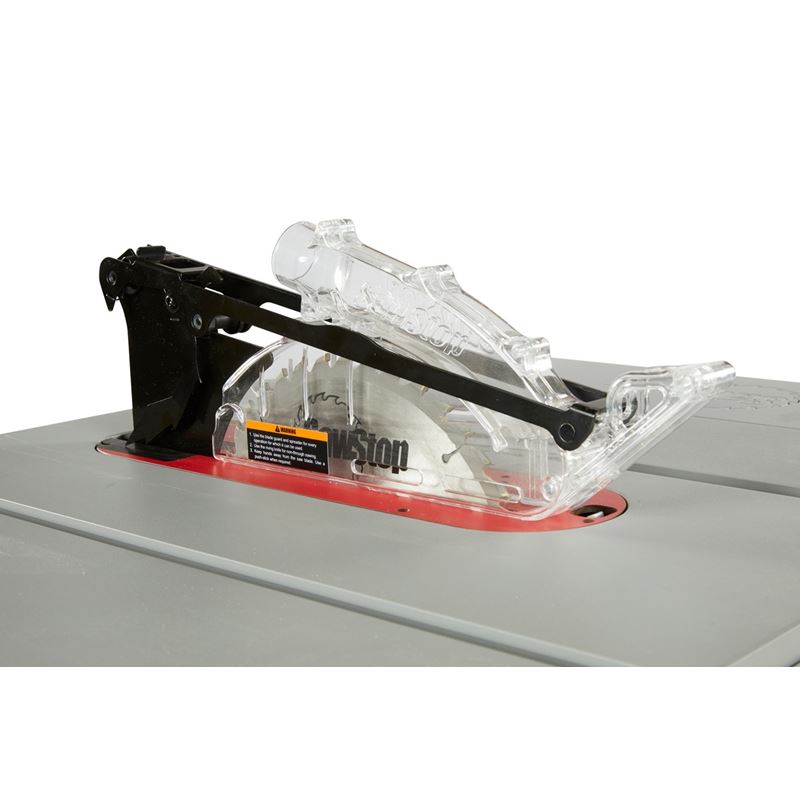

Active Dust Collection Blade Guard: Captures above table dust, helping to ensure a safer and cleaner workspace

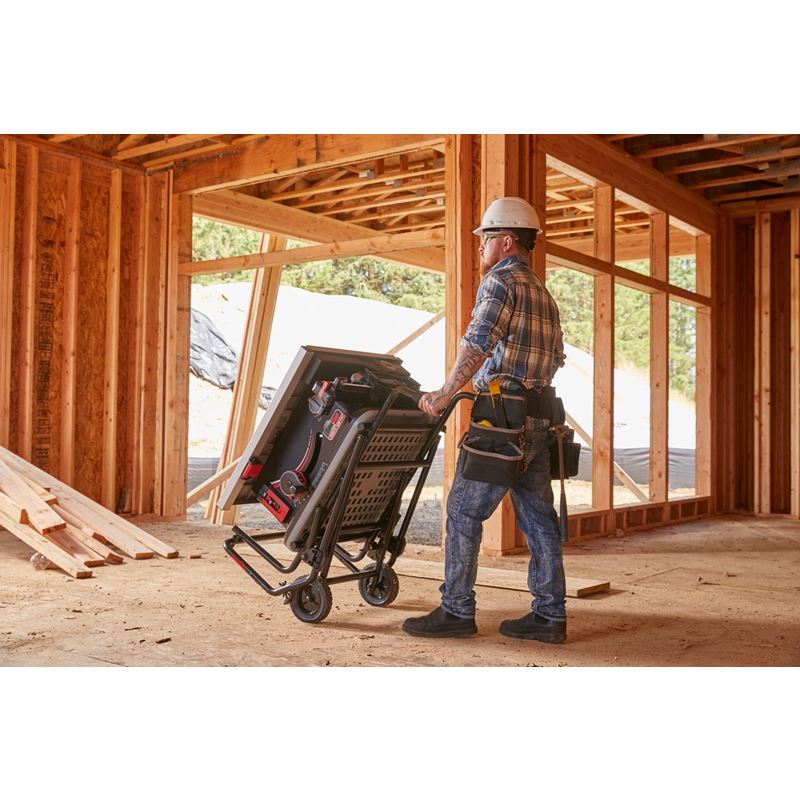

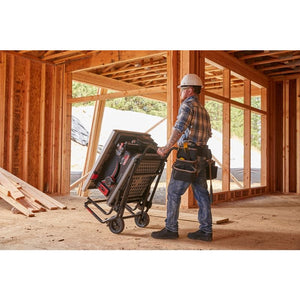

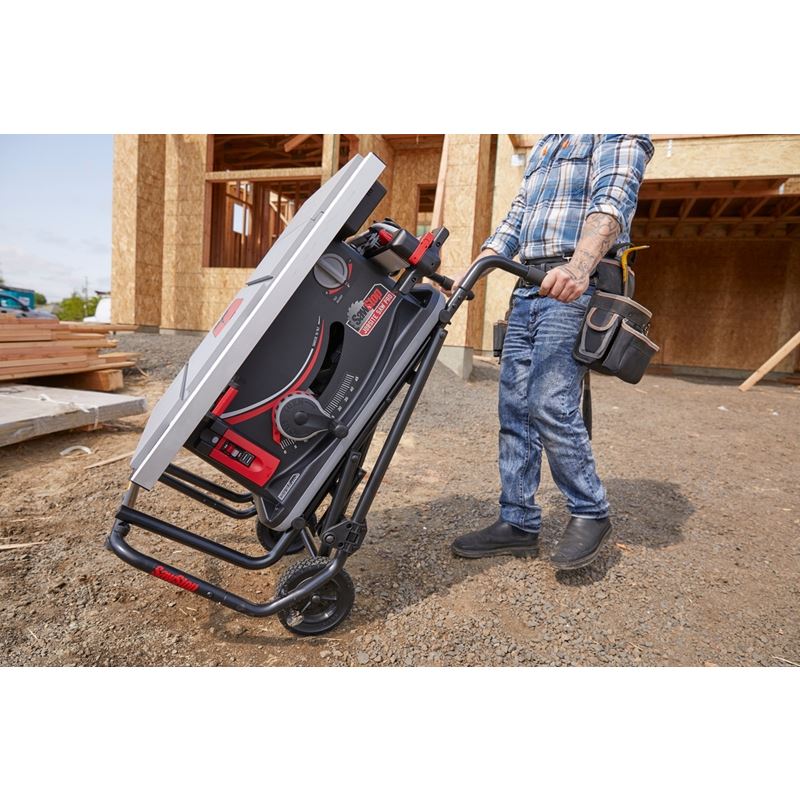

Easy Mobility: Simple, intuitive action extends the Mobile Cart for use and collapse the cart for transport
Specifications
| Motor Configuration | 120 VAC 60 Hz, Universal |
|---|---|
| Amperage | 15A |
| Cord Length | 116in |
| Motor Continuous HP | 1.5 HP |
| Motor Peak HP | 4 HP |
| Saw Dimensions without Cart (Body only) | 31-3/4in W x 28-3/4in D x 15-1/2in H |
| Saw Dimensions with Open Cart (ready to use) | 48in W x 29in D x 36in H |
| Saw Dimensions with Closed Cart (on End/stored position) | 26 1/2in W x 29in D x 45in H |
| Table Dimensions (Retracted) | 31 1/4in W x 24-5/8in D |
| Table Dimensions (Extended) | 43 3/8in W x 24-5/8in D |
| Shipping Dimensions | 32in W x 43in D x 26in H |
| Shipping Weight (with Cart) | 137 lbs |
| Weight (Saw Only) | 84 lbs |
| Weight (with Cart) | 113 lbs |
| Blade Diameter | 10in |
| Dado Diameter | 8in |
| Dado Max. Width | 29/32in |
| Bevel Angle Range | 1 to 46 |
| Max. Depth of Cut, Blade at 0 degree | 3-1/8in |
| Max. Depth of Cut, Blade at 45 degrees | 2-1/8in |
| Max. Rip Right of Blade (Extended) | 25-1/2in |
| Max. Rip Left of Blade | 9 3/4in |
| Blade Tilt | Left |
| Arbor Diameter at Blade | 5/8in |
| Table in Front of Blade (Max Elev) | 7-7/8in |
| Table Behind Blade (Max Elev) | 7-3/8in |
| Main Bearing Size | 62mm OD x 30mm ID x 16mm W |
| Second Bearing Size | 52mm OD x 25mm ID x 15mm W |
| Riving Knife/Splitter Thickness | 2.3mm (.090in) |
| Hand Wheel | Effective diameter 6.3in |
| Belts | Poly V static dissipative belt |
| Table Flatness Measured Diagonally | 0.033in Inches |
| Dust Collection Port Diameter | 2-9/16in Outside, 2-1/4in Inside |
| Active Dust Collection Blade Guard | polycarbonate, extends 1in right of blade |
| Blade Guard (Dust Collection) Port Diameter | 1-11/16in Outside, 1-3/8in Inside |
| Power Source | Cordless |
