| SKU:
3120-21

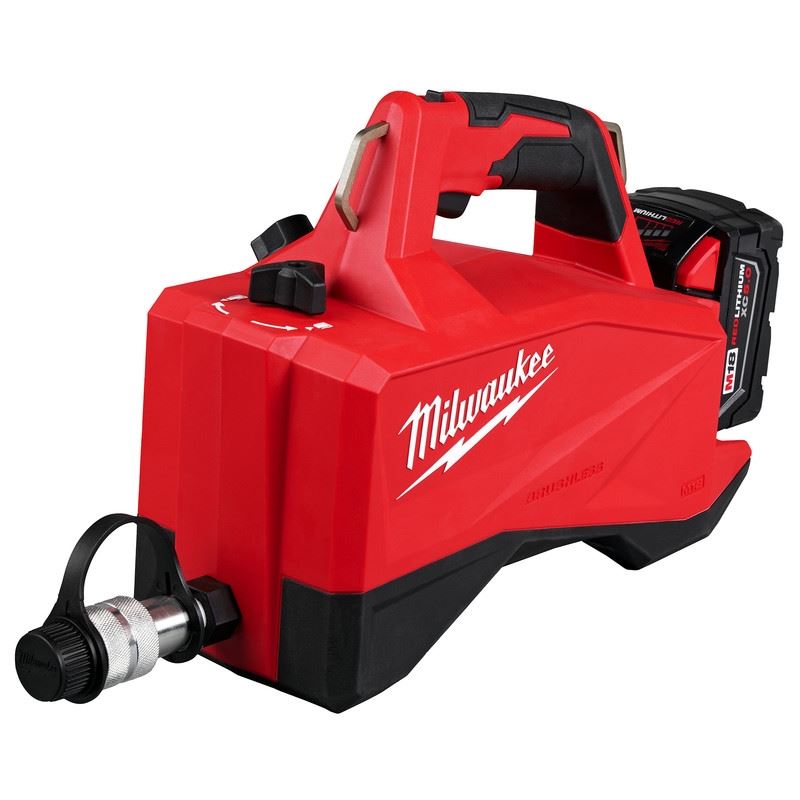

Milwaukee 3120-21 M18 Brushless Single Acting 60in3 10,000psi Hydraulic Pump
Earn [points_amount] when you buy this item.
Milwaukee 3120-21 M18 Brushless Single Acting 60in3 10,000psi Hydraulic Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

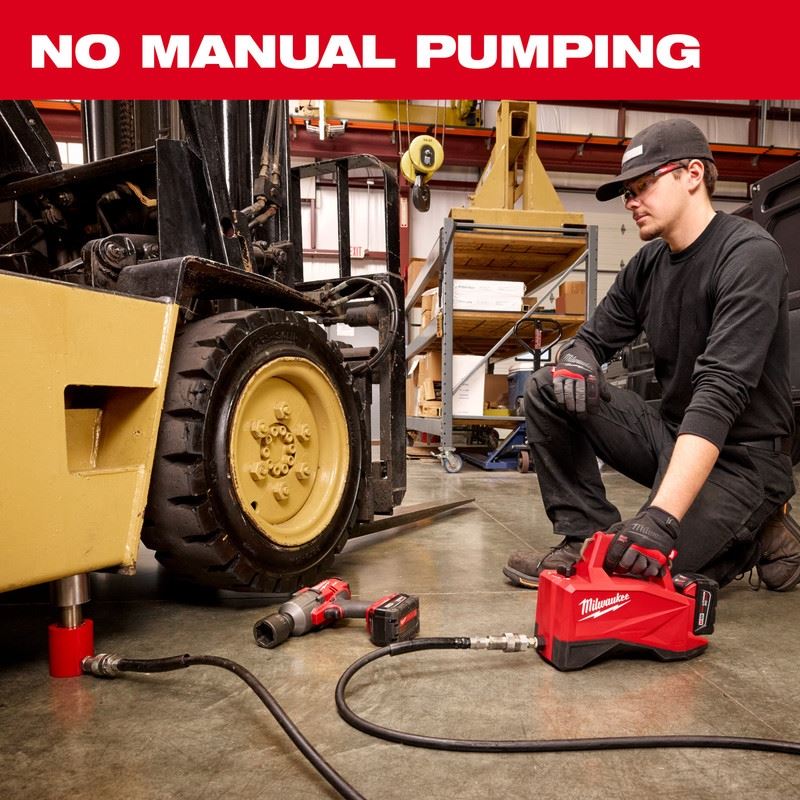

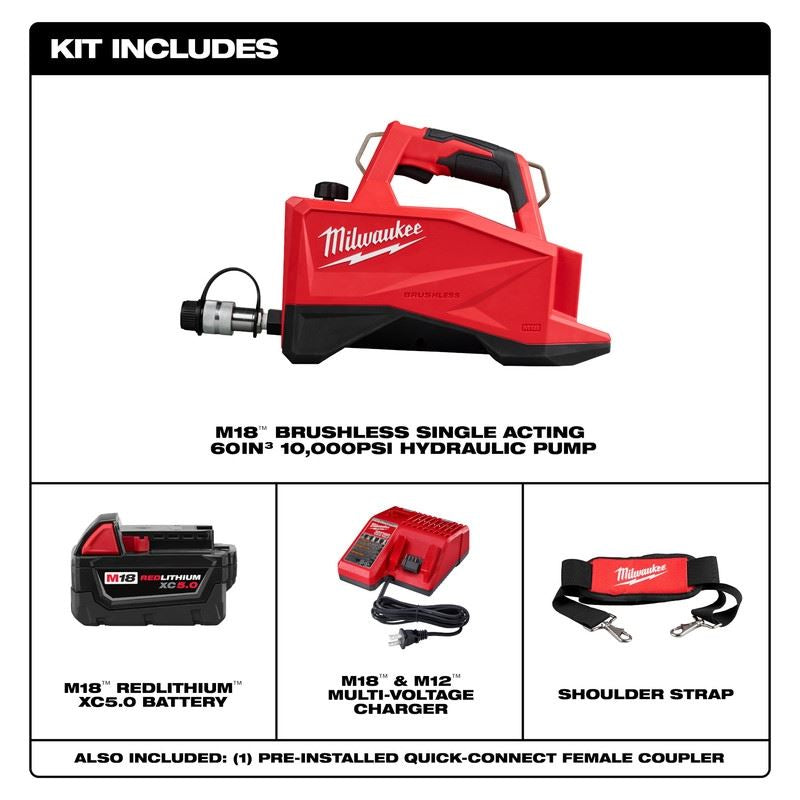

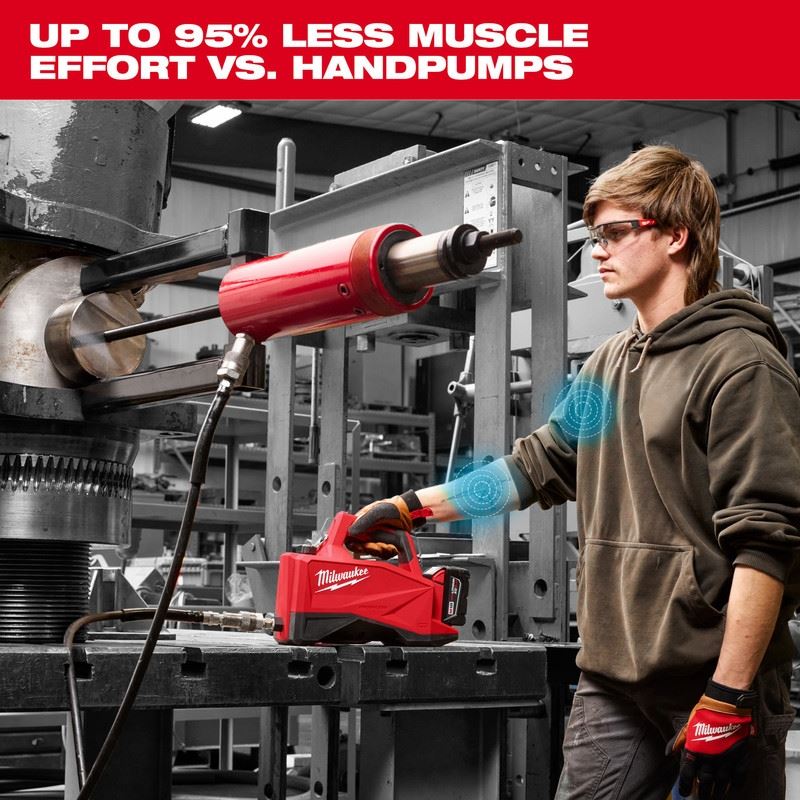

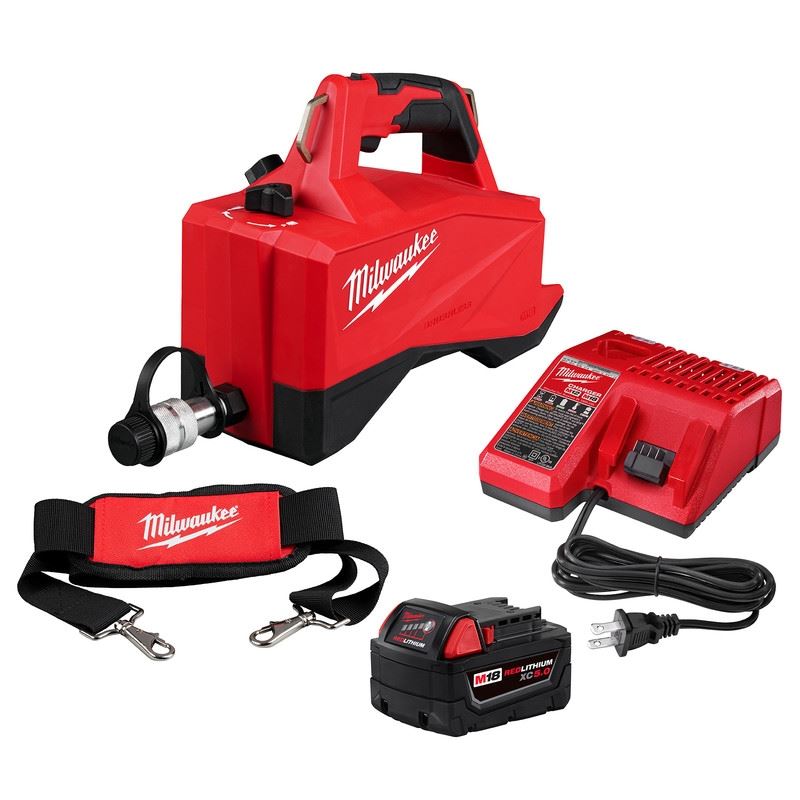

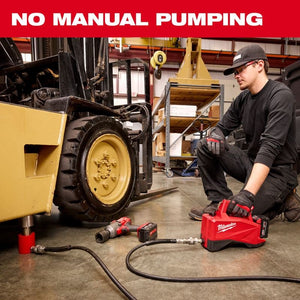

The MILWAUKEE M18 Brushless Single Acting 60in3 10,000psi Hydraulic Pump eliminates manual pumping, delivering up to 2.5X faster application speeds. By eliminating the need to manually pump, this solution vastly reduces fatigue, with up to 95 percent less muscle effort vs. hand pumps, delivering increased productivity and faster applications. The single-acting pump features 60in3 of usable oil to fully extend a wide variety of small tools and cylinders to full stroke. The single-acting hydraulic pump is designed to be fully compatible with all existing 10,000psi single-acting rated hydraulic hoses and cylinders. A manual valve allows precise control over return flow, while a bladder window allows you to quickly gauge fluid levels. At 12.6lbs, this compact pump is highly portable and allows easy transport to your application. A trigger lock-out helps prevent unwanted tool activation in transport, set up, and tear down. The kit includes (1) M18 XC 5.0 REDLITHIUM Battery, an M18 and M12 Multi-Voltage Charger, a Shoulder Strap, and a 3/8in NPTF Female Quick Connect Cone Poppet Coupler (installed on the tool).features:

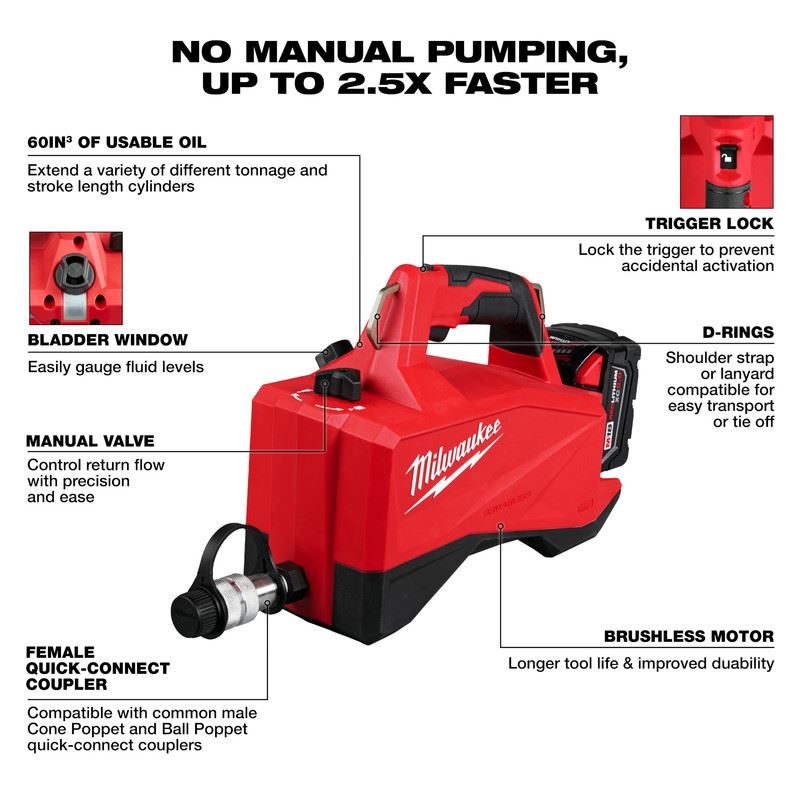

Compatible with all 10,000psi rated single acting hydraulic hoses, cylinders, and tools
60in3 of usable oil allows you to fully extend a wide variety of small cylinders and tools to full stroke

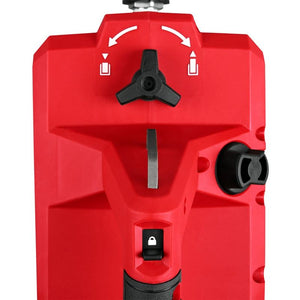

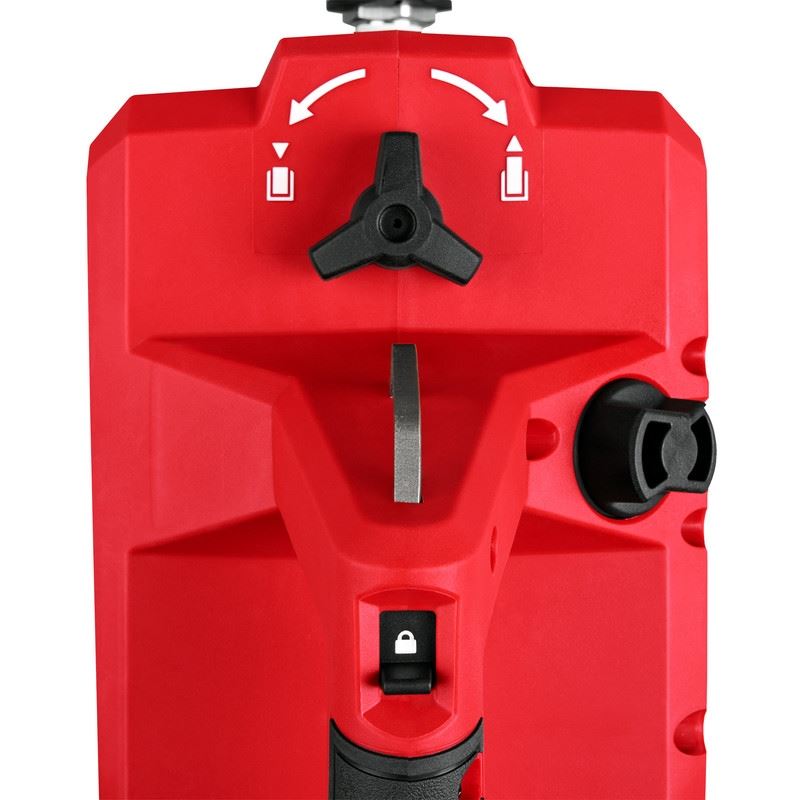

Manual Valve - Control return flow with precision and ease

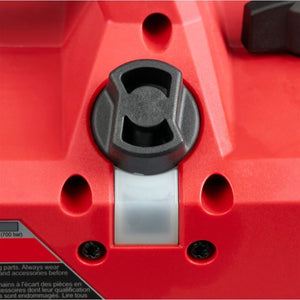

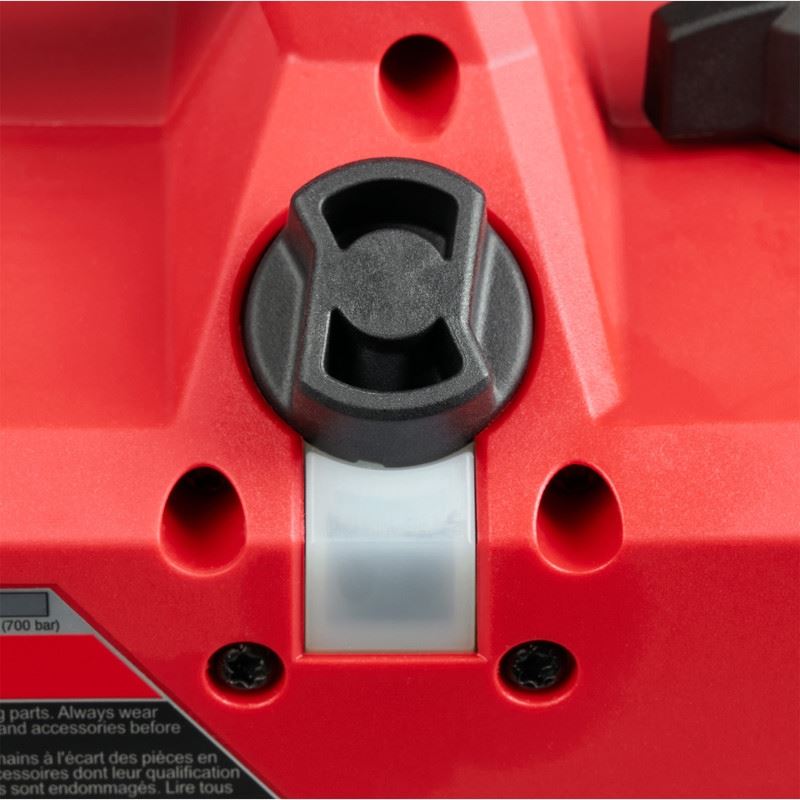

Bladder Window - Quickly gauge fluid levels

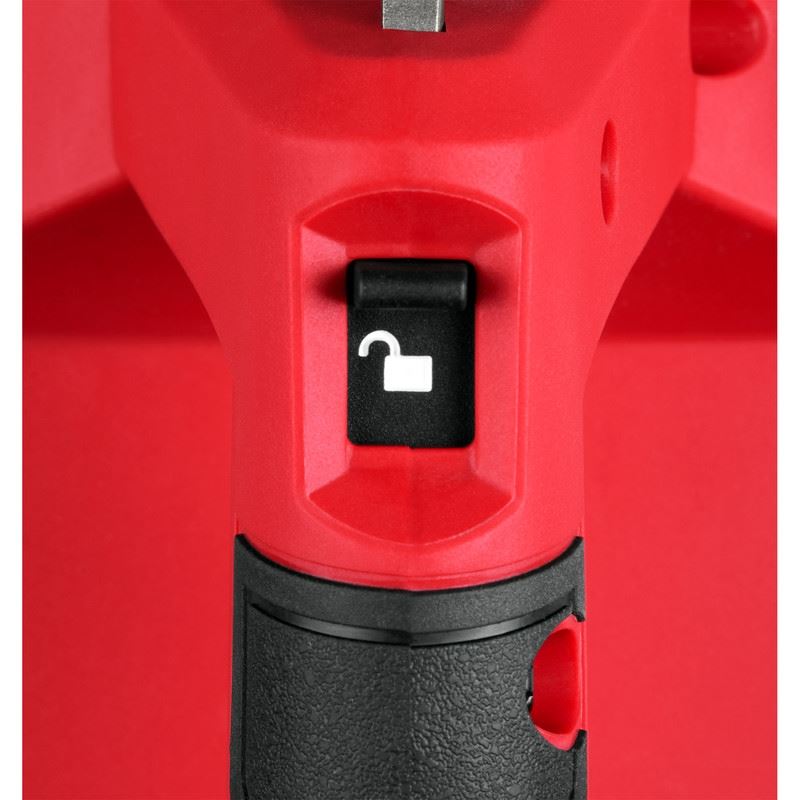

Trigger Lock Out - Prevent unwanted tool activation in transport, set up, and tear down

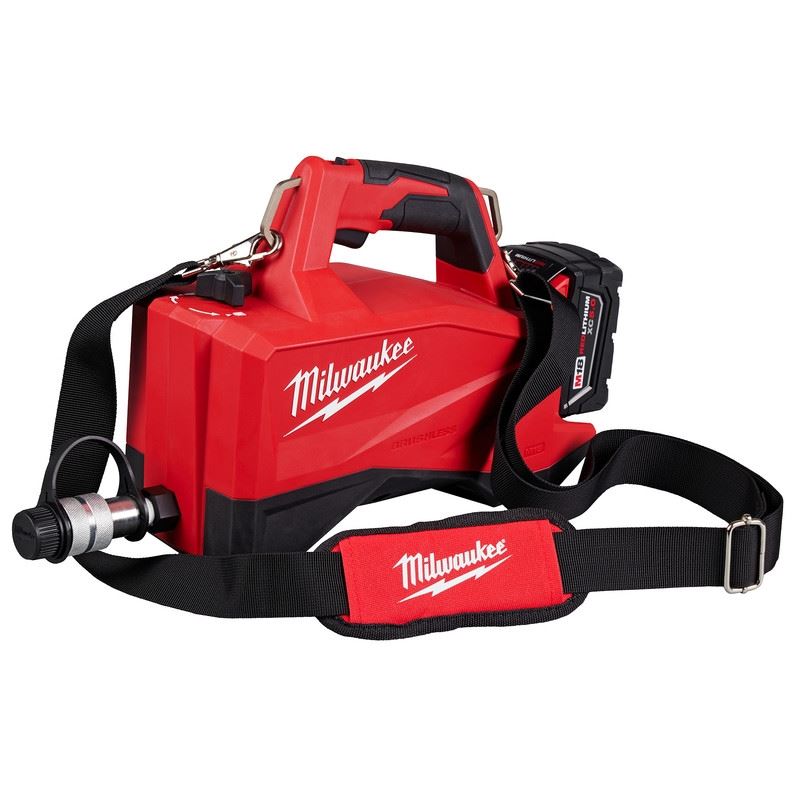

Integrated D-Rings to easily tie-off with a lanyard at height; leverage the included shoulder strap for easier transport, and to keep the pump close for those hard-to-reach applications
Compact and light weight design at only 12.6 lbs (with M18 XC 5.0)
Female Quick Connect Cone Poppet Coupler - Compatible with common cone poppet and ball poppet male quick-connect couplers
Brushless Motor provides improved durability
Compatible with all M18 batteries and chargers~
Specifications
| Power Source | Cordless |
|---|---|
| Maximum Hydraulic Pressure Rating (psi) | 10000 |
| Hydraulic Fluid Capacity (gal) | 0.25 |
| Flow Control Settings | Fully Adjustable |
| Output Flow Rate - no load (in/min) | 18 |
| Output Flow Rate @ 9500 PSI (in/min) | 10 |
| Oil Type | Hydraulic Oil |
| Number of Batteries Included | 1 |
| Number of Batteries Required | 1 |
| Battery Voltage (V) | 18 |
| Charger Included | Yes |
| Length (in) | 18.0 |
| Width (in) | 5.4 |
| Height (in) | 9.5 |
| Overall Weight (lbs) | 12.6 |
