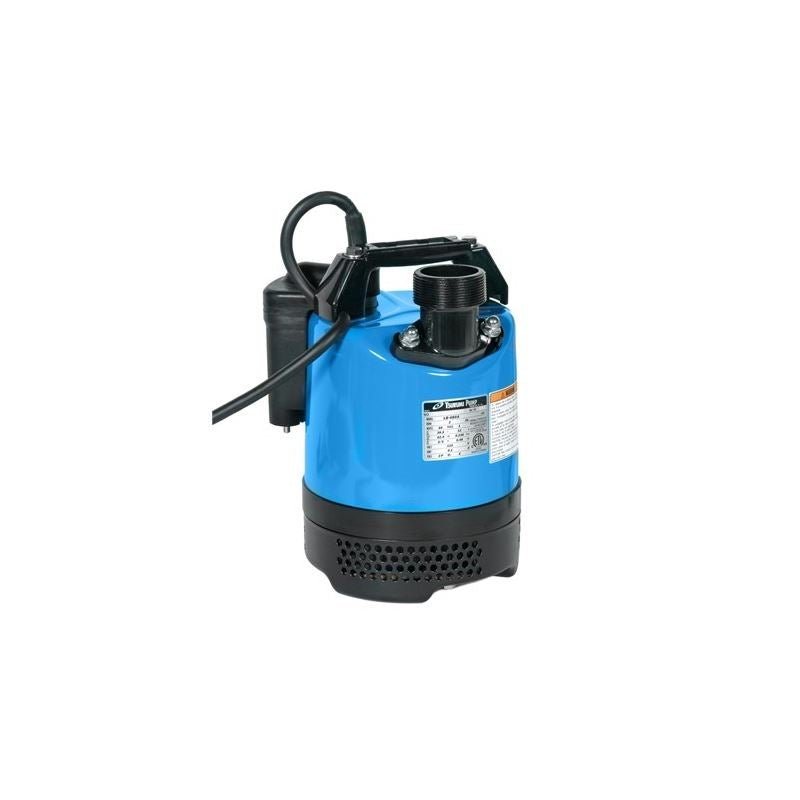

Tsurumi LB-480A Electric Submersible Pump
Earn [points_amount] when you buy this item.
Tsurumi LB-480A Electric Submersible Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
LB-480A Automatic Submersible Pump performs like the non-automatic version in every aspect of construction site usage requiring a tough and durable pump
Technical Specifications
Motor Output (HP): 2/3
Phase: Single
Discharge Bore (in.): 2
Voltage/Amp: 110/6.1
Cable Length (ft.): 32
Dimension (Dia x H, in.): 8-3/4 x 11-1/4
Continuous Running Water Level (in.): 4.5
Pump Weight (lbs.): 30
features:
-No control panel or float switches required.
-Performs like the non-automatic pump with no special float installation required.
-Requires very small space to operate - only 8 3/4" diameter.
-Urethane, Semi Vortex Impeller and Wear Plates for maximum durability with maintaining pump performance.
-Oil Lifter provides lubrication of the seal faces. (Patented)
-V-Ring Seal Protector designs mechanical seal from abrasive particles.
-Environmentally friendly, reducing electrical costs and operational noise. (Technical Features of EL Relay Unit (Level Sensor))
-Sensitive electrodes detect water to start pump operation even when foreign materials are present. - Internal timer eliminates frequent on/off operation in rough water to extend motor life.
-Relay sensor completely molded in resin and covered by rubber case for protection against rough handling.
-Jobsite tested for more than 30,000 on-off cycles without failure or damage
Specifications
| Power Source | Electric |
|---|
Tsurumi LB-480A Electric Submersible Pump
LB-480A Automatic Submersible Pump performs like the non-automatic version in every aspect of construction site usage requiring a tough and durable pump
Technical Specifications
Motor Output (HP): 2/3
Phase: Single
Discharge Bore (in.): 2
Voltage/Amp: 110/6.1
Cable Length (ft.): 32
Dimension (Dia x H, in.): 8-3/4 x 11-1/4
Continuous Running Water Level (in.): 4.5
Pump Weight (lbs.): 30
