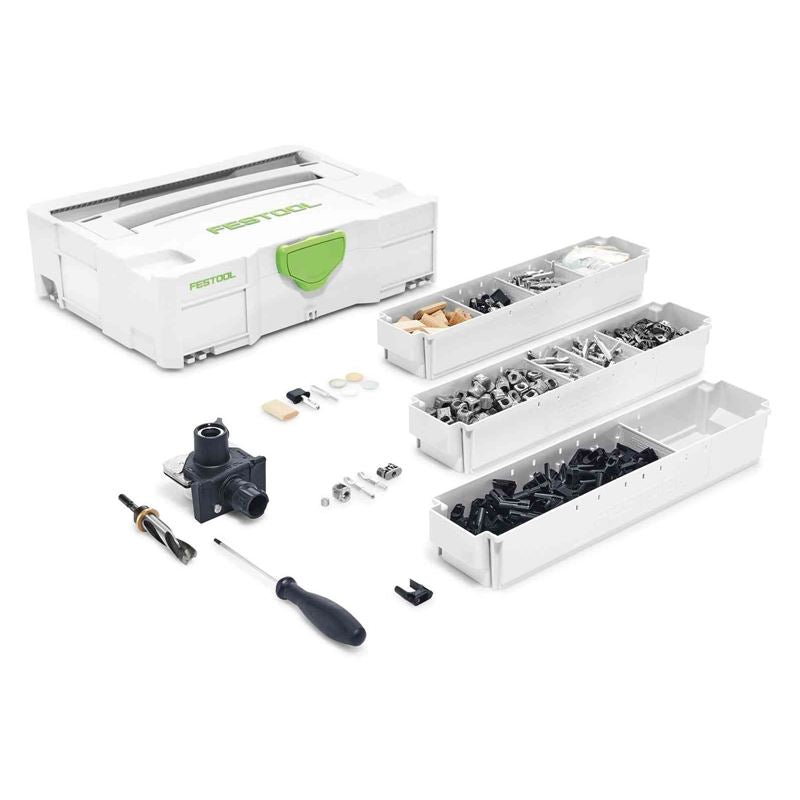

FESTOOL 203170 DOMINO connector range KV-SYS D8
Earn [points_amount] when you buy this item.
FESTOOL 203170 DOMINO connector range KV-SYS D8 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Description
The new DOMINO connectors make knock-down joinery simple and stable. Quickly and easily assemble, separate, and reassemble your work for increased flexibility across a wide range of applications - from corner panel joints to center panel joints to joints between a series of holes. For increased stability, speed, and flexibility.
Finished in just three steps
With only two DOMINO routed holes and one drilled hole, the corner joint is produced quickly and without additional measurements.
Everything like usual
The center panel joint is produced in the same way as a corner joint. The only difference is that a through hole is made in the center panel with the DOMINO jointer DF 500. The connector is inserted through this hole and the bases of the two structures can then be attached in the usual way.
The fast joint
The new DOMINO basic structure connectors enable a flexible connection between a series of 32 holes and the base of a structure. The fixture is turned directly into the 5 mm hole in the series of holes and anchored in the base of the structure using a DOMINO routed hole. For simple, fast, and precise work.
Includes:
70x DOMINO/DOMINO KV D8 basic structure connector
20x DOMINO/LR32 KV-LR32 D8 basic structure connector
10x DOMINO/DOMINO MSV D8 center panel connector
10x DOMINO/LR32 MSV-LR32 D8 center panel connector
50 dark brown cover caps (KV-AK D15 brown), 50 silver cover caps (KV-AK D15 sliver), 50 white cover caps (KV-AK D15 white), 50 grey cover caps (KV-AK D15 grey), 20x DOMINO D 8 x 36 mm
BS-KV D15 drill template
KVB-HW D15 CE hinge location cutter
Screwdriver
SYSTAINER SYS 1 T-LOC
features:
The new DOMINO basic structure connectors and furniture connectors can be positioned simply and universally - in combination with DOMINO or a series of holes.
Because of its high tolerance compensation and high stability, the detachable DOMINO jointing system enables seamless assembly and disassembly of a piece of furniture - in the workshop as well as with the customer.
All joints are simple and quick to machine using the DOMINO DF 500 joiner. No additional special machine is required.
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture.
The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly.
