Stabila  |  SKU : LA180L  |  Code-barres: 089634021803

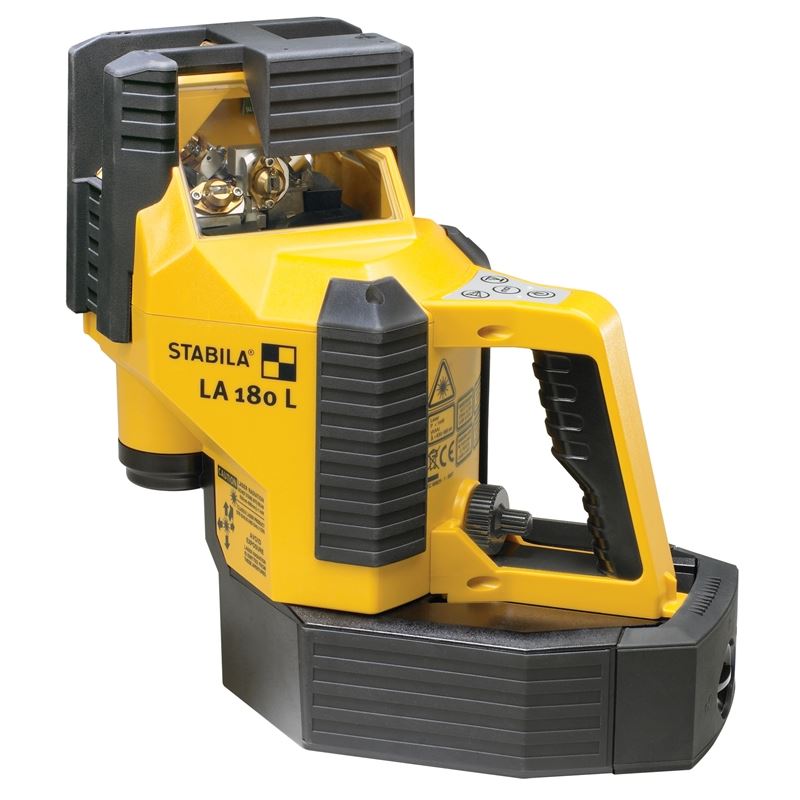

Stabila LA180L Layout Station with Auto Alignment

$2,400.00 CAD
Frais de livraison calculés lors du paiement.

Earn [points_amount] when you buy this item.


Description

LA180L Layout Station with Automatic Alignment

Catalog #
02180
Self Leveling Range
± 5°
Working Range
Visual 65'/328' with receiver
Accuracy Tolerance Level
+/- 3/32" @ 100'
Accuracy Tolerance Up/Down Beams
+/- 3/32" @ 100'
Battery Run Time
20 Hours
Batteries
4-D
Laser class
2
Output
<1mW
Laser wavelength
635nm
Dimensions
10.5"X10.25"X6"
Tripod mount
5/8"X11
#02180 Includes:
LA180L laser, 2 target plates, transceiver w/bracket, batteries, laser goggles, manual and case


features:

-Industry first laser "transceiver" transmits it's location to the to the laser via radio frequency, signaling the laser to automatically pivot on "Point A" to find "Point B". As soon as this connection is established, the laser locks into position and the transceiver automatically switches to receive mode, allowing you to pick it up and move it around the work site as a standard laser receiver

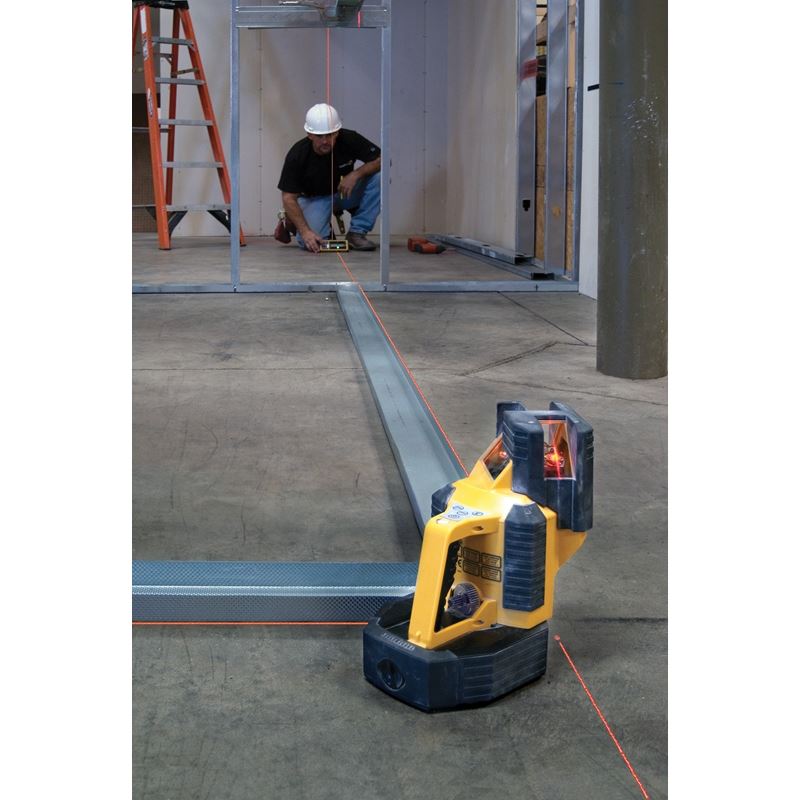

-Layout lines can be quickly established and transferred by just one person
-Plumb points, horizontal beam and three adjustable perpendicular vertical beams
-Full plane vertical beams cover floors, walls and ceilings
-Bright, crisp lines visible to 65', or 328' with included receiver
-Slide out battery drawer allows battery change without disturbing the laser's reference position
-Servo motor controlled self leveling

.

Specifications

Power SourceCordless
Product TypeLine Lasers
Laser ColorRed
