| SKU :
MILESCRAFT-1318

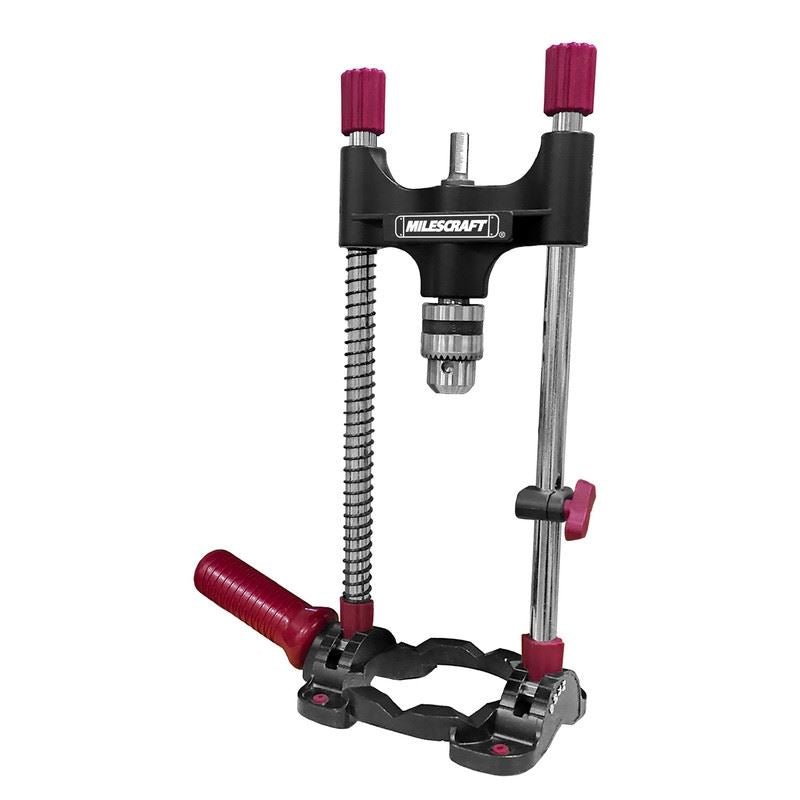

MILESCRAFT 1318 DrillMate Portable Drill Guide
Earn [points_amount] when you buy this item.
MILESCRAFT 1318 DrillMate Portable Drill Guide est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Description

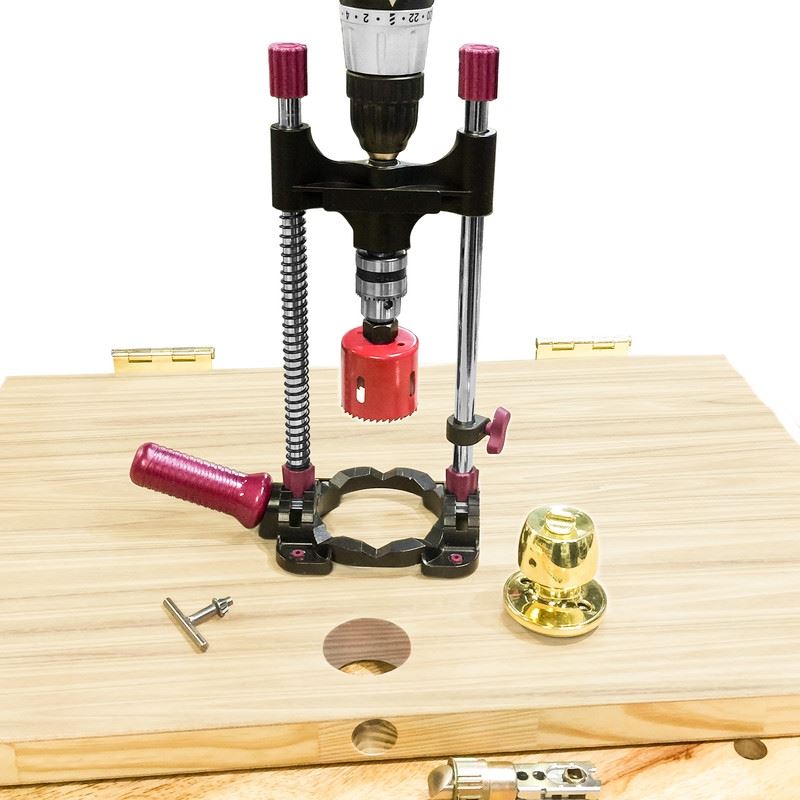

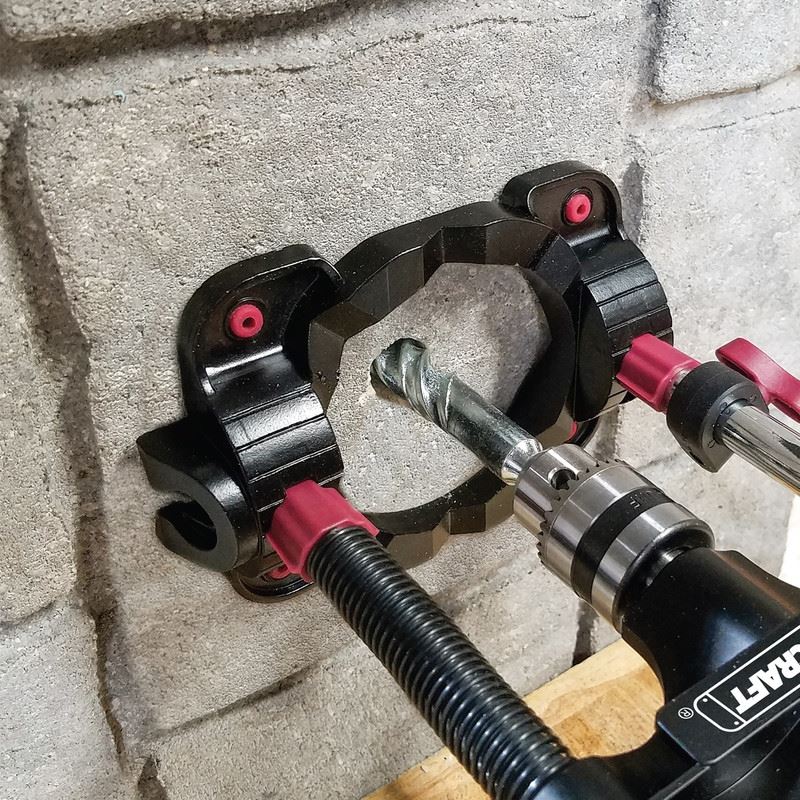

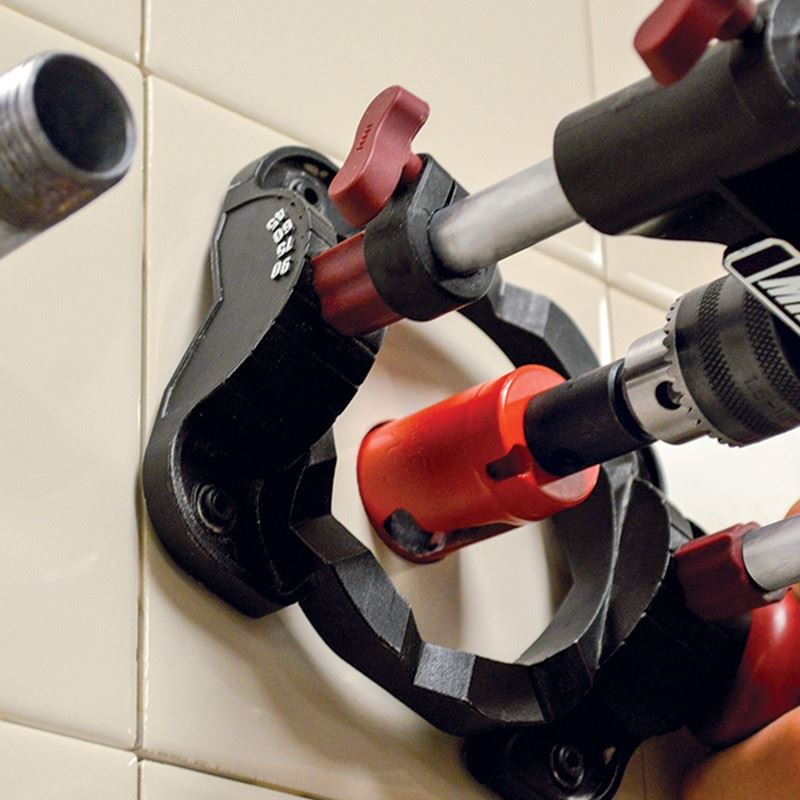

You cant take a drill press with you everywhere you go, but you can take a Milescraft DrillMate. This portable drill guide makes it quick and easy to drill precise holes at multiple angles. The DrillMate saves time and eliminates frustration when drilling multiple holes in all types and shapes of stock.
features:
Self-centering drill guide base
Angle readout for setting drilling angles to 45 Degrees, 60 Degrees, 75 Degrees, and 90 Degrees
V-groove for drilling on round stock
Non-slip TPE feet prevent slipping and marring on the work surface
Mounting holes for mounting with screws when needed
Metal Angle Adjusters - Allows you to easily lock your selected drilling angle into place
Adjustable Stop Collar - For repetitive drilling
3/8 in Keyed Chuck - Compatible with most 3/8 in drill accessories
Auxiliary Handle - Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing
Specifications
| Material | Metal and plastic |
|---|---|
| Chuck | 3/8in Keyed |
| Drill Bit ClearanceAlways Maximum | 7.50in |
| Drill Head Clearance without Spring and Depth Stop | Max Travel |
| Minimum Drill Bit Clearance | 0.72in |
| Base Opening | 3-1/2in in diameter |
| Compatible with | 3/8 in and 1/2 in power drills |
| Spindle Shaft Diameter | .47in (12mm) |
| 3/8in Chuck Thread | 3/8in x 24 thread |
| Spindle Shaft Length | 3.66in (93mm) |
| Drill Head Clearance with Spring and Depth Stop | Max Travel |
| Minimum Drill Bit Length | 1.20in |
| Base Dimension | 5.5in (140mm) x 4.25in (108mm) |
| Guide Bar Diameter | .55in (14mm) |
| Inside Distance Between Guide Bars | 3.98in (101.2mm) |
MILESCRAFT 1318 DrillMate Portable Drill Guide
You cant take a drill press with you everywhere you go, but you can take a Milescraft DrillMate. This portable drill guide makes it quick and easy to drill precise holes at multiple angles. The DrillMate saves time and eliminates frustration when drilling multiple holes in all types and shapes of stock.
