MILESCRAFT 1325 PocketJig200 POCKET HOLE JIG KIT
Earn [points_amount] when you buy this item.
MILESCRAFT 1325 PocketJig200 POCKET HOLE JIG KIT est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Description

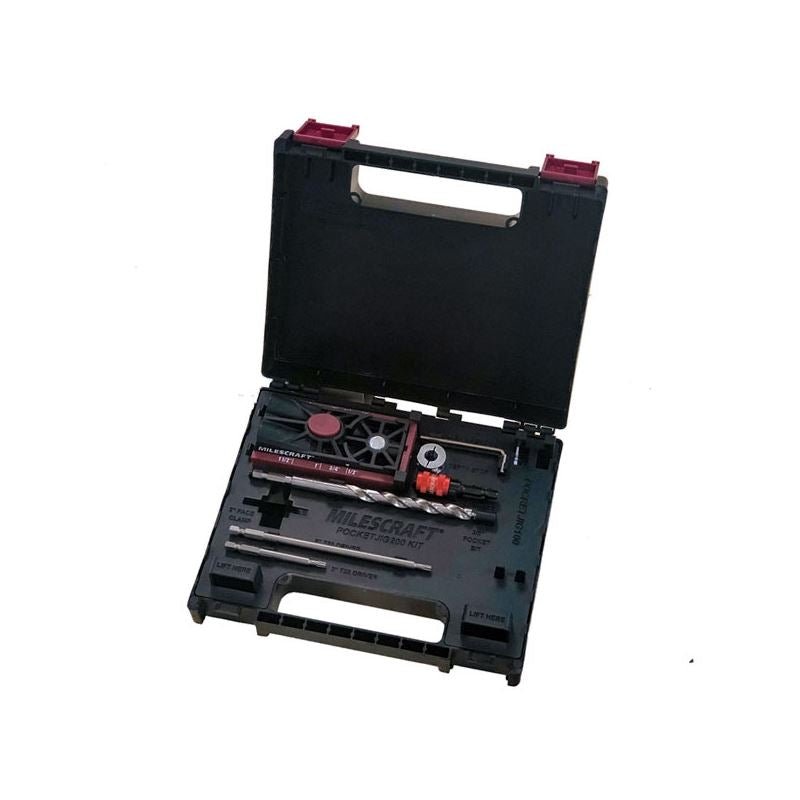

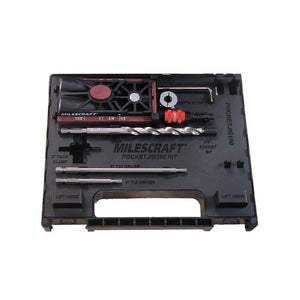

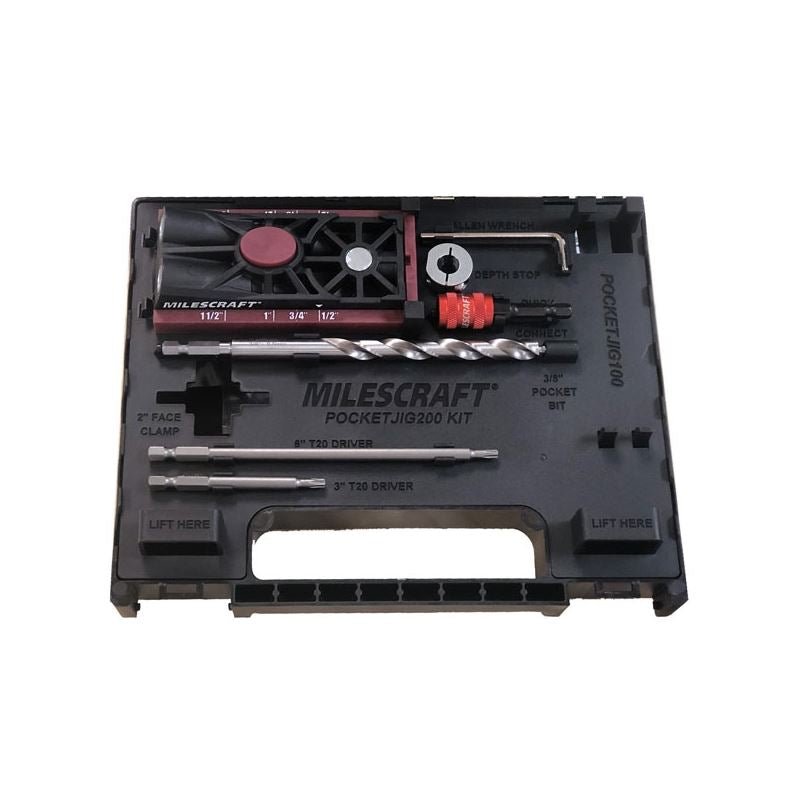

The Milescraft PocketJig200 allows you to connect your workpieces quickly with strong and accurate pocket hole joints. Create corner joints, edge joints, T-joints, framing joints, miter joints, and make repairs. With built-in settings for different board thicknesses, just set this pocket jig to your desired setting, set the depth of your bit, and start drilling. This complete kit in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.
INCLUDES:

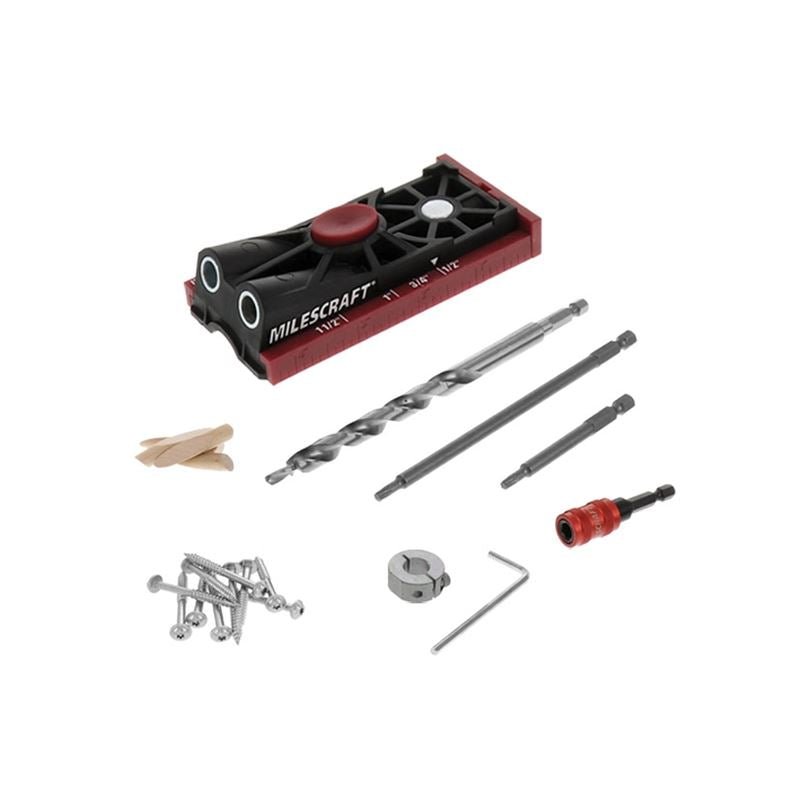

Double Barrel Pocket Hole Jig, Quick Connect, 3in & 6in T-Star Driver Bits, 3/8in PocketBit, 60 Piece T20 Pocket Hole Screws, Pocket Plugs, 3/8in Split Design Stop Collar with Hex Key and Instruction Manual
features:

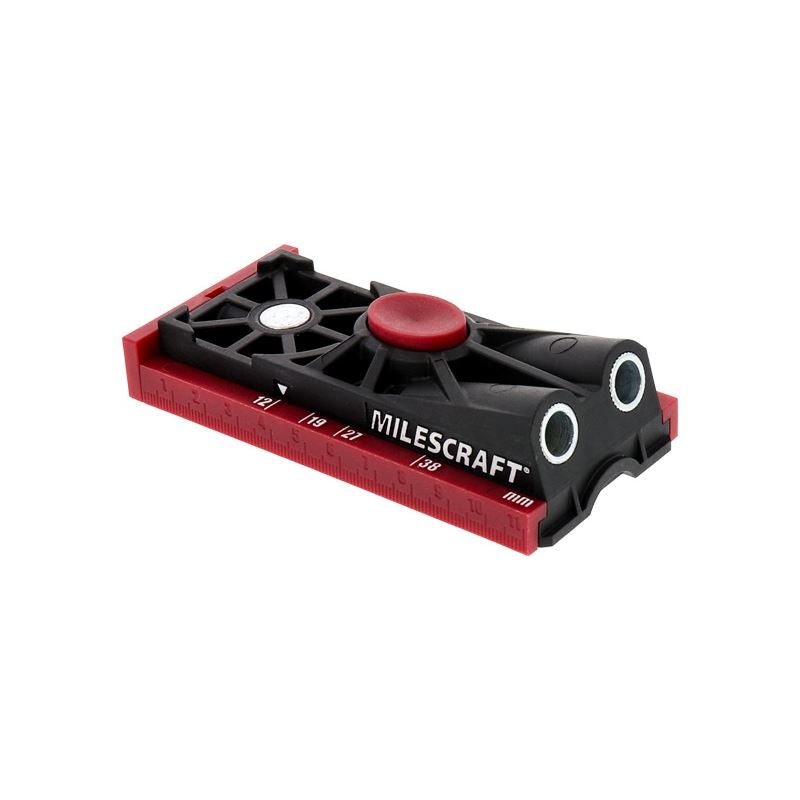

Built-In Imperial And Metric Scales
The built-in scales allow you to easily measure the thickness of your workpiece
Board Thickness Settings - There are four common board thickness settings built into the pocket jig: 1/2in, 3/4in, 1in and 1-1/2in (12, 19, 27, 38mm)
Easy readout arrow to help define your board thickness setting
Easily adjust to your board thickness setting with the single sled design and sled adjust button
Hardened Steel Drill Bushings - For precise and accurate pocket holes every time using the Milescraft PocketBit
Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try
With the stronger rare earth magnet, you can easily clamp the jig from one location to another
Easily set your bit for the correct drilling depth
Made from high-speed steel the PocketBit with a 1/4? hex shank is designed to reduce clogging and provide smooth and precise holes
Specifications
| Material | Reinforced Nylon |
|---|---|
| Drill Guide Bushing Spacing | 1in |
| Clamping Method | Works with any clamp |
| For use with | Wood Materials for 1/2in to 1.5 thick (12-38mm) |
| Drilling Angle | 15 Degrees |
| Screw and Driver Style | T20 Torx |
| Screws | 10 of each: 1 in (25mm), 1.25 in (32mm) coarse and fine, 1.5 in (38mm), 2 in (51mm), 2.5 in (64mm) |
| Drivers | 3in T20 Magnetic Head Driver and 6in T20 Magnetic Head Driver |
| Pocket Plugs | 10 plugs |
| Connector | Accepts all 1/4in hex bits |
| Drill Bit | 3/8in (9.5mm) HSS Pocket Bit with 1/4in shank |
MILESCRAFT 1325 PocketJig200 POCKET HOLE JIG KIT
The Milescraft PocketJig200 allows you to connect your workpieces quickly with strong and accurate pocket hole joints. Create corner joints, edge joints, T-joints, framing joints, miter joints, and make repairs. With built-in settings for different board thicknesses, just set this pocket jig to your desired setting, set the depth of your bit, and start drilling. This complete kit in a sturdy carrying case comes with all of the bits, drivers, screws and accessories needed to complete any pocket hole project.
