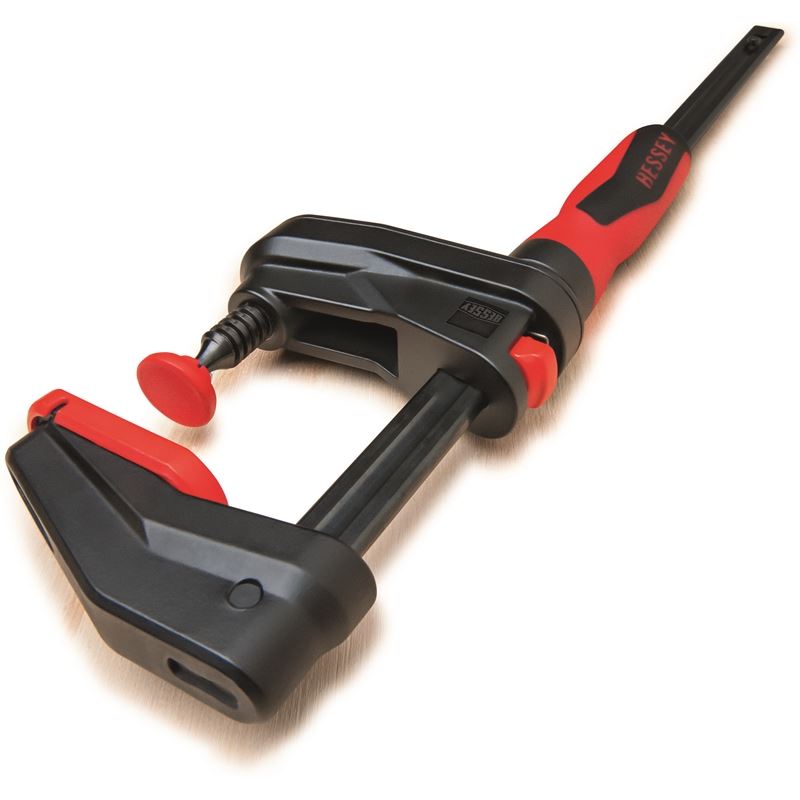

Bessey GK45 GearKlamp , 18 in
$34.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Earn [points_amount] when you buy this item.
Bessey GK45 GearKlamp , 18 in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

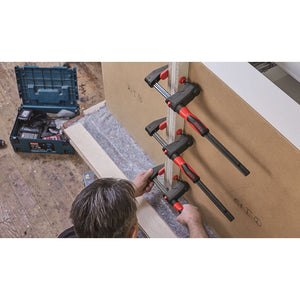

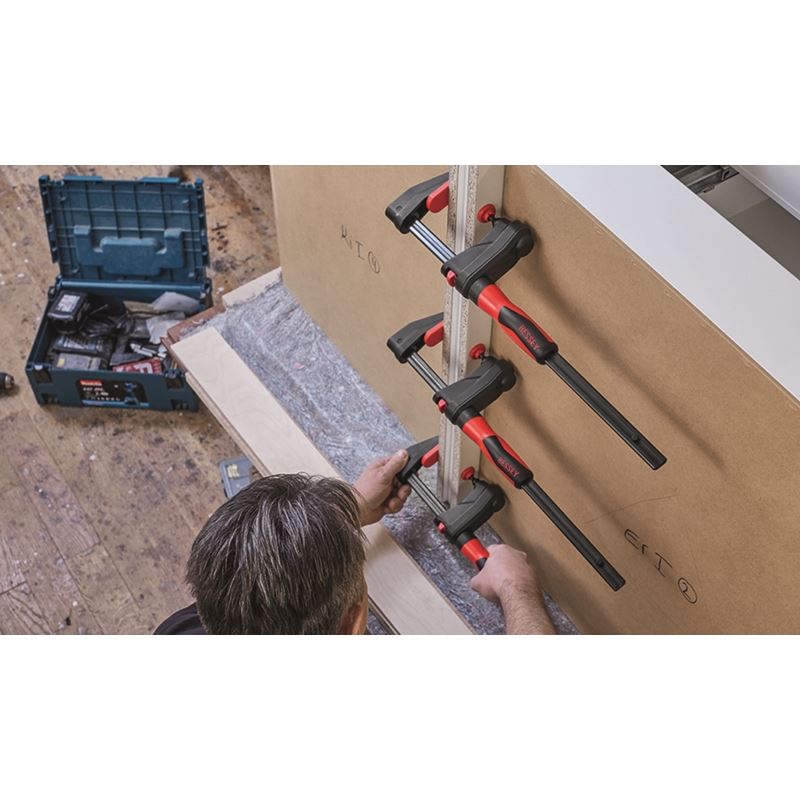

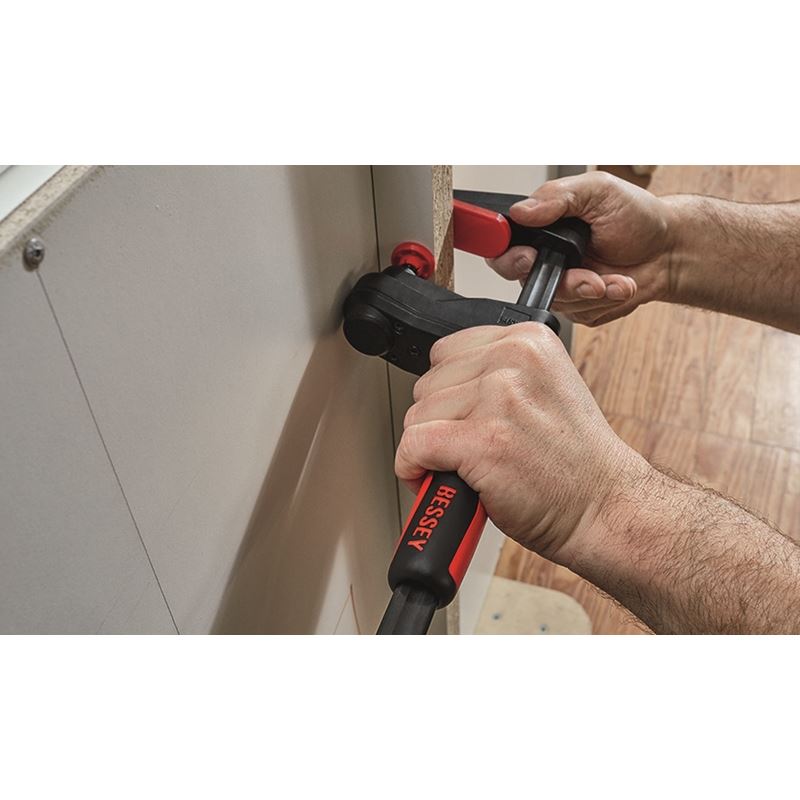

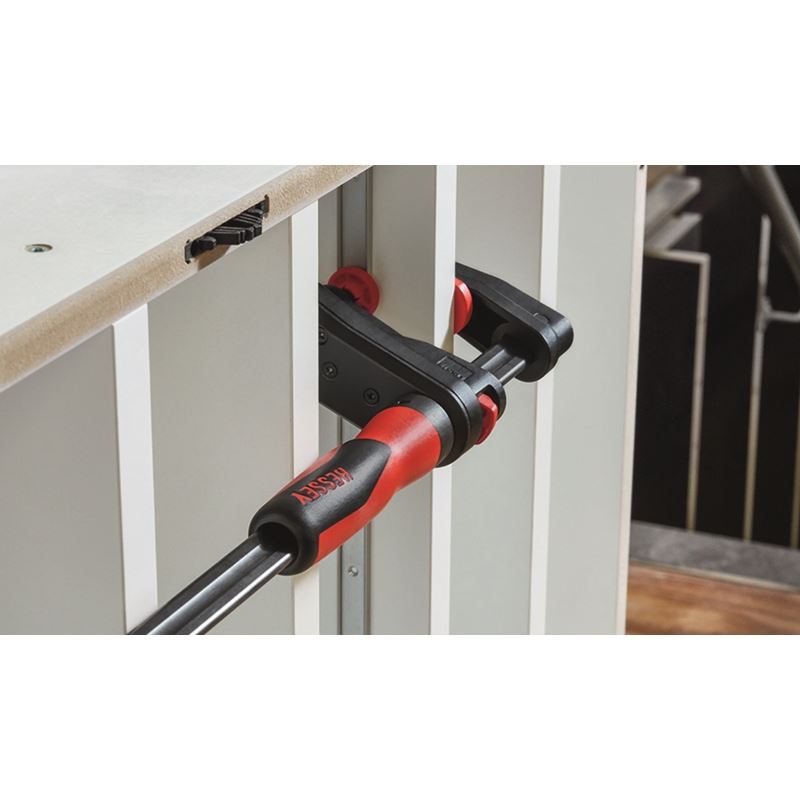

The first of its kind in the world, the BESSEY GearKlamp works BIG in small spaces to provide a unique clamping solution for cramped locations, up against another object or, when reaching across something to clamp. The patented gear mechanism separates the spindle from the handle for greater clearance and is fully enclosed to keep out dust and debris. A quick release shift button for fast set-up and a rotating rail-mounted handle for final pressure application makes using the clamp very intuitive. Available in 6, 12, 16 & 24 Inch capacities with 450 lbs of nominal clamping force!features:
Ergonomic handle drives the clamping spindle with gear train power

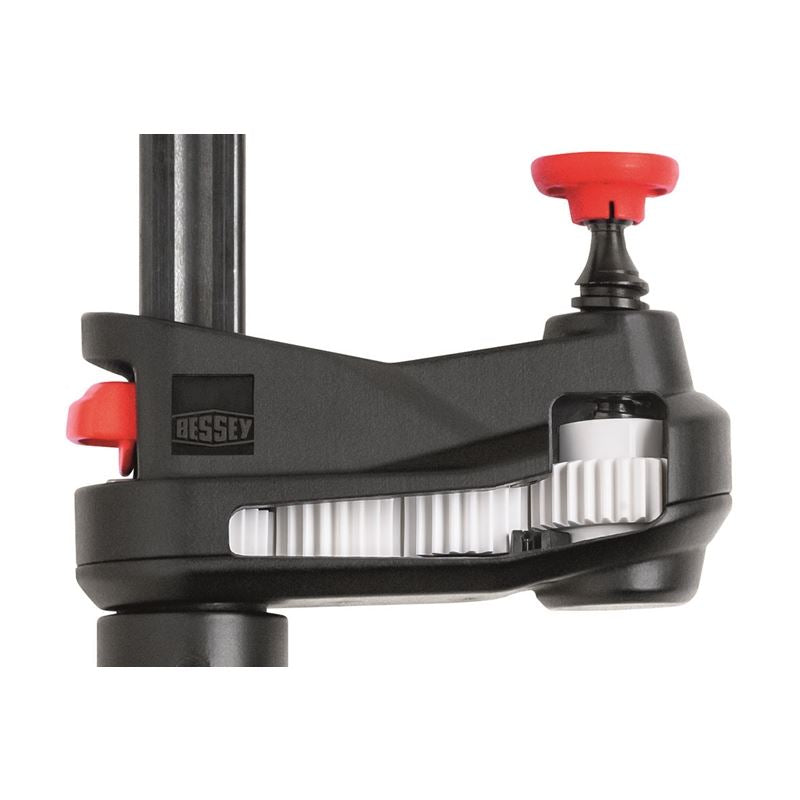

Fully enclosed gear train keeps out dust and debris
Hardened & tempered cold drawn steel rail
Durable molded reinforced clamping arms
Durable molded reinforced clamping arms
V-Grooved anvil for clamping round parts
Non-marring caps included
Fast action, secure clamping force up to 450 lbs
Quick release button for fast set-ups
Swivelling pressure pad self-aligns on clamped parts
Specifications
Specification##Jaw width | 1.17 in |
---|---|
Nominal Throat Depth | 2.375 in |
Clamping Force | 450 LBS |
Rail Dimensions | 3/4 x 1/4 in |
Spindle dia. | 0.553 in |
Handle length | 5 in |
Nominal Capacity | 18 in |
