| SKU:
GRL4000-80CHVK
Bosch 18v Rotary Laser with (1) CORE18V 4.0 Compact Battery
Bosch 18v Rotary Laser with (1) CORE18V 4.0 Compact Battery is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

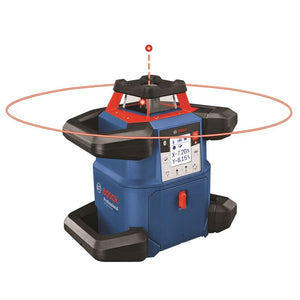

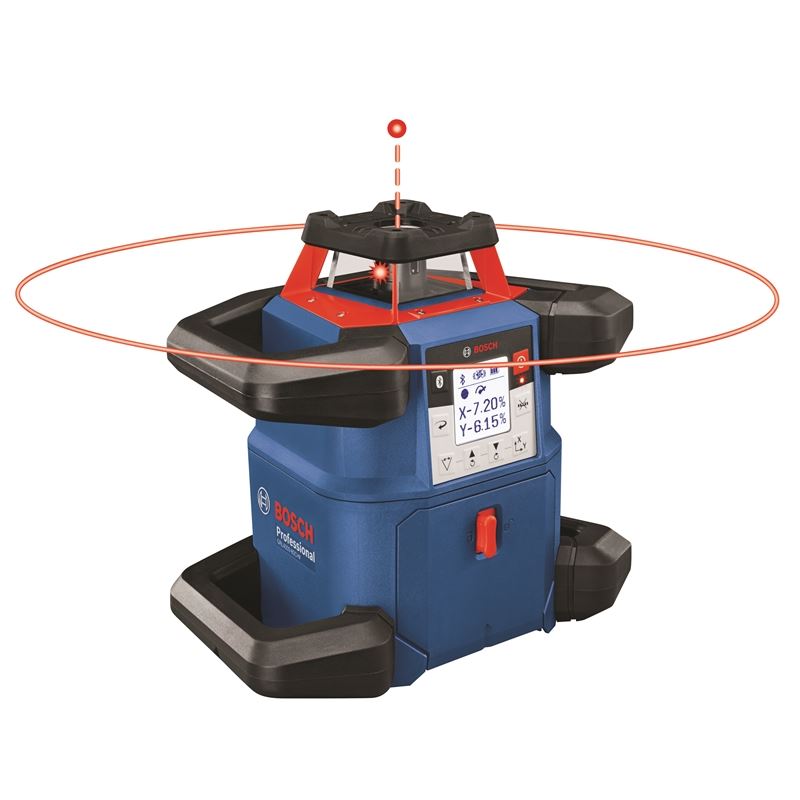

|Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit
|The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit has it all, with Dual Dial-In Slope, CORE18V Li-ion power, Bluetooth ® connectivity, user-calibration, and more. The Dual Dial-In Slope feature allows the user to adjust the slope angle on the laser on both the X and Y-axes. Powered by a Bosch CORE18V battery, providing extended runtime, the rotary laser has a cage overmold, an innovative handle design and is built to IP68 standards. The GRL4000-80CH laser has Bluetooth ® connectivity, uCAL user-calibration, an accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications, and a range of up to 4,000 Ft. with the LR40 laser receiver. The laser features a vertical beam at 90 ° point for layout, squaring and plumb applications. The comprehensive kit includes a remote control, CORE18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, tripod, grade rod and robust carrying case.
|Dual Dial-In Slope|
Dual Dial-In Slope allows the user to input and adjust the desired slope angle on the laser on both the X and Y-axes. The user can set the slope on both axes up to +/-8.5% using the tool interface or the free Bosch Leveling Remote App. This feature simplifies the grading process in applications such as drainage and runoff for trenches, ramps, roads, sewer systems and storm drains.
|18V Li-ion Battery Power|
The Bosch REVOLVE4000 is powered by the Bosch CORE18V battery, delivering extended runtime. This rotary laser is an addition to the Bosch 18V cordless power tool family powered by the CORE18V battery platform. The tool kit also includes an optional four (D) cell battery alkaline adapter to be used with the same interface as the Li-ion battery.
|Jobsite Durability|
The laser is engineered to withstand the toughest of jobsites. Built to IP68 dust- and water-protection standards, it features a rubber over-mold and an innovative handle design for ultimate protection against drops and other elements of the jobsite. The kit features a durable carrying case for easy and secure tool transportation.
|Bluetooth ® Connectivity and uCAL User-Calibration|
The REVOLVE4000 features Bluetooth ® capability to connect the rotary laser to the free Bosch Leveling Remote App. The app allows the user to control sleep mode, Dual Dial-In Slope, rotary speed, sweep mode, and more. The rotary laser also offers uCAL, or user-calibration, guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the job.
|What's in the box|

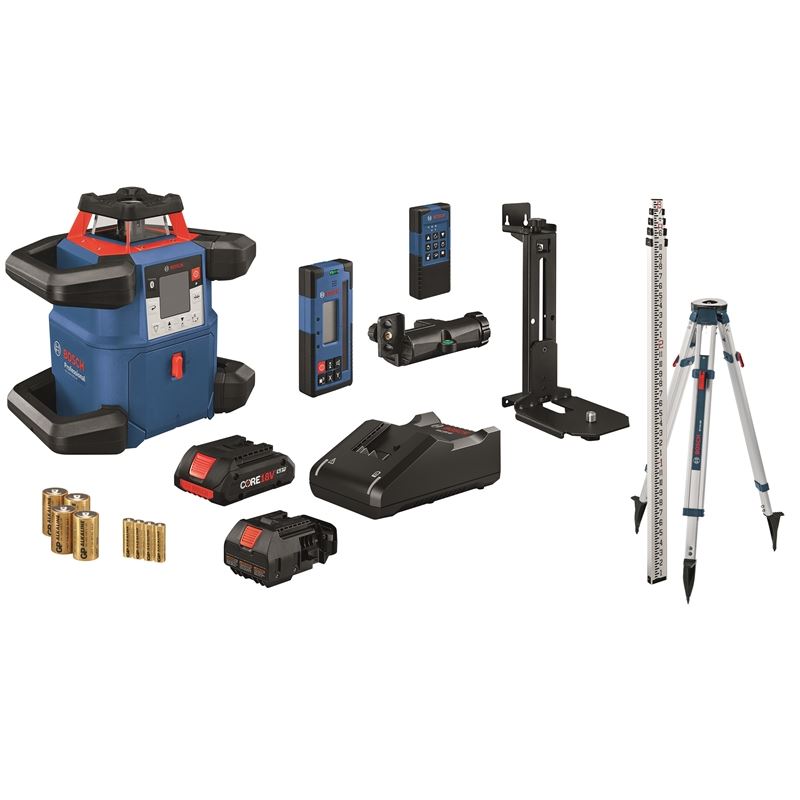

The Bosch REVOLVE4000 GRL4000-80CHVK rotary laser kit comes with an LR40 laser receiver with bracket, CORE18V 4.0 Ah Compact Battery, 18V battery charger, alkaline battery adapter, four D batteries, four AA batteries, BT170 tripod, grade rod, wall mount, RC5 remote control and carrying case.

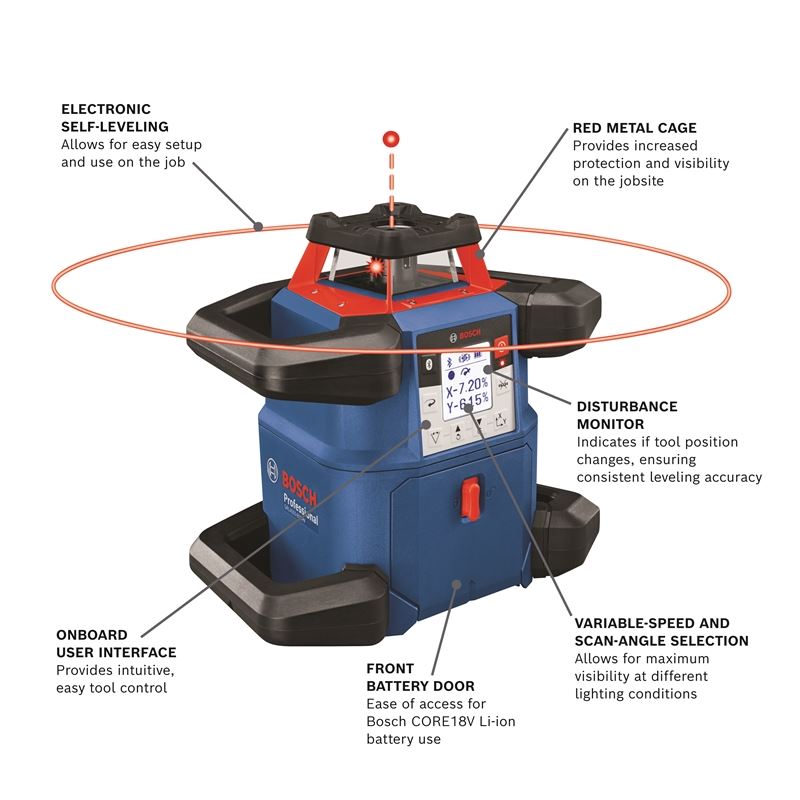

|Features include|
Fully featured rotary laser has Dual Dial-In Slope, CORE18V power, Bluetooth ® connectivity, uCAL user-calibration and more
Dual Dial-In Slope allows slope angle adjustment on both the X and Y axes
Dual Power Source for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
Durable design engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
Bluetooth connectivity connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
uCAL user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
Long working range range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to  ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
Vertical-beam functionality provides a vertical beam at 90 ° point for layout, squaring and plumb applications
Electronic self-leveling allows for easy setup and use on the job
Disturbance monitor indicates if tool position changes, ensuring consistent leveling accuracy
Variable-speed and scan-angle selection allows for maximum visibility at different lighting conditions
Comprehensive kit includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
features:
Fully featured rotary laser has Dual Dial-In Slope, CORE18V power, Bluetooth connectivity, uCAL user-calibration and more
Disturbance monitor indicates if tool position changes, ensuring consistent leveling accuracy
Variable-speed and scan-angle selection allows for maximum visibility at different lighting conditions
Comprehensive kit “ includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
Dual Dial-In Slope allows slope angle adjustment on both the X and Y axes
Dual Power Source for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
Durable design engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
Specifications
| Power Source | Cordless |
|---|---|
| Weight (lbs) | 8.2 |
| Length (in) | 12.8 |
| Height (in) | 11 in |
| Country of Origin | CN |
| Width (in) | 7.4 |
| Accurate to Within __ in per 100 ft | 0.0625 |
| Automatic Operation (en-US) | YES |
| Batteries Included (en-US) | YES |
| Battery Size (en-US) | 18 VOLT |
| Case Included (en-US) | YES |
| Indoor / Outdoor (en-US) | Indoor / Outdoor |
| Laser Level Functions (en-US) | Plumb & Level & Square |
| Laser Level Mounting Method (en-US) | Tripod |
| Laser Level Type (en-US) | Rotary |
| LED Display (en-US) | YES |
| Maximum Distance (ft) | 4000 |
| Number of Batteries Required | 1 |
| Projects Beam 360 degrees (en-US) | YES |
| Self Leveling (en-US) | YES |
| Tripod Included (en-US) | YES |
| Waterproof (en-US) | YES |
| Wireless Remote Control Included (en-US) | yes |
| Laser Color | Red |
| Product Type | Rotary Lasers |
