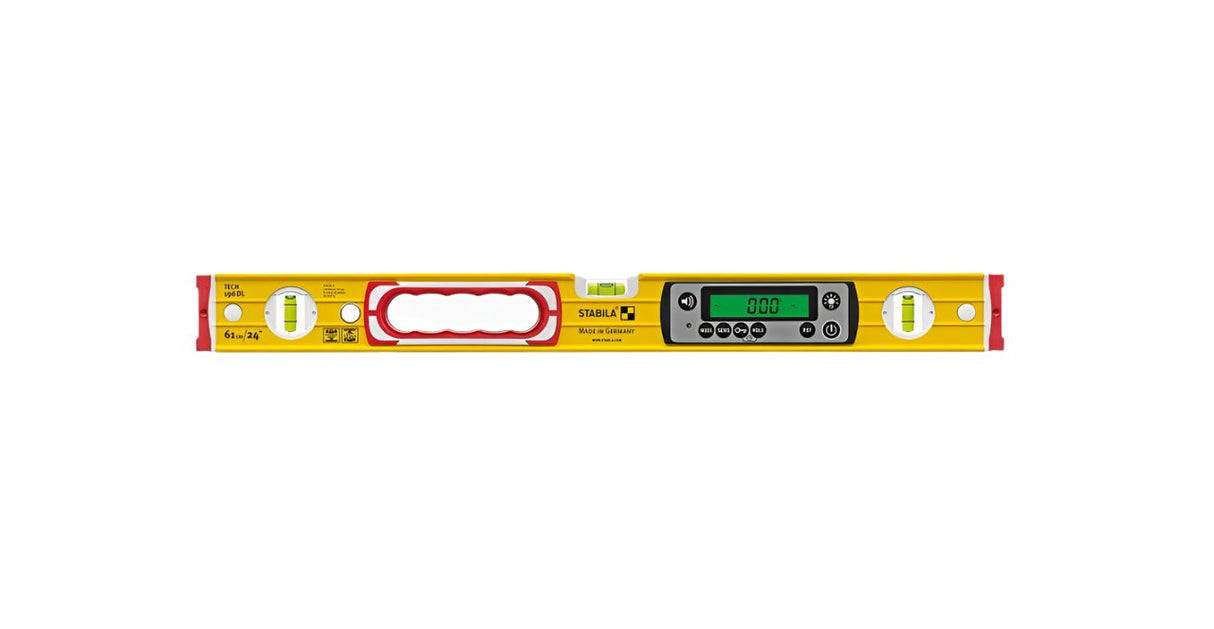

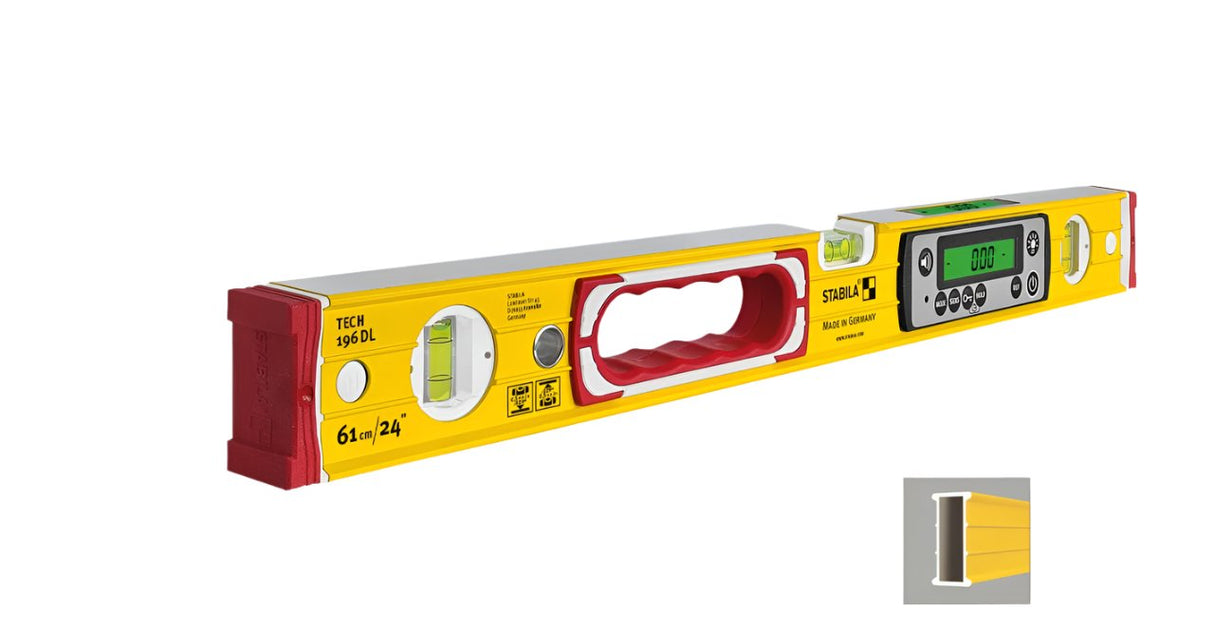

Stabila TECH 196 DL Digital Spirit Level
Earn [points_amount] when you buy this item.
Stabila TECH 196 DL Digital Spirit Level - 24" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.
features:
Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.
ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.

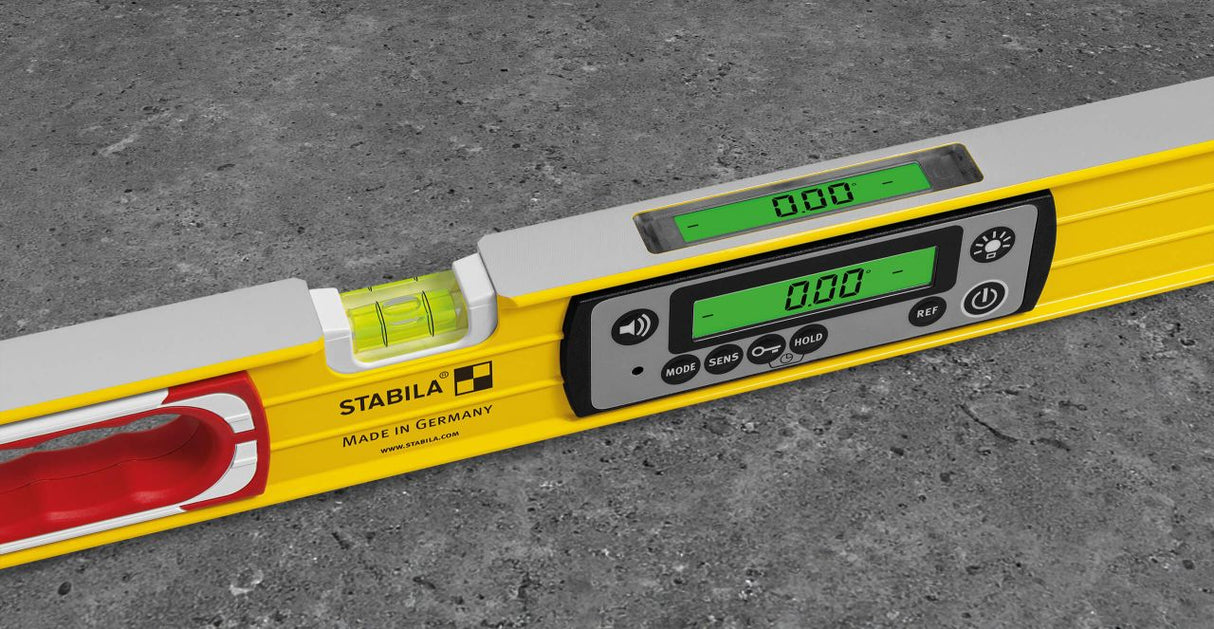

Optimal read-out: Two digital displays, illuminated at the press of a button.
Acoustic guidance: For quick alignment of elements without looking at the spirit level – with two different audible signals.
CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.
The digital display rotates to the reverse position.
REF-MODE: Take, save and transfer an angle measurement to other elements.
KEY-LOCK: Keyboard lock to prevent accidental input.
Display modes: °, %, mm/m, in/ft – decimal and as a fraction.
ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.
Long operating time: Up to 400 hours.
Includes bag for safe transport.
Specifications
| Measurement accuracy in normal position | ±1/32in @ 72in |
| Measurement accuracy in reverse position | ±1/32in @ 72in |
| Accuracy with electronic inclination measurement at 0° and 90° | +/-0.05° |
| Accuracy with electronic inclination measurement at 1° to 89° | +/-0.10° |
| Measuring modes | °, %, mm/m, inch/ft |
| Number of measuring surfaces | 2 |
| End caps | Removeable |
| Profile | Rectangular profile with ribs |
| Protection class | IP 67 |
Stabila TECH 196 DL Digital Spirit Level
Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.
